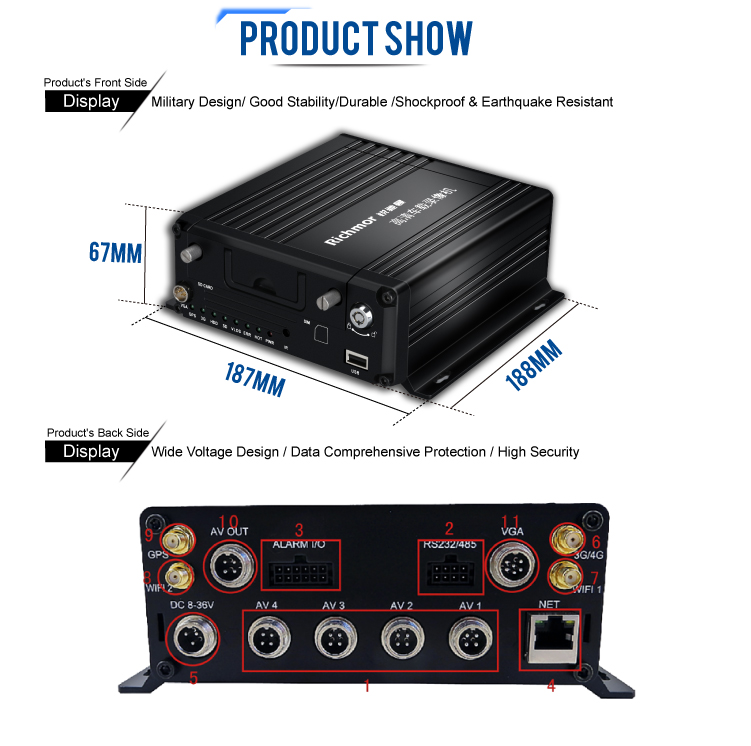

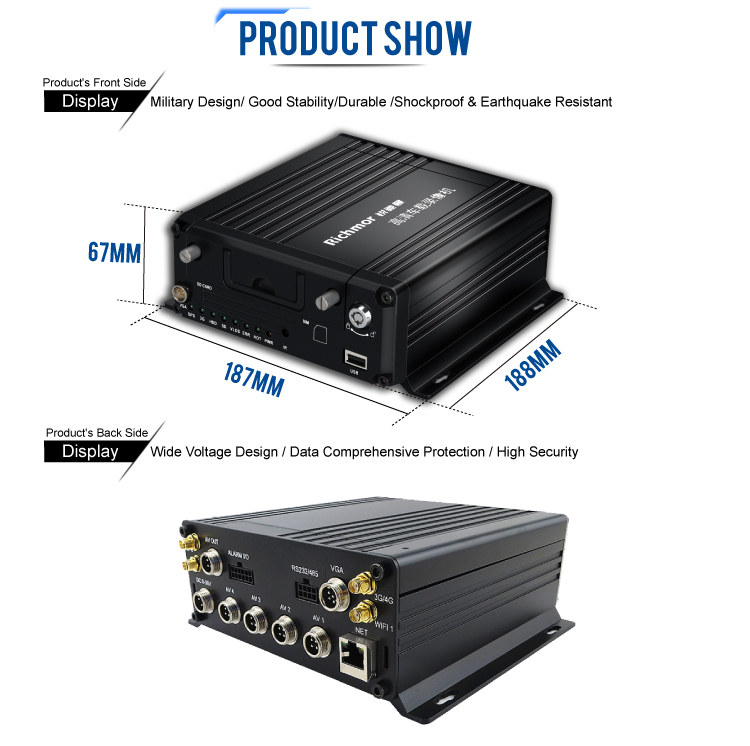

Richmor h264 4 channel video input MDVR hard disk plus 2 SD card storage mobile DVRRichmor h264 4 channel video input MDVR hard disk plus 2 SD card storage mobile DVR

Richmor h264 4 channel video input MDVR hard disk plus 2 SD card storage mobile DVR

  • Video Compression: H.264 Compression Mode
  • OSD: Overlays information such as date time and vehicle ID

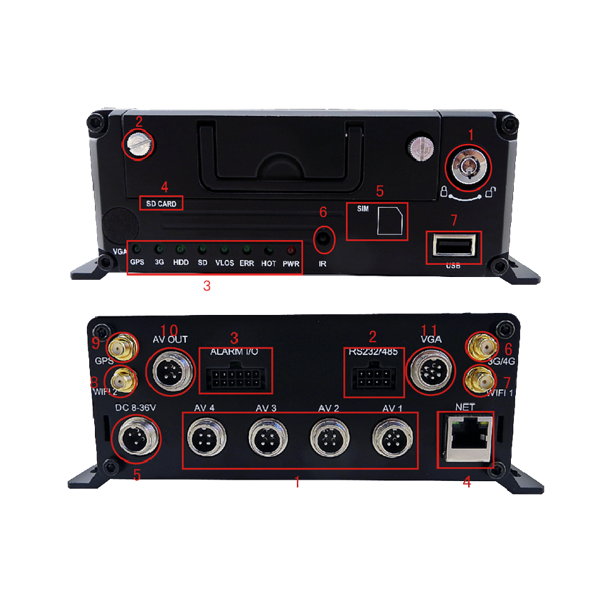

  • Video Input: 4CH 720P AHD/4CH SD/2CH HD+2CH SD input ,aviation connector.
  • Video Output: 1CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω
  • Audio Input: 4CH ,Aviation Plug
  • Audio Output: 1CH,rear port connects to BNC connector.
  • Alarm Input: 6CH IO Alarm Input, Support alarm linkage function
  • Alarm Output: 2CH Relay Alarm Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc

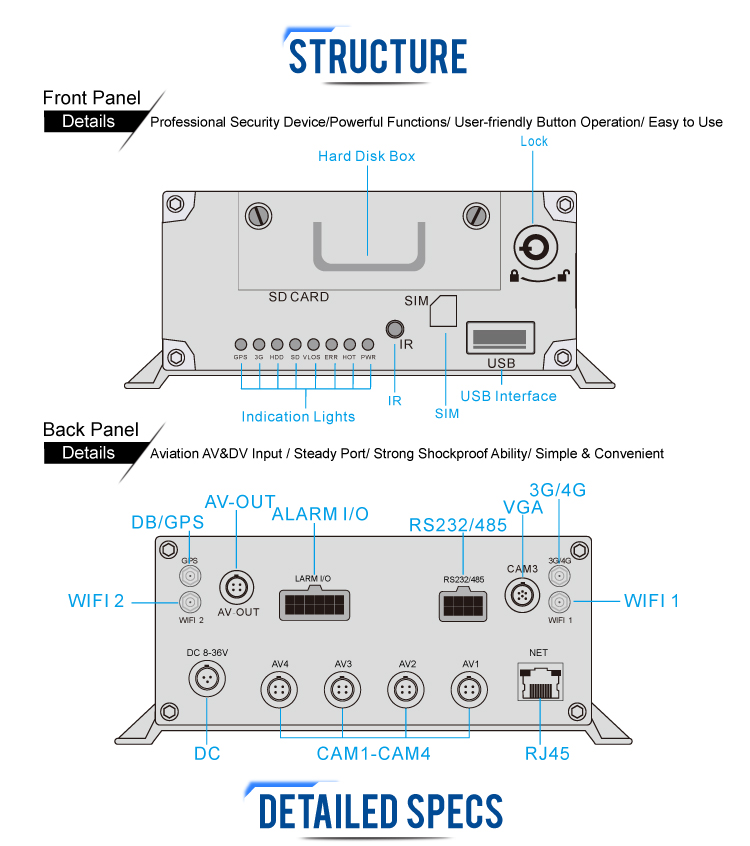

  • Communication Interface:
  • 1CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen , etc.
  • 1CH 485 interface, can connect PTZ,etc.
  • 2CH CAN interface.
Main Features

  • H.264 Compression,support 4CH 720P AHD input/ 4CH analog standard definition Camera input/2CH HD + 2CH SD mixed input;
  • 2CH video output (1CH CVBS video, VGA output for optional.)
  • Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stable and complete.
  • 8-36V wide voltage with low power consumption.
  • Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
  • HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
  • Support 2 USB interfaces, data backup and device upgrade.
  • Support 6CH alarm input (1CH RS485 + 1CH RS232 ), 2CH independent alarm output.
  • Support HDD heating functions,can work in harsh environment.
  • Support GPS/BD/G-Sensor Extension modules;
  • Realize real time monitor through 3G/4G;
  • Support WIFI module, can download data automatically.
  • Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
  • Support SMS remote configure/ control device;
  • OTA(On-The-Air) Device automatically upgrade function, can upgrade to updated version , maintenance is more convenient.
  • Support voice call function.

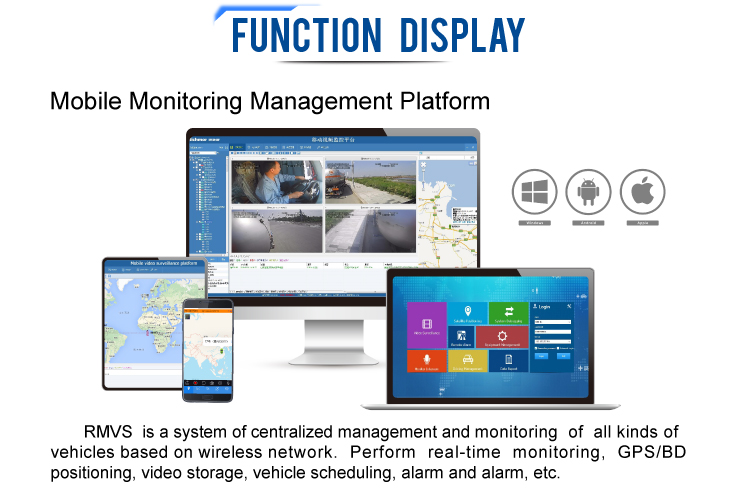

  • Support IOS/Android Phone Remote monitor
  • High level aviation interface,easily installation and better shockproof, more stable;
