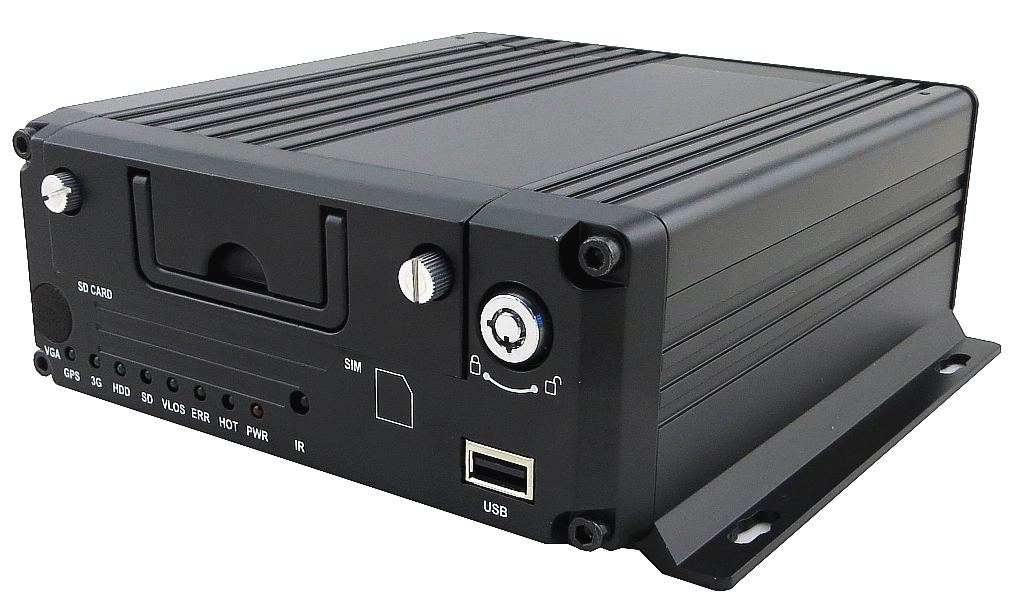

Classical 4 channel full HD 1080P h265 SD card mini MDVR
- OS: Linux
- Language: Chinese/English/Customized
- OSD: Overlays information such as date time and vehicle ID
- Graphical User Interface: Setup system parameters with the remote control.

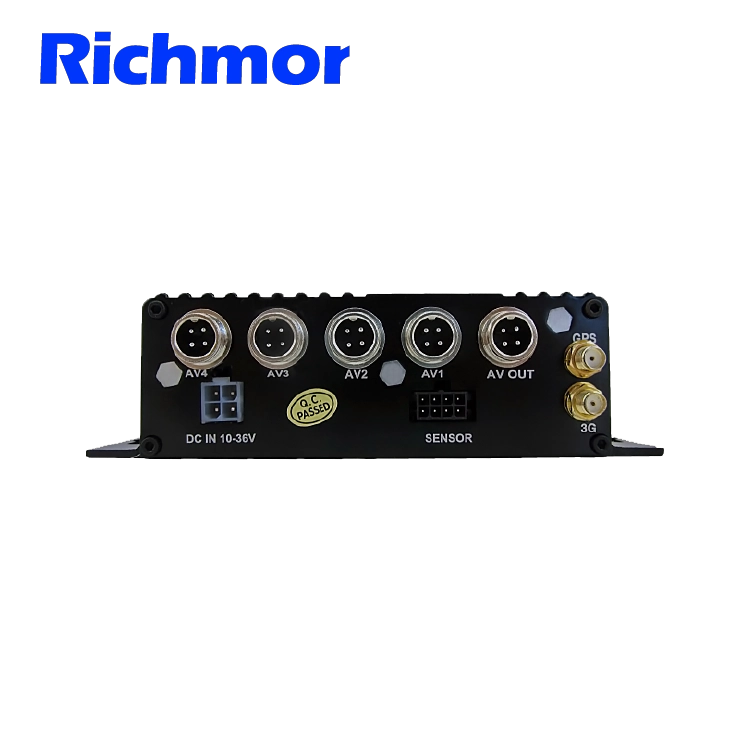

- Video Input: 4CH 1080P AHD input/SD input/mixed video input,aviation connector, 1.0Vp-p, 75Ω
- Video Output: 1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen
- Preview: Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview
- Video Quality: 0-7 levels, 0 is the highest level.
Main Features
1) H.265 Video Compression,Support 4CH 1080P AHD Camera input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input ;
2) VGA output for optional;
3) Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled etc issue,protect data file;
4) 8-36V Wide Voltage, Lower power consumption;

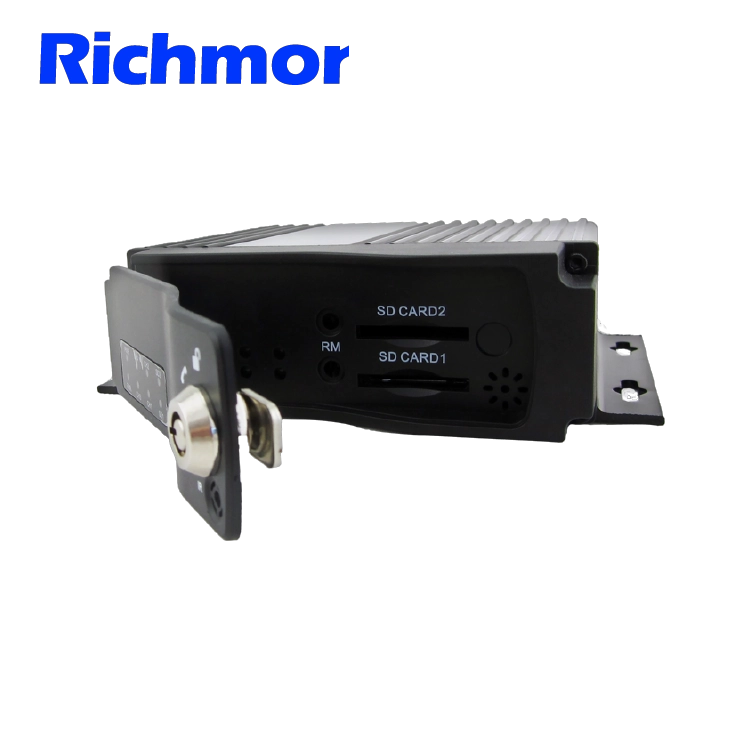

5) SD Card Storage ( Dual SD Card, each max 128GB ),
6) Support 4CH alarm input, 1CH independent alarm output;
7) Optional single RS232 serial port or single RS485 extension
8) Support GPS/BD/G-sensor module extension
9) Realize realtime monitor through 3G/4G;
10) Support WIFI module, can download data automatically
11) Support SMS romote configure/ control device;
12) Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
13) High vibration Aviation plug
