Stable high-quality processor solution, H.264/H.265 compression, support mixed video input.

◆ Real time AHD or IPC video recording, 1080p / 720p / D1 / HD1 / CIF optional, adjustable frame rate and image quality.

◆ 4CH/8CH AHD, max full 1080P. Or 4CH AHD + 4CH IPC.

◆ 2CH video output. Support 1CH BNC, optional 1CH VGA.

◆ 6CH IO alarm input (door opening and closing, lighting, steering, braking, reversing can be configured ), 2CH IO alarm output.

◆ Support RS232 + RS485 for sensors, supports RJ45 for local internet for IPC camera connection, support USB port for parameter input and output, upgrade.

Industrial design:

◆ Professional MDVR power design, 8-36v DC voltage input; Support Power mode/ACC mode/Sleep mode/Timing mode. Support delay off time, max 24 hours. Protection for overload / undervoltage / short circuit, which is suitable for various vehicles.

◆ Provide DC12V and DC5V power output, which can provide constant voltage power for cameras, small screens, sensors and so on.

◆ Support ACC delay off function, device can work after ignition is off (Max 24 hours). Support sleep mode, built-in 3.7v/600mAh (Max1200mAh) backup battery, support GPS upload after vehicle outage.

◆ Protection of car accident outage: Super capacity built-in, which can make the machine work normally for 5-8s when power supply is totally off，so as to ensure the integrity of video and facilitate accident investigation.

◆ SD card + Hard disk recording (max 2TB + 1*128GB), Physical and digital level hard disk protection technology can avoid damage by vibration and dust.

◆ The unique pre-allocated MDVR system can solve file fragments caused by repeated erasure, ensure the stability and integrity of data.

◆ Watchdag abnormal recroding reboot function, better protects machine ans video.

◆ Auto-video recording, manual video recording, alarm video recording and other video recording methods to meet different needs.

◆ Overlay function can indicate vehicle driving status, license plate, speed ect. on the the video.

Network function:

◆ Support GPS / BD, GLONASS optional. RTK high-accuracy positioning module optional. Support Geo-defence.

◆ Support 3-axis G-sensor. Support alarms, even snaps and videos uploading to server for tilt and collision.

◆ Support 4G, WIFI (optional). WIFI support AP mode and Station mode.

◆ Support remote checking parameter and config using platform, OTA.

◆ Remote support for A/V live monitoring, two-way voice intercom, remote PTZ control, Emergency alarm, overspeed alarm, cross-border and route deviation alarm.

◆ Support remote monitoring via phone and mobile phone call function.

AI function:

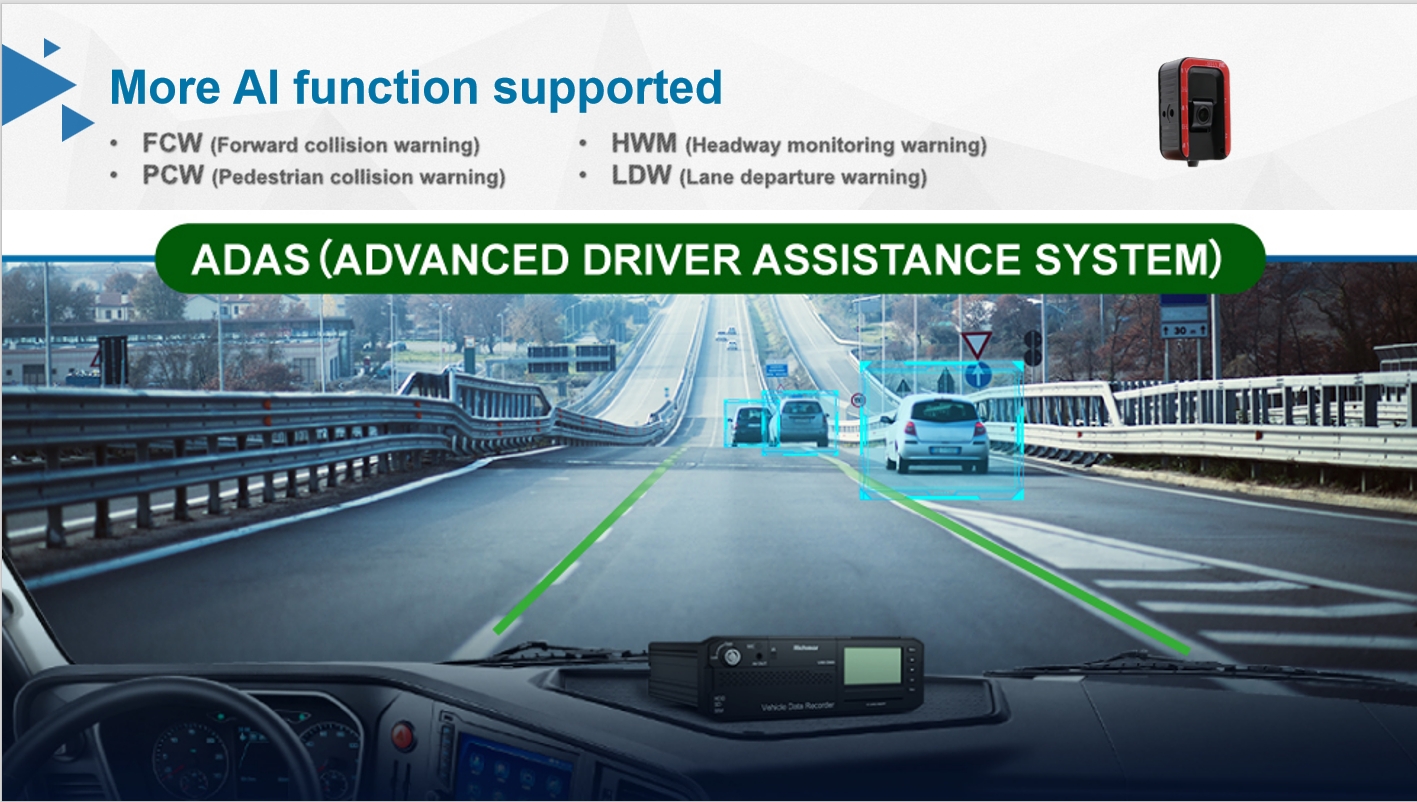

◆Integrated ADAS (efficient alerts: lane departure detection, front vehicle collision detection, etc.).

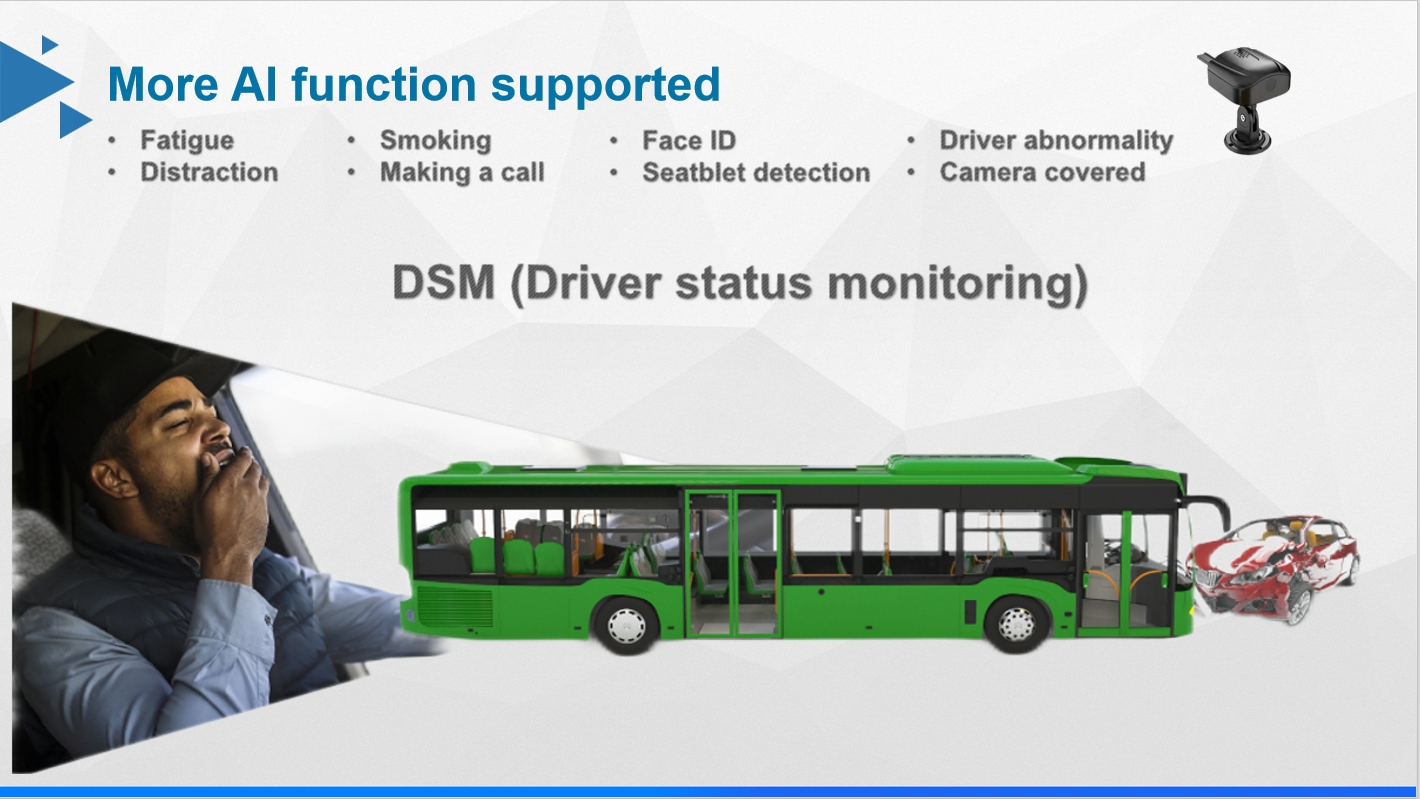

◆Integrated DSM, driver facial recognition (efficient driver’s behavior alerts: Fatigue, Distraction, Smoking, making call, etc.)

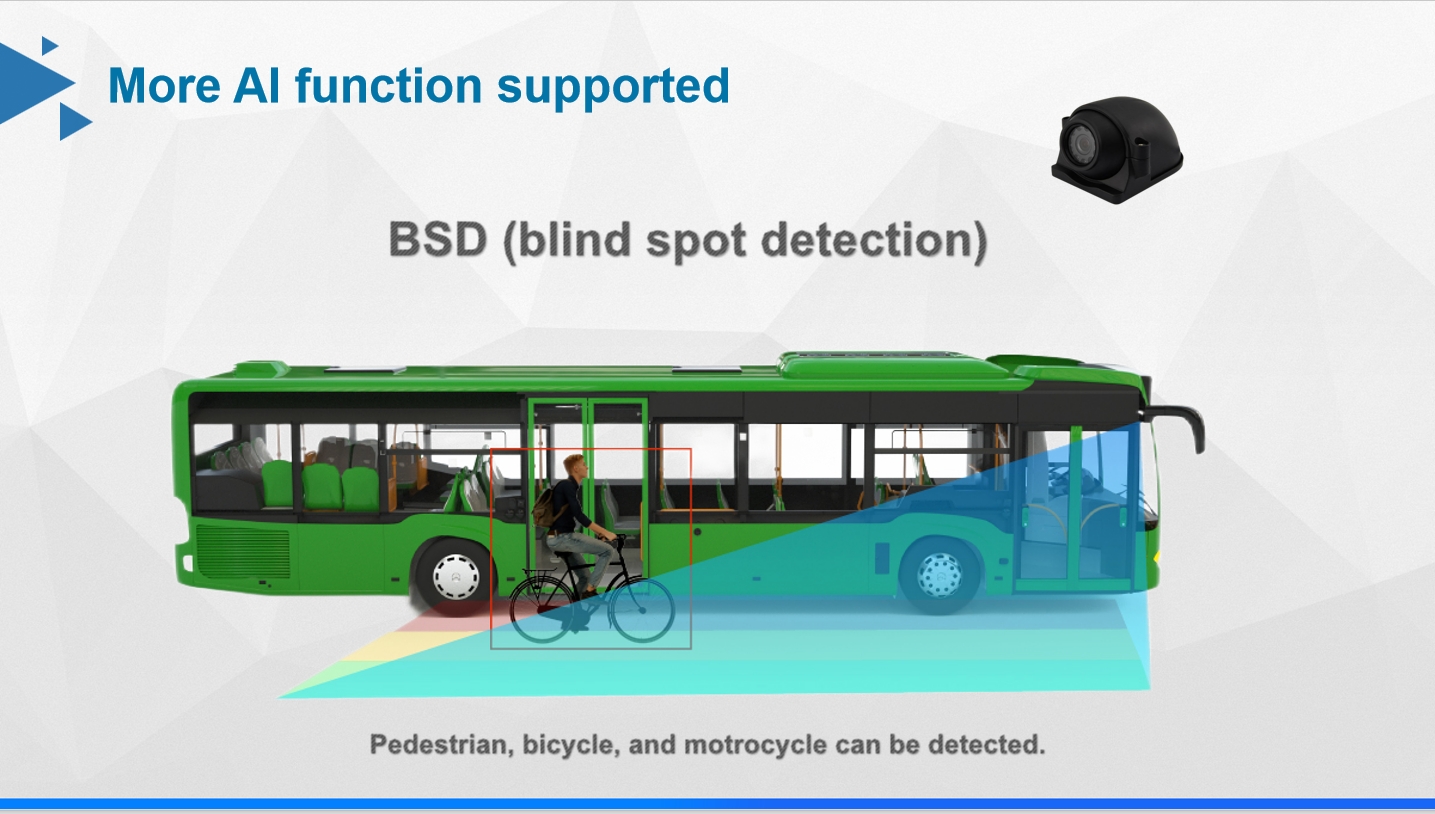

◆Integrated BSD blind Spot detection algorithm (efficiency alerts for side people, vehicles, bicycles..)

◆ Customization functions which are based on customer requirements!

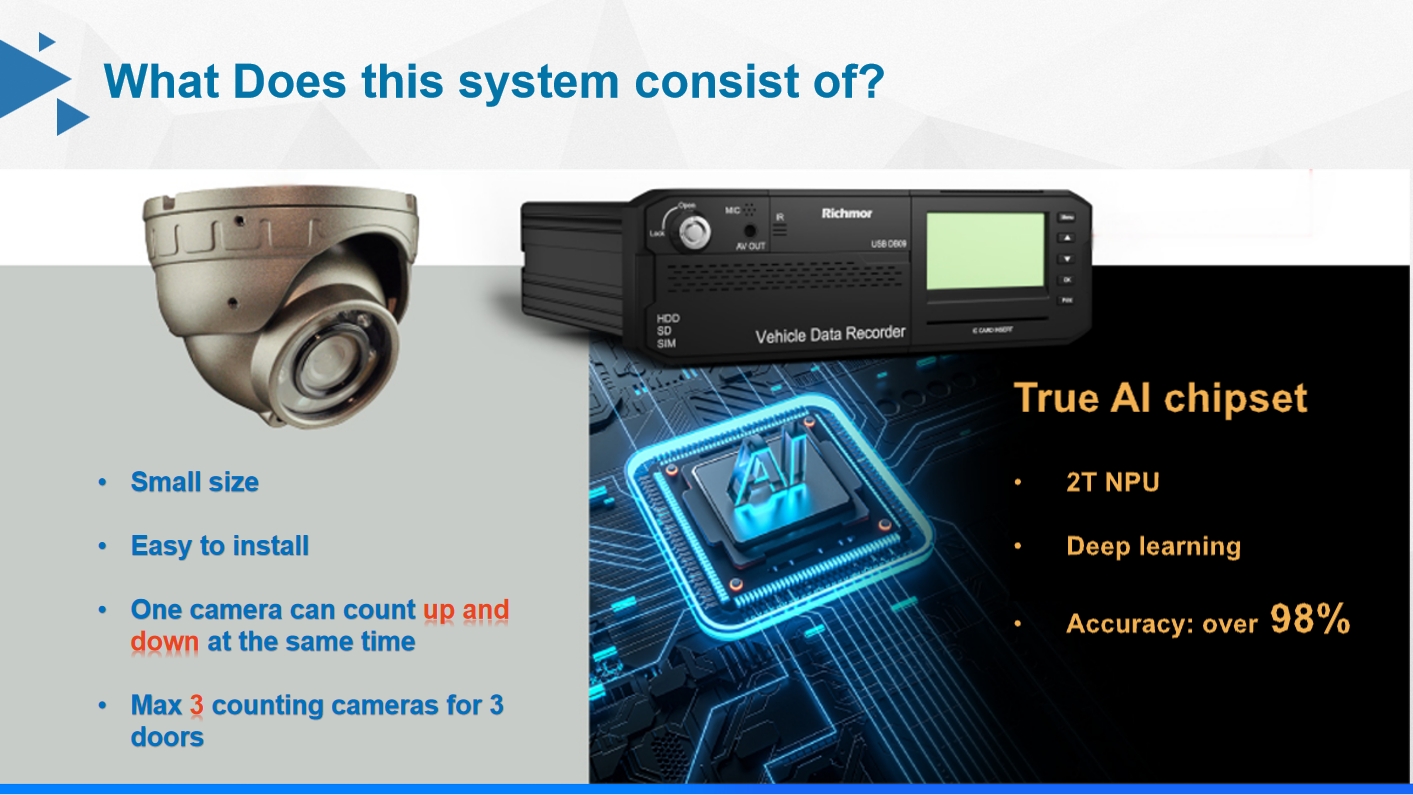

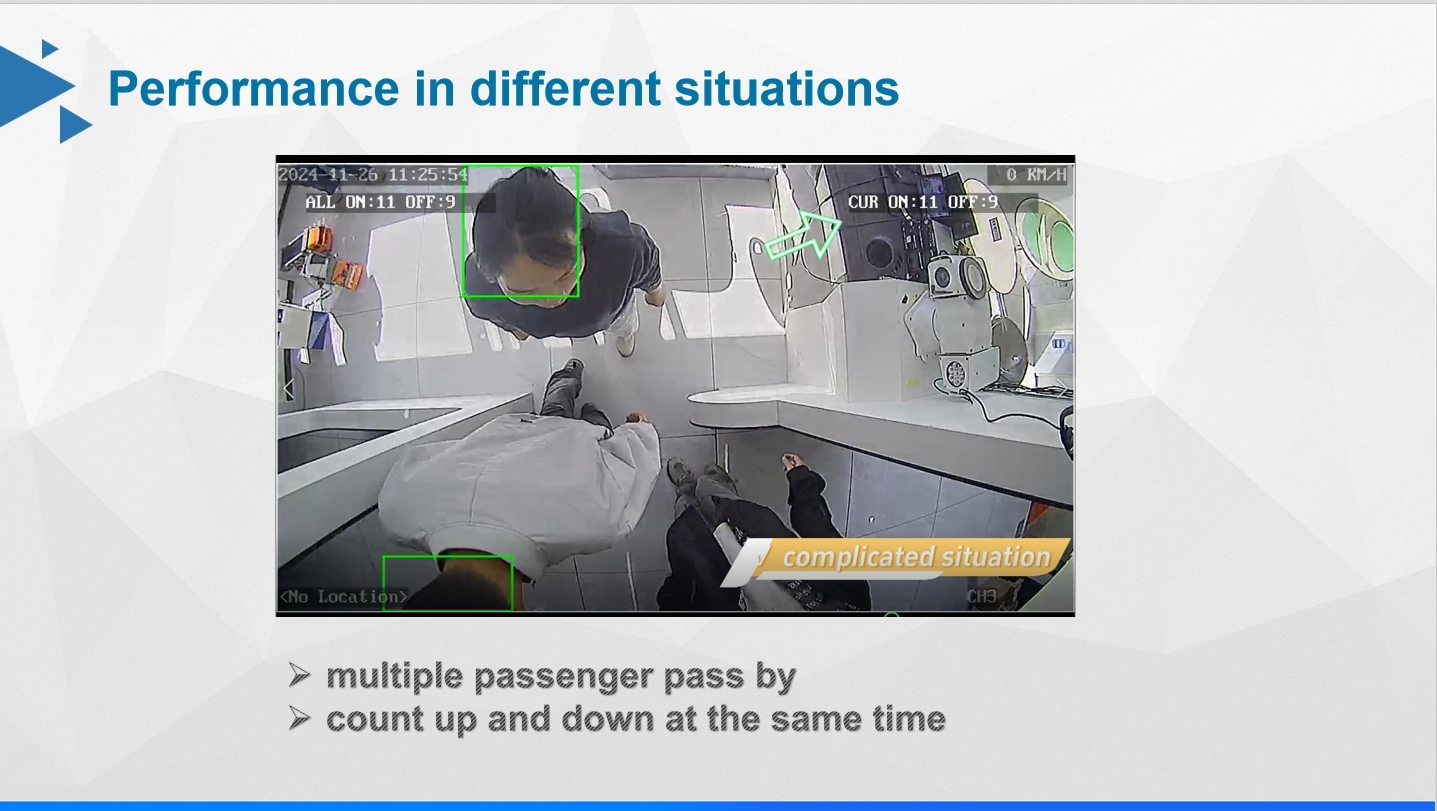

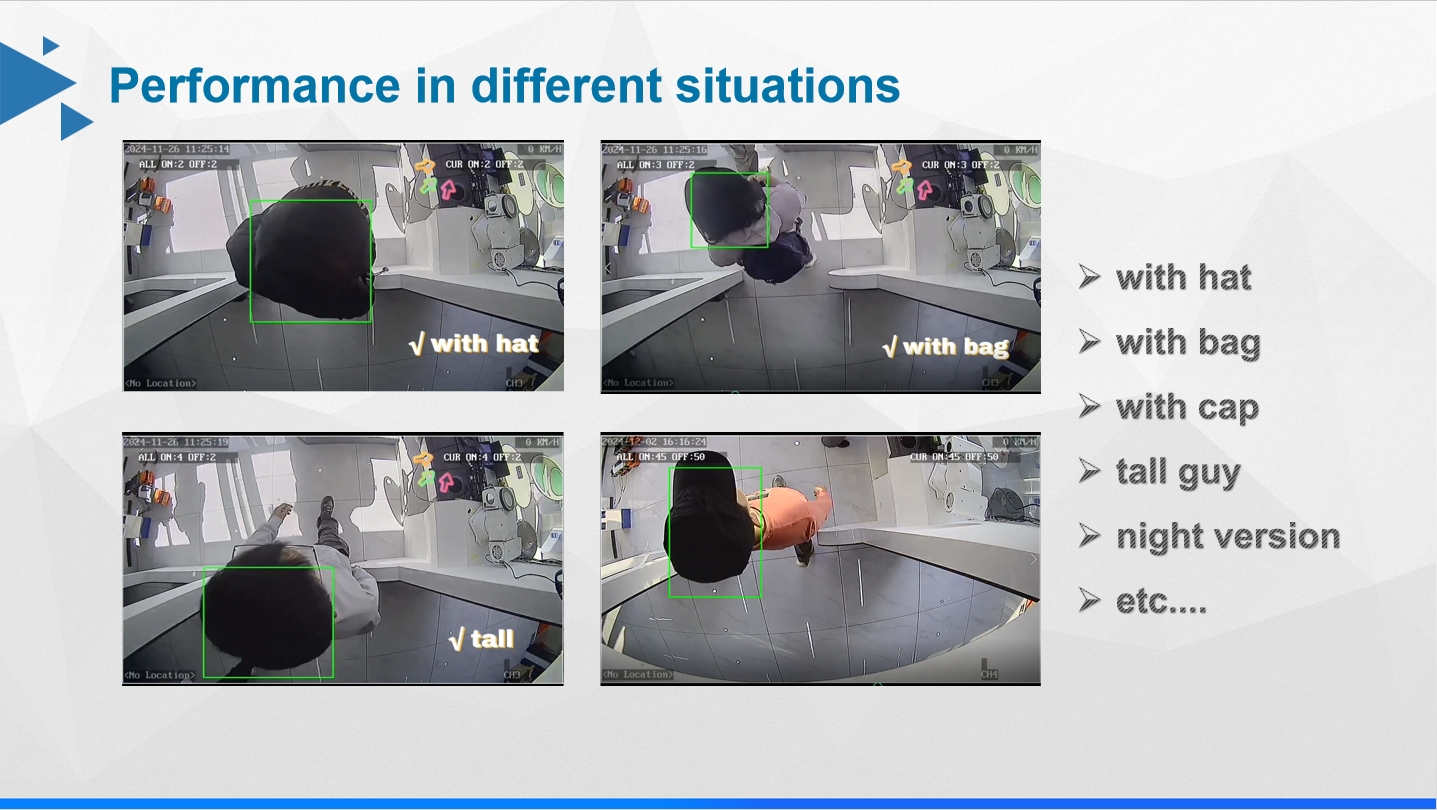

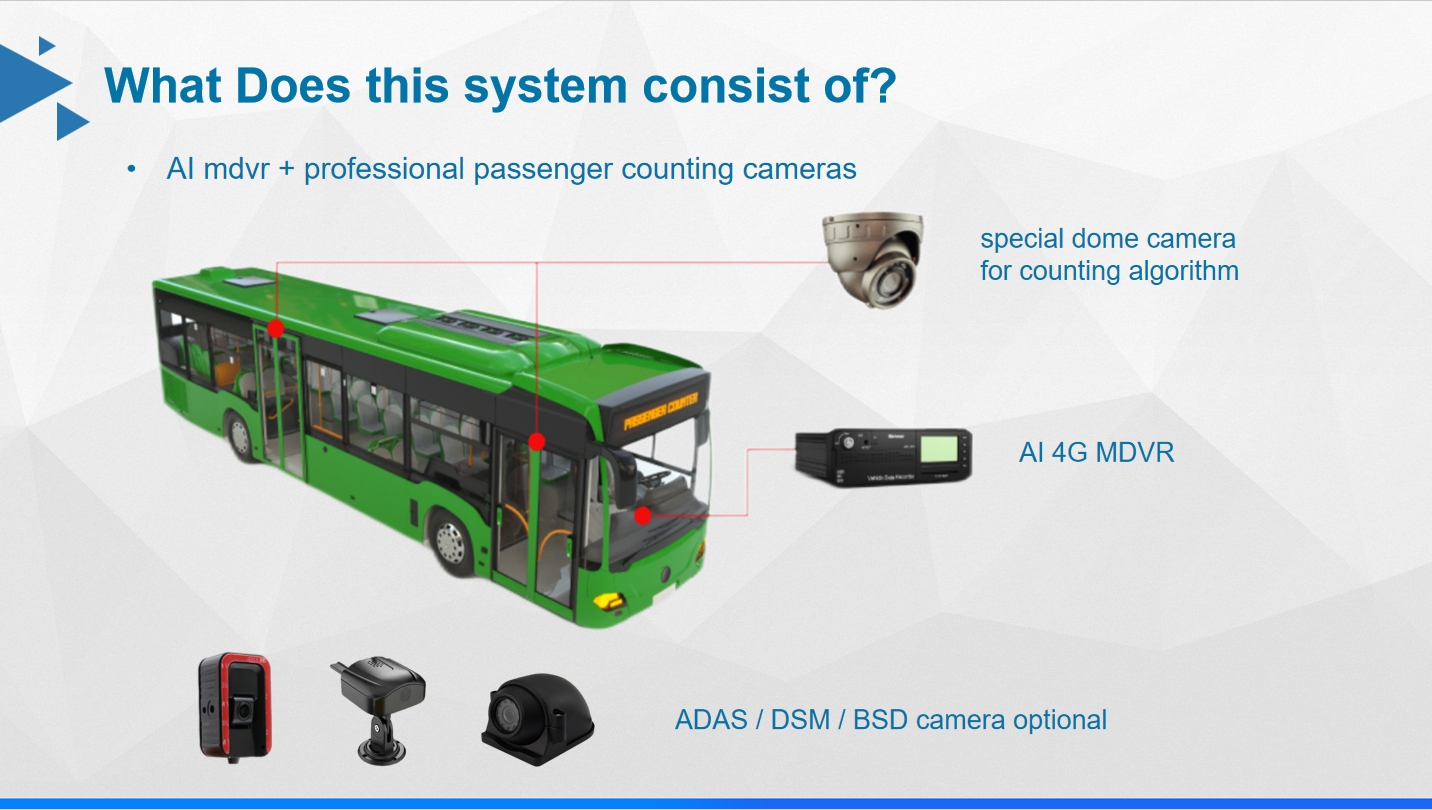

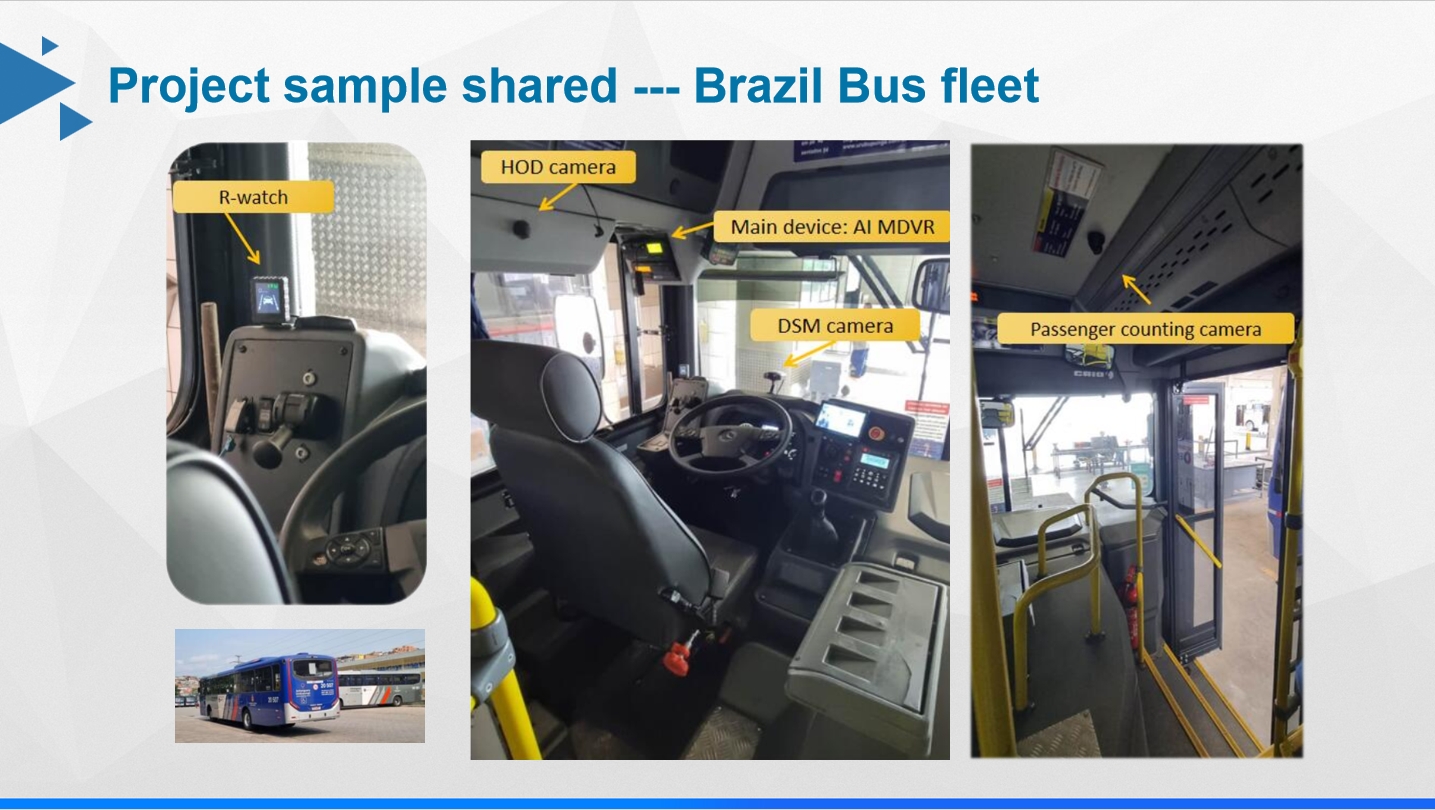

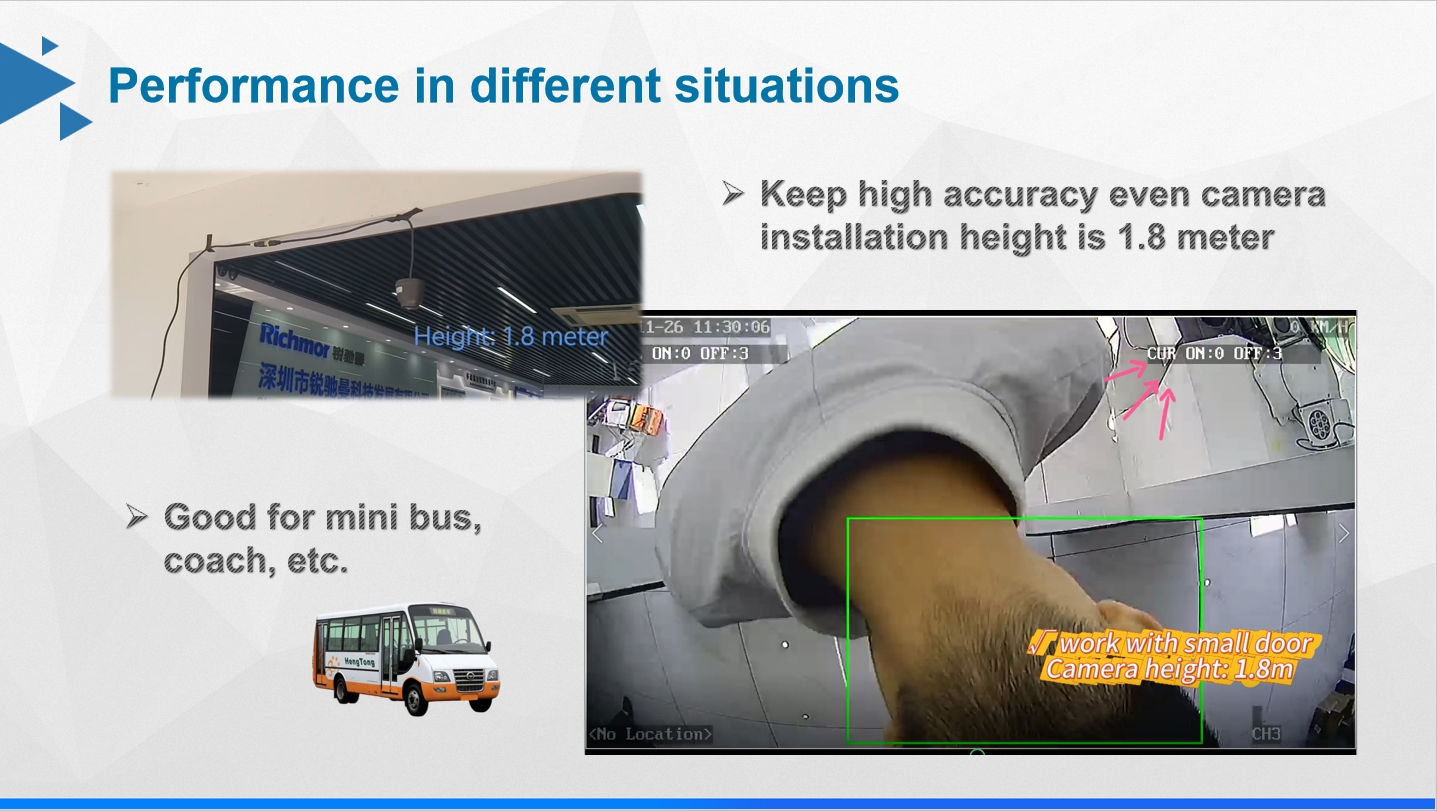

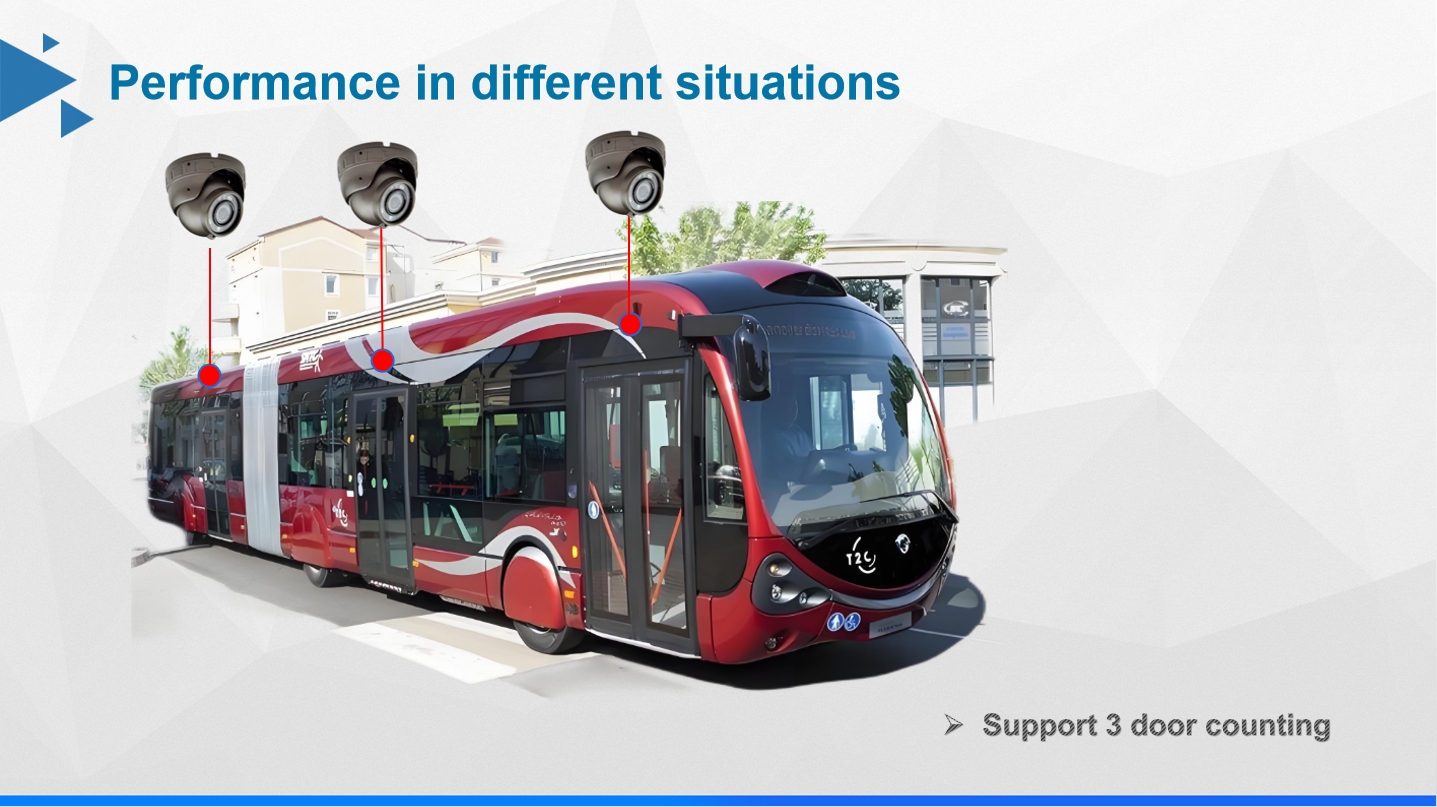

Richmor Al People Counting MDVR, utilizes the most advanced Al technology (no longer Toftechnology), to provide the best performance of passenger counting solution, with the 99%highest level of accuracy, and can work in complicated ambient light environment, in bus doorscenarios. Easy and costly solution with one camera for two way people counting.
