1~3 channel dashcam

4G WIFI mini Dashcam

H.265 compression easy install dashcam

support technical software service support

Richmor Technology adopts Al imaging technology to develop professional vehicl passenger counting system,

which has the characteristics of high integration, accuracy and easy installation, and it is widely used in public bus, coach,

tour bus and other vehicles. Richmor passenger counting system has high accuracy up to 99%, it can accurately countthe number of passengers getting on and off the bus, even in different light and weather environment At the same time, the passenger flow data can be transmited to the platform by connecting the Richmor MDVR, so asto realize the analysis and management of passenger flow data.

1) H.265/H.264 compression mode.
2) Max support 3CH 1080P video input.
3) ABS+Aluminum alloy material, small size.
4) Support 4G+GPS.
5) Support WIFI AP mode for fast setting.
6) Built-in MIC and speaker for talkback
7) Free CMS software.

Main features

1.Built-in AHD camera with DSM camera (ADAS optional)
2.Adopt H.265/H.264 Video compression
3.Max Suppot 4CH 1080P(Standard 3CH)

4.Easy installation
5..Heat dissipation design, long service life
6.Supports one-click alarm and snapshot functions
7.Support 3G/4G network; built-in Beidou GPS dual mode, G-sensor
8.Built-in pickup and speaker

Main features
1.1 channel 1080P analog high-definition video input
2.WIFI, 4G, BD/GPS, G-Sensor
3.SD Card Storage MAX 512G
4.Support start and stop control
6.Support seatbelt detaction
7.Supports speed limit and supports Hall speed sensor access (indoor speed sensor)
8.DMS supports face recognition, smoking recognition, and helmet recognition (optional)
9.BSD function(optional)

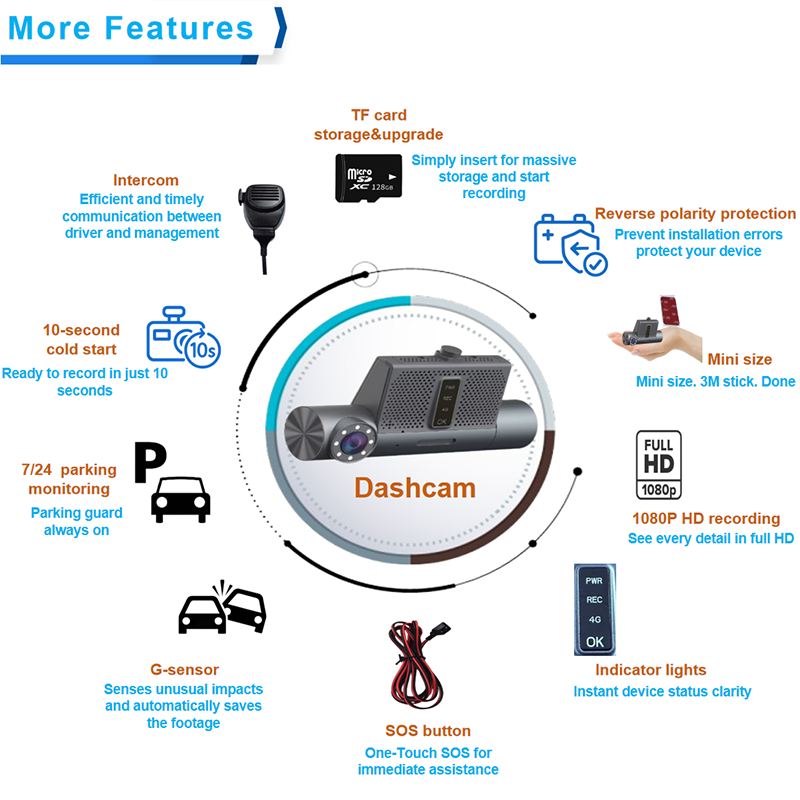

• Mini HD professional driving recorder
• Built in 2CH 1080P HD video recording, support external 1CH camera
• GPS/BD+AGPS positioning, 4G remote transmission
• DMS function is optional
• Emergency alarm, intelligent voice control, OTA upgrade, etc.
• Suitable for online car-hailing, taxi, truck, etc.
• Mini size and easy installation and configuration

 Portable modular 2 channel mini 3g AHD 1080P MDVR

 Stable high-quality processor solution, H.264/H.265 compression, support mixed video input.

◆ Real time AHD or IPC video recording, 1080p / 720p / D1 / HD1 / CIF optional, adjustable frame rate and image quality.

◆ 4CH/8CH AHD, max full 1080P. Or 4CH AHD + 4CH IPC.

◆ 2CH video output. Support 1CH BNC, optional 1CH VGA.

◆ 6CH IO alarm input (door opening and closing, lighting, steering, braking, reversing can be configured ), 2CH IO alarm output.

◆ Support RS232 + RS485 for sensors, supports RJ45 for local internet for IPC camera connection, support USB port for parameter input and output, upgrade.

Industrial design:

◆ Professional MDVR power design, 8-36v DC voltage input; Support Power mode/ACC mode/Sleep mode/Timing mode. Support delay off time, max 24 hours. Protection for overload / undervoltage / short circuit, which is suitable for various vehicles.

◆ Provide DC12V and DC5V power output, which can provide constant voltage power for cameras, small screens, sensors and so on.

◆ Support ACC delay off function, device can work after ignition is off (Max 24 hours). Support sleep mode, built-in 3.7v/600mAh (Max1200mAh) backup battery, support GPS upload after vehicle outage.

◆ Protection of car accident outage: Super capacity built-in, which can make the machine work normally for 5-8s when power supply is totally off，so as to ensure the integrity of video and facilitate accident investigation.

◆ SD card + Hard disk recording (max 2TB + 1*128GB), Physical and digital level hard disk protection technology can avoid damage by vibration and dust.

◆ The unique pre-allocated MDVR system can solve file fragments caused by repeated erasure, ensure the stability and integrity of data.

◆ Watchdag abnormal recroding reboot function, better protects machine ans video.

◆ Auto-video recording, manual video recording, alarm video recording and other video recording methods to meet different needs.

◆ Overlay function can indicate vehicle driving status, license plate, speed ect. on the the video.

Network function:

◆ Support GPS / BD, GLONASS optional. RTK high-accuracy positioning module optional. Support Geo-defence.

◆ Support 3-axis G-sensor. Support alarms, even snaps and videos uploading to server for tilt and collision.

◆ Support 4G, WIFI (optional). WIFI support AP mode and Station mode.

◆ Support remote checking parameter and config using platform, OTA.

◆ Remote support for A/V live monitoring, two-way voice intercom, remote PTZ control, Emergency alarm, overspeed alarm, cross-border and route deviation alarm.

◆ Support remote monitoring via phone and mobile phone call function.

AI function:

◆Integrated ADAS (efficient alerts: lane departure detection, front vehicle collision detection, etc.).

◆Integrated DSM, driver facial recognition (efficient driver’s behavior alerts: Fatigue, Distraction, Smoking, making call, etc.)

◆Integrated BSD blind Spot detection algorithm (efficiency alerts for side people, vehicles, bicycles..)

◆ Customization functions which are based on customer requirements!

Richmor Al People Counting MDVR, utilizes the most advanced Al technology (no longer Toftechnology), to provide the best performance of passenger counting solution, with the 99%highest level of accuracy, and can work in complicated ambient light environment, in bus doorscenarios. Easy and costly solution with one camera for two way people counting.
