new arrival MDVR 8204 8208 720p 1080p car vidio recorder H.264 H.265 AI dvr ADAS DSM BSD ai function optional

  • Model:Alexander 128 / G
  • Year:1976-1991
  • Type:Video Recorder
  • Car Fitment:ABG
  • Screen Type:AMOLED
  • Angle:130°
  • Resolution:1080P, 1080P/720Pcan be optional, max support 8channel 1080P
  • Function:Remote Control, G-Sensor, Loop recording, Build-in WiFi, Build-in GPS, Build-in Battery, Andriod OS, SDK, ADAS
  • Voltage:12-36v
  • Working Temperature Range:-20 - 70 ℃
  • Warranty:1 Year, 12 Months
  • Place of Origin:Guangdong, China
  • Brand Name:RICHMOR
  • Model Number:820X, RCM-MDR8204/RCM-MDR8208
  • Power Supply:8-36V
  • Video input:8 CH 1080P analog HD video input, 2-CH video output
  • Alarm language:English, Portuguese and other could be customized
  • Camera Resolution:960P/720P
  • Video Compression:H.265/H.264
  • Storage:1sd card +1 hdd
  • AI function:Optional ADAS DSM BSD function

Main Features

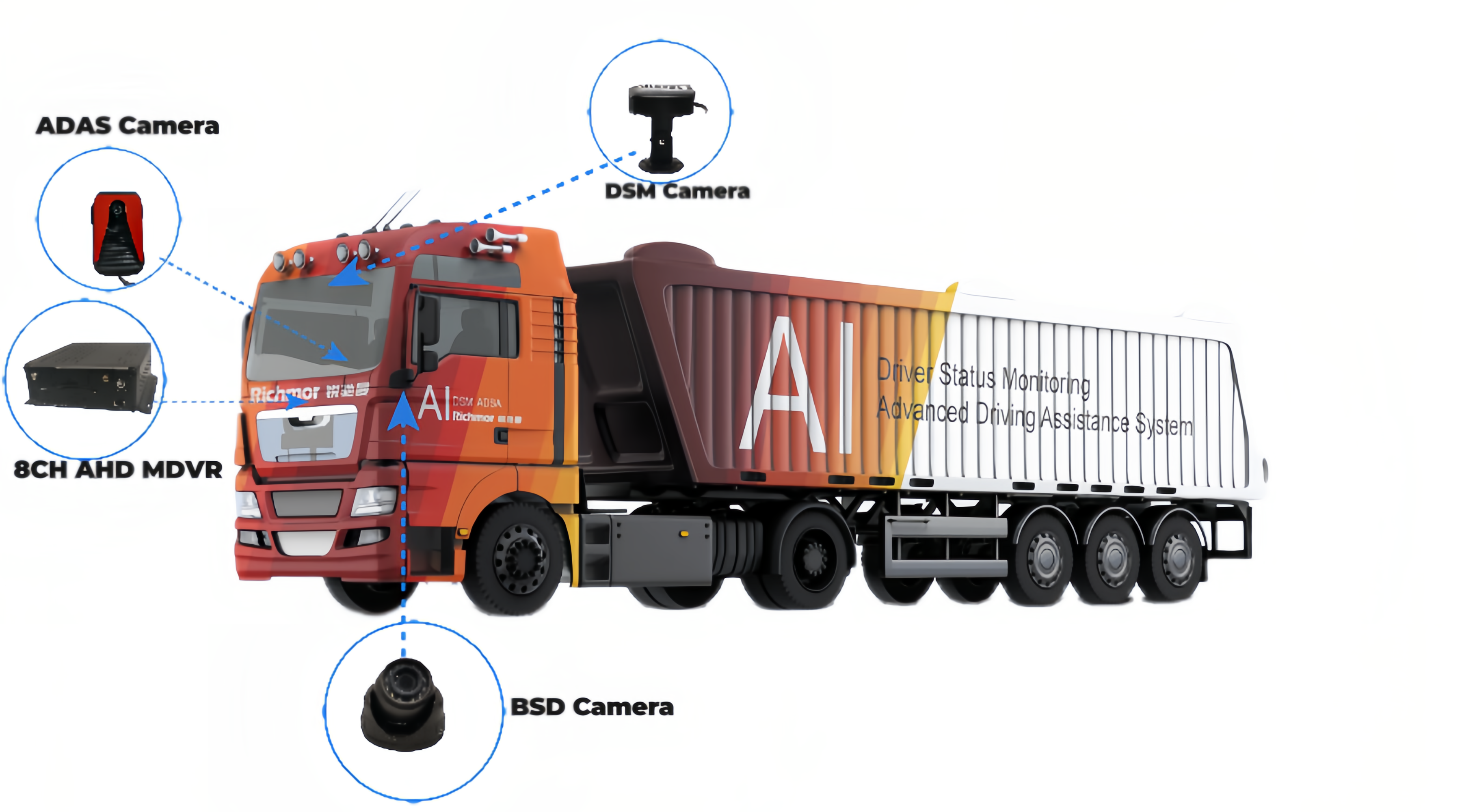

AI supported. ADAS (front safety auto-alarm), DSM (Driver Status Monitor), Driver facial recognition, BSD(Blind spot detection) available for option. 4CH/8CH optional, Hard disk storage. Optional for hybrid 7C AHD+1CH IPC.

Products Description
Resolution
4X 1080P AHD or 8X 1080p IP Full real-time recording
Module
G-Sensor built in,GPS/3G/4G /WIFI Optional
Storage
Support 1 X 2TB Hard disk + 1 X 128 GB SD card
Alarm I/O
6CH Alarm input,2CH Alram output

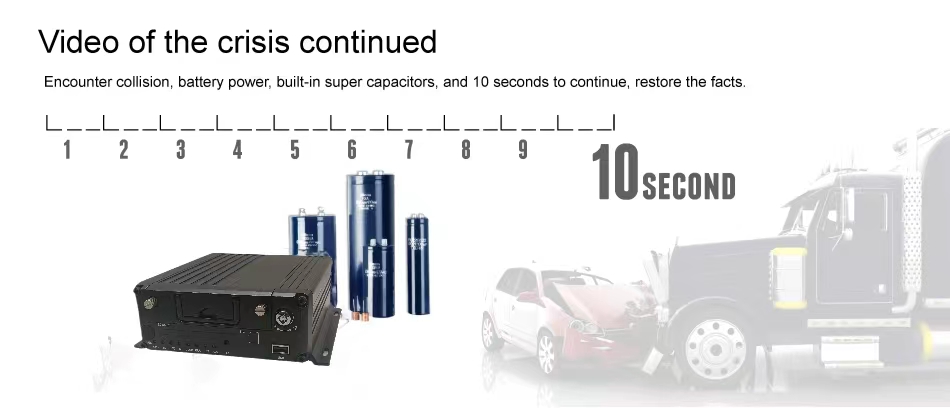

ACC Delay
10 seconds delay pow-off for data protection
Voltage
8V-36V Wide range voltage power supply
AI Function
ADAS+DSM+BSD AI Function
ADAS (forward safety active alarm) + DMS (dangerous driving behavior analysis + driver face recognition authentication) + BSD (blind spot warning algorithm) can be integrated

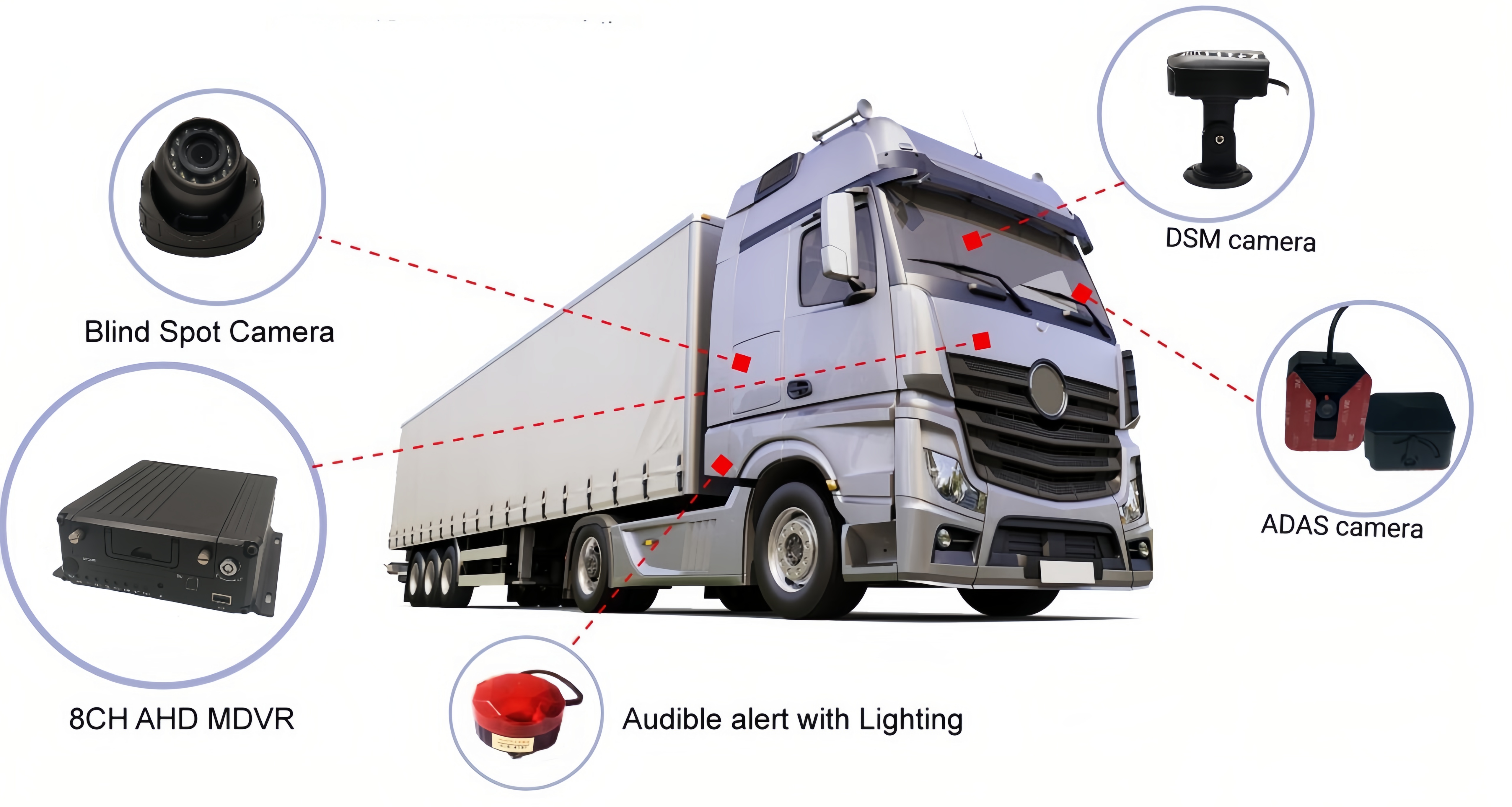

Application samples This model can be applied in multiple kinds of vehicles. Contact salesperson to for the best solution for your case.

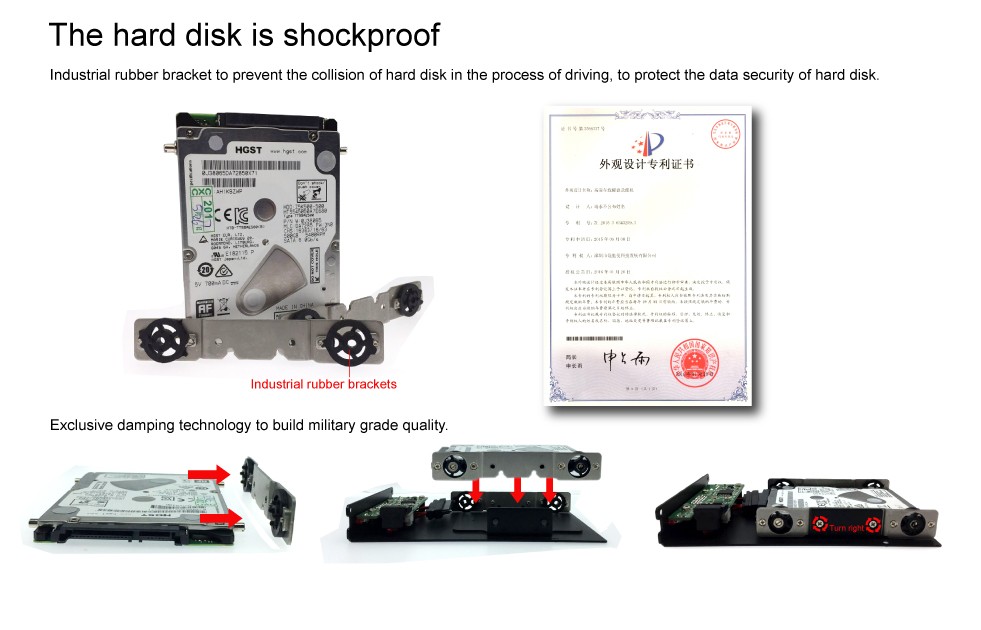

Industrial rubber bracket

to prevent the collision of hard disk in the process of driving, to protect the data security of hard disk. Exclusive damping technology to build military grade quality.




RMVS is a system of centralized management and monitoring of all kinds of vehicles based on wirelessnetwork. Perform Real-time Monitoring, GPS tracking, Video storage, Vehicle scheduling, Intercom and Alarm, etc. Contact salesperson to know more function of RMVS
Item
Parameter
OS
Linux
Video Input
 4 channels (8204) / 8 channels (8208)
Video output
2 composite
Audio Input
8204-4 channels/8208-4 channels
Audio output
1CH
alarm input
6CH
alarm output
2CH
storage
HDD maximum can support 2TB;1 large-capacity SD card
Wireless communications
 1 channel 232 interface;1 way 485 interface;1 way USB interface; support*1RJ45 network port
G-sensor
Support G-sensor
GPS
Support
Voltage input
 DC +8 ~ +36V self-adaptive wide power input,
Operation Temperature
 -20℃~+70℃
