Mobile Car Dvr Recorder 1080p, Mobile DVR with SD HDD

Mobile Car Dvr Recorder 1080p, Mobile DVR with SD HDD

  •  Real-time HD Video Recording, 1080P/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.
  • HIS Solution, H.264 Compression Mode, Many stream recording, support 8CH 2MP real-time video 2MP real-time video recording/Monitoring/Playback (4CH real-time 1080P AHD input/8CH 1080P 120 Fps AHD input / 8CH 720P real-time AHD input / 8CH D1 analog standard definition input), support million pixels HD video resolution.
  • Professional Power Design for all kinds of Vehicles, 8-36V DC; Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse Protection,Suitable for all kinds of vehicles.
  • Support DC 12V output, it can offer power for cameras,mini monitor and some peripheral device.
  • HDD + SD card Data record storage (maximum support 2TB 2.5’’ hard disk and 128GB SD card. ) It can be completely resist car Vibration,Dust and others cause data corruption;
  • Watchdog Abnormal will trigger Restart Protection Function . It can better protect Device and Video.
2TB HDD mobile dvr support SD card Remote Software,720p 1080P camera optional for connect


Product Specifications:

project parameter
operating system Linux
Language English / Chinese / custom
Video compression H.264 compression
OSD Overlaying date and time and vehicle ID and other information
GUI GUI Set the system parameters with the remote control
Video recording system  Video input     4CH 1080P/960P / 720P AHD Input, Aviation Connectors, 1.0Vp-p, 75Ω
 Video output 1 CVBS, 1.0Vp-p, 75Ω, aviation, support 1CH full screen, 4CH screen view
Preview

Supports preview of 1 channel and 4 channels.

Support manual / alarm trigger full-screen preview

Resolution 720P / D1 / HD1 / CIF, MAX: 4 720P and 4 D1
Picture quality Level 1-4, Level 1 is the highest level.
Video standard

PAL: 100f / s, CCIR625 line, 50field;

NTSC: 120f / s, CCIR525 line, 60 fields;

CIF: 256Kbps ~ 1.5Mbps, 8-level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8-level video quality optional;

D1: 800Kbps ~ 3Mbps, 8-level video quality optional;

720P: 4Mbps-6Mbps, multi-level video quality optional

Recording mode

After power on the default setting for automatic recording.

Support timer recording, alarm trigger recording and manual recording.

Audio Audio input 4CH aviation plug input
Audio output 2CH, the front panel connects to the headphones, the rear panel connects to the BNC
compression G.726 compression, 8KB / s speed
Alarm input 7CH alarm input, 1CH AD input, pulse speed input, alarm linkage
Alarm Output 2 alarm output, support for light / sound alarm sensor, oil / power off
interface 3CH RS232, POS / Fuel Sensor / LED Advertising Connection
1CH 485 interface, connect the PTZ camera
Wireless transmission

Support built-in 3G transmission, WCDMA, CDMA2000, GPRS, EDGE;

Built-in 4G module optional, TDD-LTE, FDD-LTE

GPS location Support built-in GPS / BD module
storage hard disk Maximum 2.5 "1TB hard drive
SD card Maximum 128GB SD card image record keeping data safe
Updated Support USB update, SD card update, OTA remote update
file format H.264
File system Special FAT32 file system
USB USB interface on the front panel data backup U disk, hard disk
Record replay Video search Search by recording time / record type, etc.
Playback Max also supports 4CH Replay / Stop / Fast / Slow
Support for x 2, x 4, x 8, x 16 forward and backward playback.
                 Safety User / Administrator 2 different passwords
Optional features Voice calls Support each other voice calls
TTS voice broadcast Support TTS voice playback.
Serial extension

Support LED advertising screen, oil level sensor,

POS, bus station broadcasting, car OBD and other external equipment

Voltage & Power Energy management Wide voltage. Support timing / delay off
Input voltage DC: + 6V - + 36V
The output voltage + 12V ~ 1.5A, + 5V ~ 1.5A
power Working & lt; 5W
working environment temperature -20 ℃ - +70 ℃
humidity 20% - 80%
other size 200 (D) * 187 (W) * 62 (H) mm
weight 1.90 kg

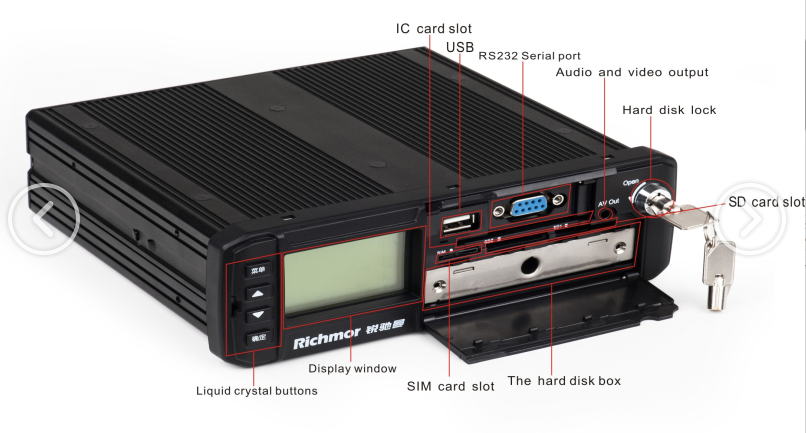

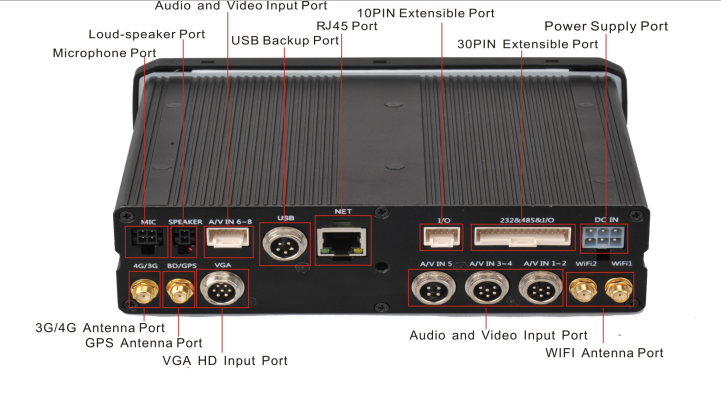

Product Image:











Client user graphical interface


 Our mdvr supports PC, mobile phone and other mobile client monitoring.


Appliacation

certificate



Company and factory




exhibition:



Welcome to contact us for more details ....
