4 Channel H.264 3G SD Mobile DVR with GPS tracking for vehicle monitoring RCM-MDR501WDG4 Channel H.264 3G SD Mobile DVR with GPS tracking for vehicle monitoring RCM-MDR501WDG4 Channel H.264 3G SD Mobile DVR with GPS tracking for vehicle monitoring RCM-MDR501WDG

4 Channel H.264 3G SD Mobile DVR with GPS tracking for vehicle monitoring RCM-MDR501WDG

  • 1.Built in 3G module
  • 2.Built in GPS module
  • 3.Support PTZ remote control
  • 4.Real time vewing
  • 5.Vehicles manage

4 Channel H.264 3G SD Mobile DVR with GPS tracking for vehicle monitoring

Model: RCM-MDR501WDG


Main Feature:

1. 4 channel SD card Mobile DVR

2. Support 3G, GPS function

3. Support PTZ remote control

4. Support real-time surveillance

5. Supports SD overwritten by days

6. Supports backup and upgrade with SD card

7. Self recorvery after power reconnected

8. Stable aluminum alloy structure with shock absorber

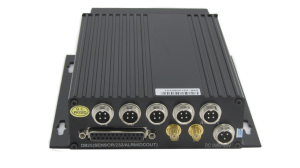

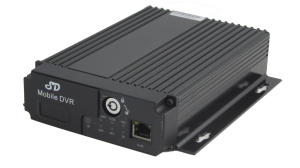

Pictures:


mobile dvr


Specification:

Items

Device parameters

Performance index

Name

Product Name

4 Channel Mobile DVR (SD Storage)

System

Operation System

Linux

Operation Interface

Graphical Interfaces, Chinese/English optional

File System

Proprietary Format

System Privileges

User Password

Video

Video Input

4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras

Video Output

1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal

Video Display

1 Or 4 Screen Display

Video Standard

PAL:25frames/Sec;NTSC:30frames/Sec

System Resources

PAL:100 Frames; NTSC:120 Frames

Audio

Audio Input

Two Channels Independent Input  500Ω

Audio Output

1 Channel(4 Channels Can Be Convert Freely)

Basic Output  Level

1.0—2.2V

Distortion Plus Noise

≤-30dB

Recording Mode

Sound And Image Synchronization

Audio Compression

ADPCM

Alarm

Alarm in

4 Channels Independent Input. High Voltage Trigger

Alarm out

2 Channels Independent output

Move Detect

available

Network

Interface

3G

Can Expand One WCDMA or CDMA2000 Module Inside

GPS Interface

GPS

Can Expand GPS Module inside

Extend Interface

Intercom

Can Expand Intercom Module Inside

Others

Power Consumption

DC8-36V  5%   ≤10W

Working Temperature

-20℃ ~ +85℃  ≤80%

Clock

Built-In Clock, Calendar

Packaging

Product Size

170(L)*141(W)*41(H)mm

Product Net Weight

0.7KG






Our CMS software application:


For Windows PC real-time Surveillance


For IOS & Android OS Mobile Phone Surveillance




Our Mobile DVR project for vehicles






Certification:




Related Products:



Cooperation Terms:

Payment terms:  T/T, Western Union, MoneyGram, Paypal

Delivery time:  Within 5 working days after confirm the payment.

Warranty:  12 months

Shipping way:  DHL, UPS, FedEx, EMS, TNT etc.

Packing ways:




After-sales Service:

1. After you receive our products, we will assist you to realize how to use it.

2. Offer you the software if you use our mobile DVR.

3. Twelve months warranty
4. During our warranty, if you have any problem, we can help you to solve it.

5. During our warranty, you can return to us to repair it.

Remark: All qualified returns/replacement must be guided by us, or won’t accept your return without informing us in advance.
