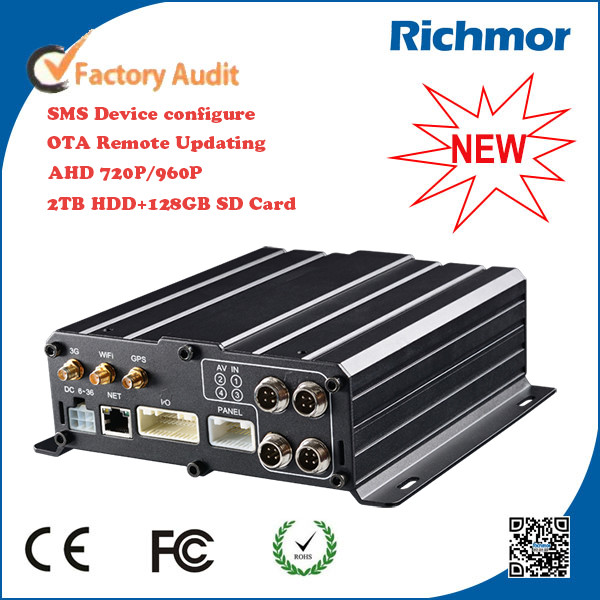

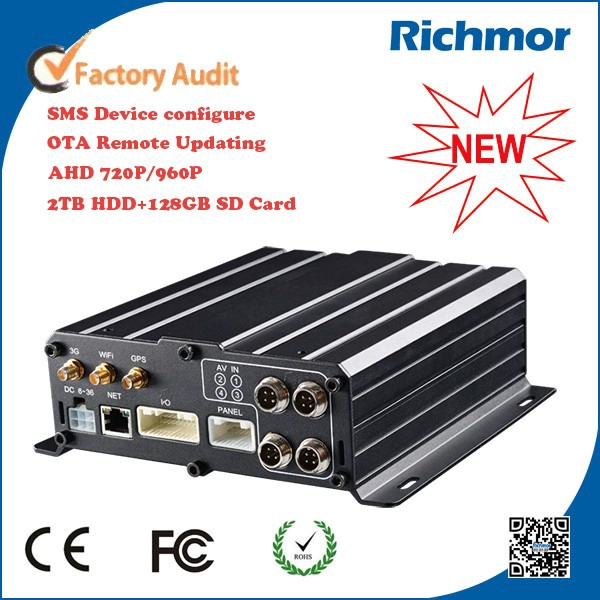

SD Card+HDD 3G GPS Mobile DVR For School Bus/Truck/Coach(RCM-MDR7104)

SD Card+HDD 3G GPS Mobile DVR For School Bus/Truck/Coach(RCM-MDR7104)

4 Channel,H.264,720P/D1/HD1/CIF
3G 4G GPS for optional
HDD(up to 2TB)+SD Card(up to 128GB) for saving recording
Support Alarm Automatically and Manual

Item				Parameter
OS				Linux
Language				English/Chinese/Customized
Video Compression				H.264 Compression
OSD				Overlays information such as date time and vehicle ID

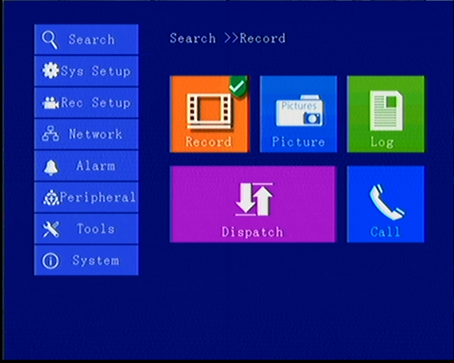

GUI	Graphical User Interface			Setup system parameters with the remote control.
Video Record System	Video Input			4CH 720P AHD input/SD input/ mixed input,aviation connector, 1.0Vp-p, 75Ω
	Video Output			2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, 4CH Screen view
	Preview			Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview
	Resolution			720P/D1/HD1/CIF, MAX:4 channels 720P and 4 channels D1
	Image Quality			0-7 levels, 0 is the highest level.
	Video Standard			PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional
	Record Mode			The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio	Audio Input			4CH Aviation Plug Input
	Audio Output			2CH,headphone connect at front panel, BNC Connect on Back panel
	Compression			G.726 compression, 8KB/s speed
Alarm Input				7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage
Alarm Output				2CH Alarm Output,Support Light/ Sound alarm sensor,Oil/Power cut off
Interface				3CH RS232, POS/Fuel Sensor/ LED Advertisement Connection
				2CH 485 Interface,Connect PTZ Camera
				2CH CAN interface
Wireless Transmission				Support Built in 3G transmission, WCDMA, CDMA2000,GPRS, EDGE； Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position				Support Built GPS/BD Module
		HDD		Max 2.5” 2TB HDD
Storage		SD Card		Max 128GB SD Card Mirror Recording Keep Data Safety
		Update		Support USB Updating, SD Card Updatin, OTA Remote Updating
		File Format		H.264
		File System		Special FAT32 File System
		USB		USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay		Video Search		Search By Record Time/Record Type etc
		Playback		Max support 4CH Replay /Stop/Fast/Slow at same time
				Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security				User/Admin 2 Level Different Password
Optional Functions			Voice Call	Support voice call each other
			Serial Expand	Support LED Advertisement Panel、Oil Sensor、 POS、Bus Station Broadcaster、 Car OBD,ect.external device
Voltage & Power			Power Management	Wide Voltage.Support Timed/Delay off
			Input Voltage	DC:+6V - +36V
			Power	Working ＜5W
			Temperature	-20℃ - +70℃
Working Environment			Humidity	20% - 80%
			Size	200 （D）* 187（W）* 62（H） mm
Others			Weight	1.90 Kg

Main Features

1. HIS Solution,H.264 Compression,support 4CH 720P AHD input/ 4CH analog standard definition Camera input/2CH HD + 2CH SD mixed input;

2. 3CH video output (2CH CVBS video, support front&rear panel output; VGA output for optional.)

3. Exclusive pre-allocate File System protect data completeness, prevent SD Card fragment,ensure date stablely and completely.

4. 8-36V wide voltage with low power consumption.

5. Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.

6. HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;

7. Support 2 USB interfaces, data backup and device upgrade.

8. Support 9CH alarm input (1CH analog input + 8CH IO alarm input ), 2CH independent alarm output.

9. Support 2 CAN interfaces.

10. Support HDD heating functions,can work in harsh environment.

11. Support GPS/BD/G-Sensor Extension modul;

12. Realize real-time monitor through 3G/4G;

13. Support WIFI module, can download data automatically.

14 Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

15. Support SMS remote configure/ control device;

16. OTA(On-The-Air) Device automatically upgrade function, can upgrade to updated version , maintenance is more convenient.

17. Support voice call function.

18. Support IOS/Android Phone Remote monitor
