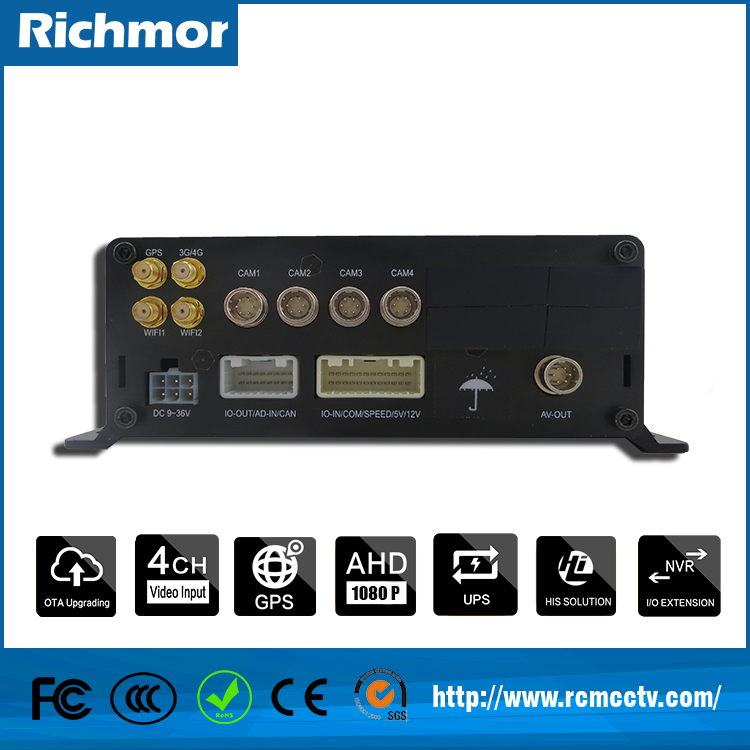

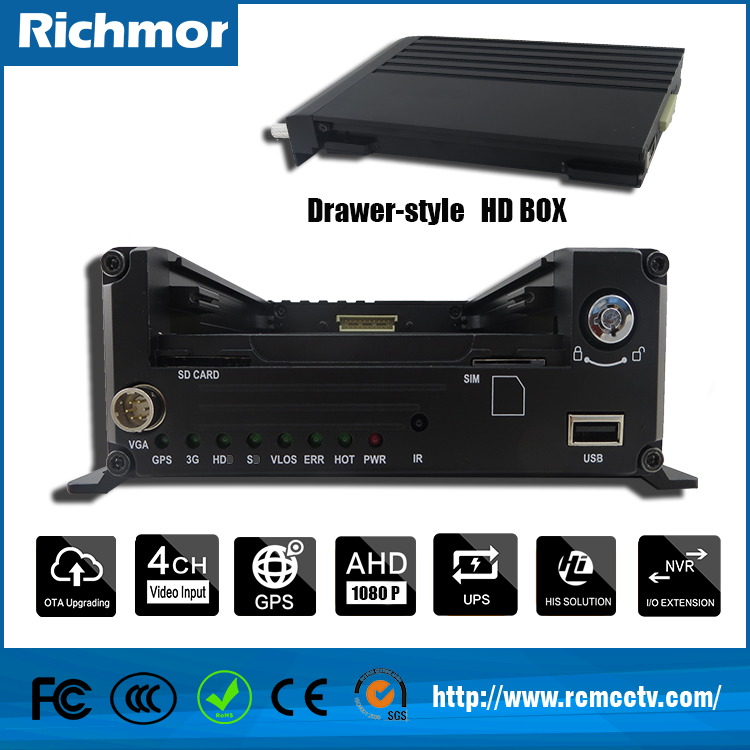

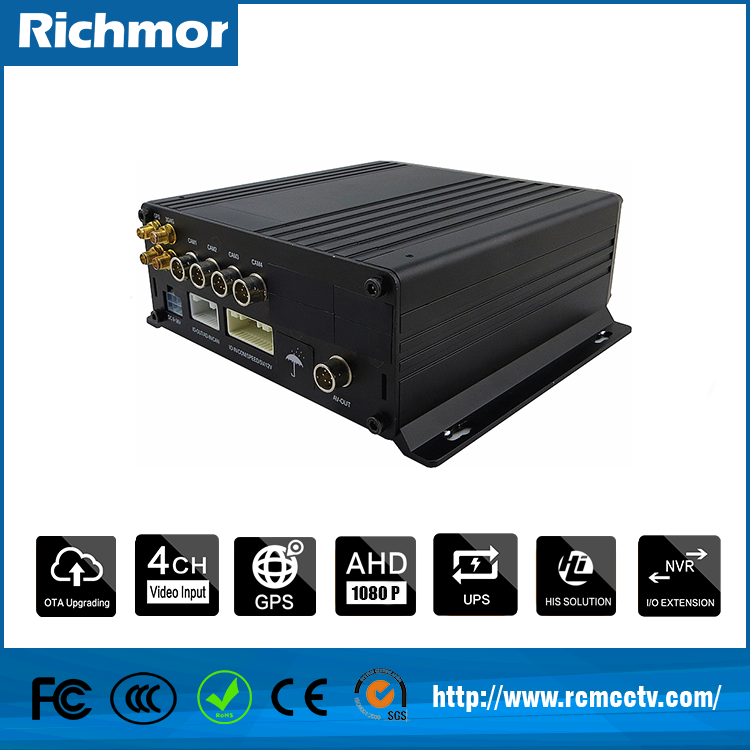

1080P NETWOTK 3G/4G HD 4CH MOBLIE NVR1080P NETWOTK 3G/4G HD 4CH MOBLIE NVR1080P NETWOTK 3G/4G HD 4CH MOBLIE NVR1080P NETWOTK 3G/4G HD 4CH MOBLIE NVR

1080P NETWOTK 3G/4G HD 4CH MOBLIE NVR

  • ◆ H.264, Multiple Stream Record, 4CH Video input,4CH Networking 1080P,
  • ◆ 1080P/720P/CIF/HD1/D1 Optional,
  • ◆ 6-38V wide voltage,Provide reverse voltage/overload/short circuit protection;
  • ◆ Support 12VDC/3Amp output voltage,power supply for Camera/Screen etc;
  • ◆ Watchdog abnormal restart function,protect SD Card and Record;
  • ◆ Exclusive File System protect data completeness,prevent SD Card fragment;
  • ◆ ACC Delay off, can set 24 hours;
  • ◆ Unique UPS Technology ensures the integrity of record
  • ◆ Auto Record/Manual Record/Alarm Record etc working mode
  • ◆ Support GPS/BD,3G/4G Module Optional,WIFI extend;
  • ◆ Strong Network,device configure via IE Web,Support SMS Get device information and configure;
  • ◆ Support Monitoring,Intercom, PTZ, Alarm,Over-speed,Geo Fence
  • ◆ 8CH IO Alarm input,2CH analog alarm input can linkage kinds of alarm;
  • ◆ 2CH CAN port, can obtain itself vehicle information
  • ◆ 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;
  • ◆ Support Local Auto-photo when alarm input.
  • ◆ Updated through SD or OTA Remote Automatic updating,more stable and convenient;
  • ◆ Support Phone Remote Monitor,Phone Calling etc;
  • ◆ Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc



Mega Pixels HD HDD MOBILE NVR—MNVR9204



 Easily Smart WIN8  Interface, saving time in device setting.




                 MAIN FEATURES

    H.264 Compression,4CH Real-time 720P/1080P High definition camera input.

2CH video output (1CH CVBS video, 1CH VGA output for optional.)

Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stable and complete.

8-36V wide voltage with low power consumption.

Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.

HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;

Support  2 USB interfaces, data backup and device upgrade.

Support  8CH alarm input (1CH Analog  + 7CH  IO Alarm input ), 2CH independent alarm output.

Support  1 CH CAN port.

Support HDD heating functions,can work in harsh environment.

Support GPS/BD/G-Sensor Extension modules;

Realize real time monitor through 3G/4G;

Support WIFI module, can download data automatically.

Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

Supporting the ministry of communications agreement.Support SMS remote configure/ control device;

    OTA(On-The-Air) Device automatically upgrade function, can upgrade to updated version , maintenance is more convenient.

Support voice call function.

Support IOS/Android Phone Remote monitor

High level aviation interface,easily installation and better shockproof, more stable;








Product Features:

◆ HIS Solution,H.264 Compression, Multiple stream recording, support 4CH 1080P AHD Mega pixels camera input;

◆ High quality real time recording,1080P/ 720P/CIF/HD1/D1 Optional, quality adjustable;

◆ Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;

◆ Support 12VDC output voltage,power supply for Camera/Screen etc;
◆ HDD+SD CARD record (support 2.5’’ HDD + max 128GB SD Card ),protect NVR from shock & Dust damage;
◆ Watchdog abnormal restart function,protect SD Card and Record;

◆ Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, and ensure the integrity of the data.

◆ ACC Delay off,can set 24 hours;

◆ Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 10-15s.

◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
◆ Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
◆ Support GPS/BD,3G/4G Module Optional,WIFI extend;
◆ Strong Network,phone device configure ,Support SMS Get device information and configure;
◆ Support Video&Audio Monitoring,Intercom, PTZ, Alarm,Over speed,Geo Fence etc through remote control platform;
◆ 7CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

◆ 2CH alarm output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc .

◆ 1CH CAN port, get the information of car.

◆ High level aviation interface,easily installation and better shockproof, more stable;
◆ Easily Smart GUI Interface, saving time in device setting;
◆ Strong Stable Application,Support Real-time monitor, talk-back,playback,record,picture snap etc;
◆ Updated through SD or OTA Remote Automatic updating,more stable and convenient;

◆ Support Phone Remote Monitor,3G Phone Calling etc;
◆ Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;

◆ Support Ministry of Transport Standard Agreement

◆ Be Customized according your request;




 Main Functions

Item

Parameter

OS

Linux

Language

Chinese/English/Others (can be customized)

Video Compression

H.264 Compression Mode

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Can connect to external LED screen. Setup system parameters with the remote control.

Video Record System

Video Input

4CH 1080p input ,aviation connector.

Video Output

1CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

1080p/720p/D1/HD1/CIF, MAX:4 channels 1080p

Video Quality

0-7 levels, 0 is the highest level, 7 is the lowest level.

Video Standard

CIF: 256Kbps ~ 1.5Mbps, multi levels video quality optional

HD1: 600Kbps ~ 2.5Mbps, multi levels video quality optional

D1:  800Kbps ~ 3Mbps, multi levels video quality optional

720P:4Mbps-6Mbps, multi levels video quality optional

1080P:4Mbps-8Mbps, multi levels video quality optional

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4CH

Audio Output

1CH

Compression

G.711 compression, 8KB/s speed

Alarm Input

8CH IO Alarm Input; Support alarm linkage function

Alarm Output

2CH power on/off  Alarm Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc

Communication Interface

2CH RS232, support extension device, such as POS machine, Oil Feul sensor, LED advertising screen , etc.

2CH 485 interface, can connect PTZ,etc.

1CH CAN interface.

Wireless transfer

Support Built-in 3G/4G network, WCDMA,CDMA2000,TDD-LTE,FDD-LTE...

TD-SCDMA Compatible with GPRS,EDGE

Position

Support Built GPS/BD Module,can make playback analysis of vehicle routing

G-Sensor

Support G-sensor

Video Storage

Storage

2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss

Upgrade

Support USB flash disk  updating,SD card upgrade , OTA remote upgrade automatically

File Format

.264 General video format

File System

Professional MNVR File System

USB

Front panel supports USB port, support USB flash disk upgrade to backup; hard disk box USB port, can back up video data

Video Playback

Video Search

Search video by Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast Forward/Fast Reverse at same time

Support x 2,x4,x8,x16. fast forward or fast backward play

Safety Management

User/Admin 2 Levels Different Passwords , support screen lock

Voltage & Power Consumption

Power Management

Adaptive wide power input, support Wide Voltage, Over-load、Over-voltage、Short Circuit、Reverse Protection..Support Time Setting/Delay power off

Voltage Input

DC:+8V ~ +36V

Voltage Output

+12V@2.5A,+5V@2.5A

Power-off Protection

UPS Technology,All video information can be saved automatically when the power is cut off, and make sure that all the files can not be damaged.

Power Consumption

Normal Working <5W

Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

others

Size

187(D)* 188(W)* 67(H) mm

Net Weight

1.8kg
