Vehicle Safety CCTV 4ch HDD mobile DVR/MDVR for lorry truck fleet security monitoring MDVR from RichmorVehicle Safety CCTV 4ch HDD mobile DVR/MDVR for lorry truck fleet security monitoring MDVR from Richmor

Vehicle Safety CCTV 4ch HDD mobile DVR/MDVR for lorry truck fleet security monitoring MDVR from Richmor

  •  product feature:
  • HDD +SD card h264 CCTV Mobile DVR for vehicle car bus fleet etc with 3g 4g GPS,WIFI G-sensor
  • Quick Details
  • Place of Origin: ShenZhen, China (Mainland)
  • Brand Name: Richmor/OEM
  • Product Name: Richmor-mdvr with HDD SD card storage
  • Professional Power Design for Vehicle: 6~48V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
  • Function: Support 3G,GPS,wifi,alarm etc.
  • Special Delay Power off circuit: support systerm continus running after vehicle power off.
  • Resolution: D1/HD1/CIF selectable.
  • System Protection: Saving the recording data when the power off, support HDD upgrading PTZ control: RS232 can turn to PTZ interface monitoring device: PC/Mobile phone
  • signal format: PAL/NTSC
  • record storage: max 2TB HDD& 128GB SD card
product specification:
Item parameter
Operating System Linux
Language English/chinese/customized
Video Compression H.264 Compression
OSD overlays information such as date time and vehicle ID
GUI Graphical user interface setup system parameters with the remote  control
Video Record System  video input     4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω
 video output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

resolution 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
image quality 1-4 levels, 1 is the highest level.
video standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

record mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.

Audio audio input 4CH Aviation Plug Input
audio output 2CH,headphone connect at front panel, BNC Connect on Back panel
compression G.726 compression, 8KB/s speed
Alarm Input 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera
Wireless Transmission

Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position Support Built GPS/BD Module
Storage HDD Max 2.5” 1TB HDD
SD Card Max 128GB SD Card Mirror Recording Keep Data Safety
update Support USB Updating, SD Card Updating,OTA Remote Updating
file format H.264
file system Special FAT32 File System
USB USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay video search Search By Record Time/Record Type etc
playback Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16.
                 Security User/Admin 2 Level Different Password
Optional Functions voice call Support voice call each other
TTS Voice broadcast Support TTS voice broadcast function.
serial expand

Support LED Advertisement Panel,Oil Sensor,

POS,Bus Station Broadcaster,Car OBD,ect.external device

Voltage & Power Power Management Wide Voltage.Support Timed/Delay off
Input Voltage DC:+6V - +36V
Output Voltage +12V~1.5A,+5V~1.5A
Power Working<5W
Working Environment Temperature -20℃ - +70℃
Humidity 20% - 80%
Others Size 200 (D)* 187(W)* 62(H) mm
Weight 1.90Kg

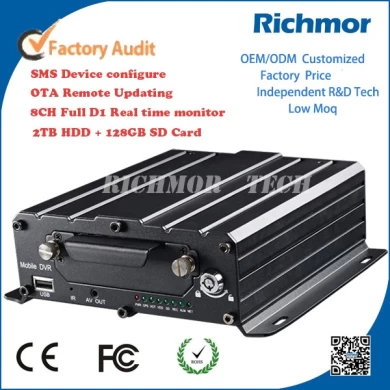

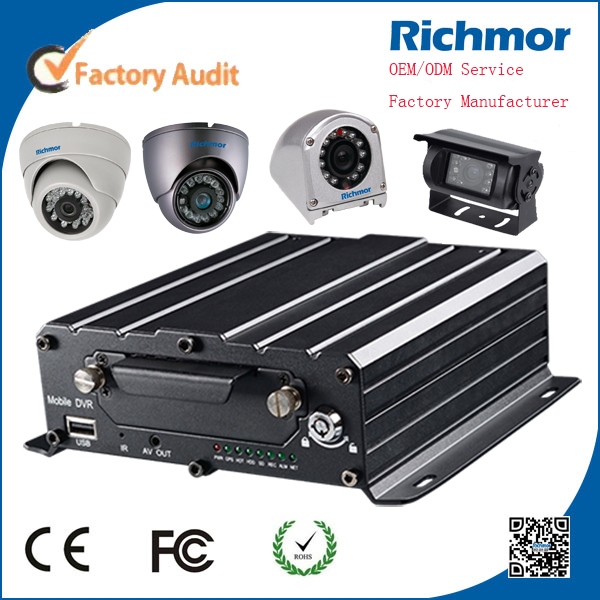

Product Show:

Client User Graph Interface

 our mdvr support mobile Client  monitoring like PC,mobile phone etc.
