Support PTZ remote control 4 channel HD & SD card Mobile DVRSupport PTZ remote control 4 channel HD & SD card Mobile DVRSupport PTZ remote control 4 channel HD & SD card Mobile DVR

Support PTZ remote control 4 channel HD & SD card Mobile DVR

  • Place of Origin:Guangdong China
  • Brand Name:Richmor
  • Model Number:RCM-MDR7104 Series
  • Video Compression:H.264
  • Recording Resolution:720P,CIF, HD1, D1
  • Storage:Max 2TB HDD & 128GB SD Card
  • Color:Black
  • Power Supply:DC:+6V ~+48V,UPS Technical
  • PTZ control:local or remote control
  • Temperature:-20°C ~ +70°C
  • Power Output:12VDC/3Amp
  • Support::3G,4G, GPS, WIFI,G-sensor for option

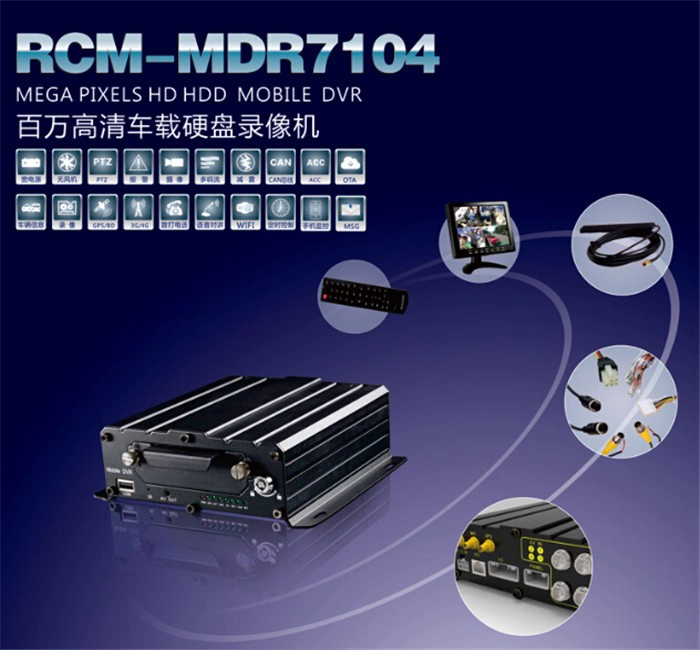

Support PTZ remote control 4 channel HD & SD card Mobile DVR
RCM-MDR7104 Series



Main Feature:


1. 4 channel HD & SD card Mobile DVR

2. Support 3G, 4G,GPS, WIFI, G-sensor, UPS function

3. Support PTZ remote control

4. Support real-time surveillance

5. Supports HD overwritten by days

6. Supports backup and upgrade with HD & SD card

7. Self recorvery after power reconnected

8. Stable aluminum alloy structure with shock absorber

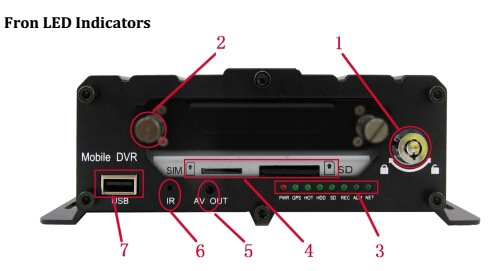

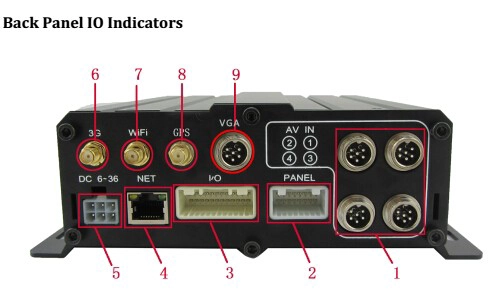

Pictures:


4 channels GPS 3G sim card car mobile dvr




4 channels GPS 3G sim card car mobile dvr



4 channels GPS 3G sim card car mobile dvr


RCM-MDR7104 Parameter Sheet

Item

Parameter

OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/

mixed input,aviation connector, 1.0Vp-p, 75Ω

Video Output

2CH CVBS+ VGA output for optional,

1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,

4CH Screen view

Preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF,

MAX:4 channels 720P and 4 channels D1

Image Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps,

8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps,

8 level video quality optional;

D1:  800Kbps ~ 3Mbps,

 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH Aviation Plug Input

Audio Output

2CH,headphone connect at front panel,

BNC Connect on Back panel

Compression

G.726 compression, 8KB/s speed

Alarm Input

7CH Alarm Input,1CH AD Input,

impulse speed input,Alarm Linkage

Alarm Output

2CH Alarm Output,Support Light/

Sound alarm sensor,Oil/Power cut off

Interface

3CH RS232, POS/Fuel Sensor/

LED Advertisement Connection



2CH 485 Interface,Connect PTZ Camera

2CH CAN interface

Wireless Transmission

Support Built in 3G transmission,

WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position

Support Built GPS/BD Module



HDD

Max 2.5”  2TB HDD

Storage

SD Card

Max 128GB SD Card Mirror Recording Keep Data Safety

Update

Support USB Updating, SD Card Updatin,

OTA Remote Updating

File Format

H.264

File System

Special FAT32 File System



USB

USB Interface on Front Panel for

data back up by U Disk,Hard Disk

Record Replay

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward

play at the speed of: x 2,x4,x8,x16.

Security

User/Admin 2 Level Different Password

Optional Functions

Voice Call

Support voice call each other

Serial Expand

 Support LED Advertisement Panel、Oil Sensor、

POS、Bus Station Broadcaster、 Car OBD,ect.external device

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Input Voltage

DC:+6V - +36V

Power

Working <5W

Temperature

-20℃ - +70℃

Working Environment

Humidity

20% - 80%

Size



200 (D)* 187(W)* 62(H) mm

Others

Weight

1.90 Kg

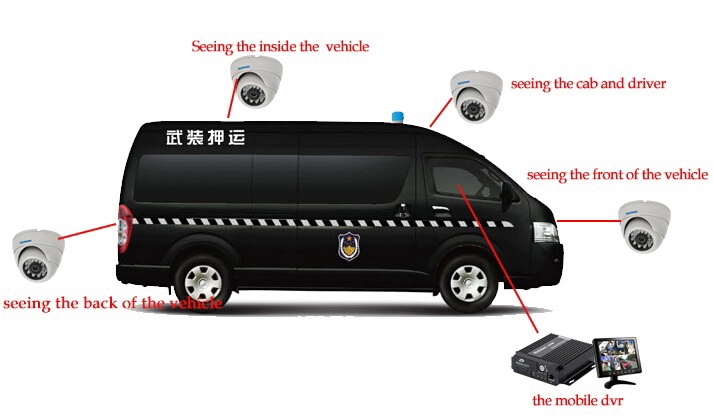

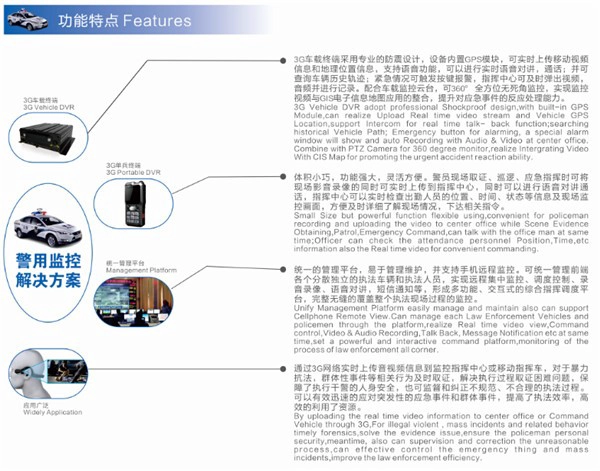

Richmor Police car  Solution

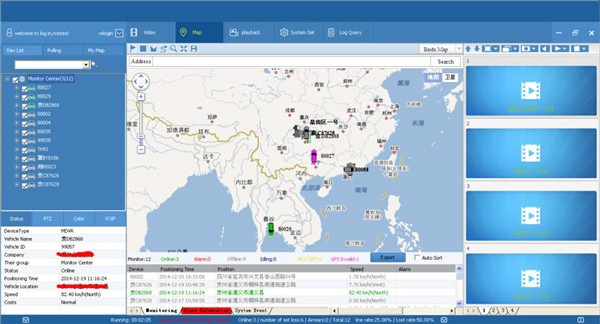

For Windows PC real-time Surveillance






For IOS & Android OS Mobile Phone Surveillance

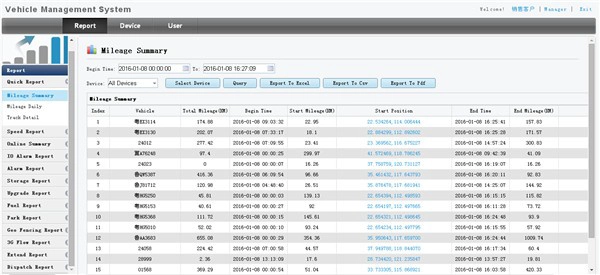

Mileage Summary






Our Mobile DVR project for vehicles












Certification:






Related Products:



Cooperation Terms:

Payment terms:  T/T, Western Union, MoneyGram, Paypal

Delivery time:  Within 5 working days after confirm the payment.

Warranty:  12 months

Shipping way:  DHL, UPS, FedEx, EMS, TNT etc.

Packing ways:



After-sales Service:


1. After you receive our products, we will assist you to realize how to use it.

2. Offer you the software if you use our mobile DVR.

3. Twelve months warranty
4. During our warranty, if you have any problem, we can help you to solve it.

5. During our warranty, you can return to us to repair it.


Remark: All qualified returns/replacement must be guided by us, or won’t accept your return without informing us in advance.
