Support IOS/Android Phone Remote monitor MOBILE DVR
- 5CH Million Pixels video surveillance, video recording and playback (4CH real-time 720p Analog HD input + 1CH 1080P network IP Camera input)
- 3CH video output (2CH CVBS video output,Support front and rear output; 1CH VGA output for optional )
- Exclusive pre-allocate DVR Special File System Technology
- Support 2 USD ports, data backup and equipment upgrades.
- Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.
- Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient

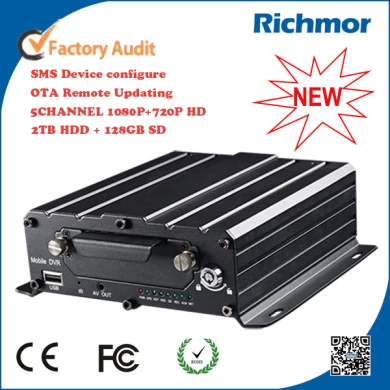

Support IOS/Android Phone Remote monitor Mobile DVR
(RCM-MDR 7105 Series)
The most outstanding feature for this series DVR is:
-------5CH Million Pixels video recording which means
(4CH real-time 720p Analog HD input + 1CH 1080P network IP Camera input)
RCM-MDR 7105 Series
3G, GPS, G-Sensor, IPC
3G, 4G, GPS, G-Sensor, IPC
3G, WIFI, GPS, G-Sensor, IPC
3G, 4G, WIFI, GPS, G-Sensor, IPC
PC VIEWING CLIENT SOFTWARE
*HIS Solution,H.264 Compression,support 5ch Million Pixels video surveillance, video recording and playback (4CH real-time 720p million Analog HD input and analog standard definition camera + 1CH 1080P network camera input);
*3CH video output (2CH CVBS video output,Support front and rear output; 1CH VGA output for optional )
*Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, solving storage file system crash, data loss and cannot find storage media and file garbled, ensure the integrity of the data.
*6-36V wide voltage with low power consumption. Support Reverse Protection,over-voltage/over-current protection.Output max to 10Amps current, support 12V & 5V peripheral equipment power supply. Ultra low power design;
*Unique UPS Technology ensures the integrity of record when power failure occurs,even can last for 8-10s.
*HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
*Support 2 USD ports, data backup and equipment upgrades.
*Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.
*Support HDD heating functions,can work in harsh environment.
*Support GPS/BD/G-Sensor Extension module;
*Realize real-time monitor through 3G/4G;
*Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
*Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient
*Support IOS/Android Phone Remote monitor
*High reliability aviation connectors, high cost performance, stable and reliable.
|Video Compression||H.264 Compression|
|OSD||Overlays information such as date time and vehicle ID|
|GUI||Graphical User Interface||Setup system parameters with the remote control.|
|Video Record System||Video Input||4CH 720P Analog High Definition video+1CH 1080P digital video input ,aviation connector, 1.0Vp-p, 75Ω|
|Video Output||2CH CVBS output+1CH VGA output for optional,1.0Vp-p, 75Ω,Support 1CH Full Screen,4CH Screen view|
|Preview||Support 1 channel and 4 channels preview, 5 channels splice preview Support Manual/Alarm Trigger full screen preview|
|Resolution||1080P/720P/D1/HD1/CIF, MAX:4 channels of 720P + 1080P / 4 channels of D1|
|Image Quality||1-4 levels, 1 is the highest level.|
|Video Standard||PAL: 100f/s , CCIR625 line,50field;|
|NTSC: 120f/s, CCIR525 line,60field;|
|CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;|
|HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;|
|D1: 800Kbps ~ 3Mbps, 8 level video quality optional;|
|720P: 4Mbps-6Mbps, multi level video quality optional|
|Record Mode||The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.|
|Audio||Audio Input||4CH Aviation Plug Input|
|Audio Output||2CH,headphone connect at front panel, BNC Connect on Back panel|
|Compression||G.726 compression, 8KB/s speed|
|Alarm Input||7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage|
|Alarm Output||2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off|
|Interface||3CH RS232, POS/Fuel Sensor/LED Advertisement Connection|
|2CH 485 Interface,Connect PTZ Camera|
|Wireless Transmission||Support Built in 3G transmission, WCDMA,CDMA2000,GPRS, EDGE;|
|Built in 4G module optional, TDD-LTE, FDD-LTE|
|GPS Position||Support Built GPS/BD Module|
|HDD||Max 2.5” HDD|
|Storage||SD Card||Max 128GB SD Card Mirror Recording Keep Data Safety|
|Update||Support USB Updating, SD Card Updating,OTA Remote Updating|
|Special FAT32 File System|
|USB||USB Interface on Front Panel for data back up by U Disk,Hard Disk|
|Record Replay||Video Search||Search By Record Time/Record Type etc|
|Playback||Max support 4CH Replay /Stop/Fast/Slow at same time|
|Support forward and backward play at the speed of: x 2,x4,x8,x16.|
|Security||User/Admin 2 Level Different Password|
|Optional Functions||Voice Call||Support voice call each other|
|TTS Voice Broadcast||Support TTS voice broadcast function.|
|erial Expand||Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device|
|Voltage & Power||Power Management||Wide Voltage.Support Timed/Delay off/ over-load/Reversing connection/voltage shortage/short circuit etc.|
|Input Voltage||DC:+6V - +36V|
|Working Environment||Temperature||-20℃ - +70℃|
|Humidity||20% - 80%|
|Ohters||Size||200 (D)* 187(W)* 62(H) mm|
HIS Solution,H.264 Compression,Multiple Streams record ,5CH AHD Video input, 4CH real-time 720p million Analog HD input and analog standard definition camera + 1CH 1080P network camera input,
High quality real time recording, 1080P/720P/CIF/HD1/D1 Optional, quality adjustable;
Professional Car Power Design,6-36V wide voltage,Provide reverse voltage/over-load/short circuit protection, to meet kinds of car application;
Support 12VDC output voltage,power supply for Camera/Screen etc;
Max 2TB HDD + 128GB SD Card Mirror Recording,protect DVR from shock & Dust damage;
Watchdog abnormal restart function,protect SD Card and Record;
Exclusive Pre-allocated Vehicle File System protect data completeness ;
ACC Delay off,can set 24 hours;
Unique UPS Technology ensures the integrity of record when power failure occurs,even can last for 10-15s.
Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
Support GPS/BD,3G/4G Module Optional,WIFI extend;
Strong Network,device configure via IE Web,Support SMS Get device information and configure;
Support Monitoring,Two-way Intercom, PTZ, Alarm,Over-speed,Geo Fence etc through remote control platform;
8CH IO Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;
2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;
High level aviation interface,easily installation and better shockproof, more stable;
Support Local Auto-photo when alarm input.
High reliable aviation connectors input/output, easy installation,stronger anti-vibration.
Easily Smart GUI Interface, saving time in device setting;
Strong Stable Application,Support 3G/4G Real-time monitor, talk-back,playback,record,picture snap etc;
Updated through SD or OTA Remote Automatic updating,more stable and convenient;Support Phone Remote Monitor,Phone Calling etc;
Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;
Support Ministry of Transport Standard Agreement
Be Customized according your request;
CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system
Video & Audio Monitoring Online Vehicle GPS
Satellite Map Video Storage
PTZ control Tracking Display Picture Snapshot Voice intercom
Q: During playback, the map doesn't show?
A: Possible reasons are as follows;
1.Net cable did not connect to PC;
2.Net works, but the computer can not get to the Internet;
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they
will delete the original video records respectively.
Q: The device was opened, HDD was installed, but the device can not record successful.
A: 1.Check the HDD/SD Card was formatted or not, the unformatted HH/SD Card
can not be used. Enter into the Main Menu – System Setup – Formatting the new
installed HDD/SD Card.
2. If the recording channel is closed, if set the timing recording, it can not recording
when it beyond the period of timing recording.
3. If the HDD is connect well, if the HDD/SD light is on.
