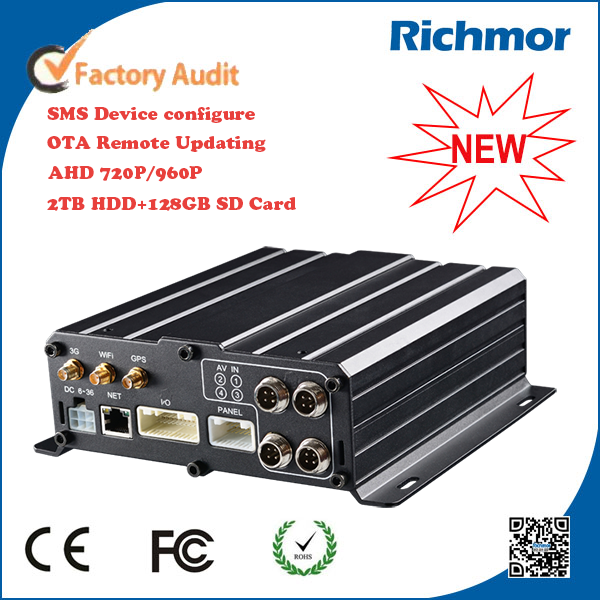

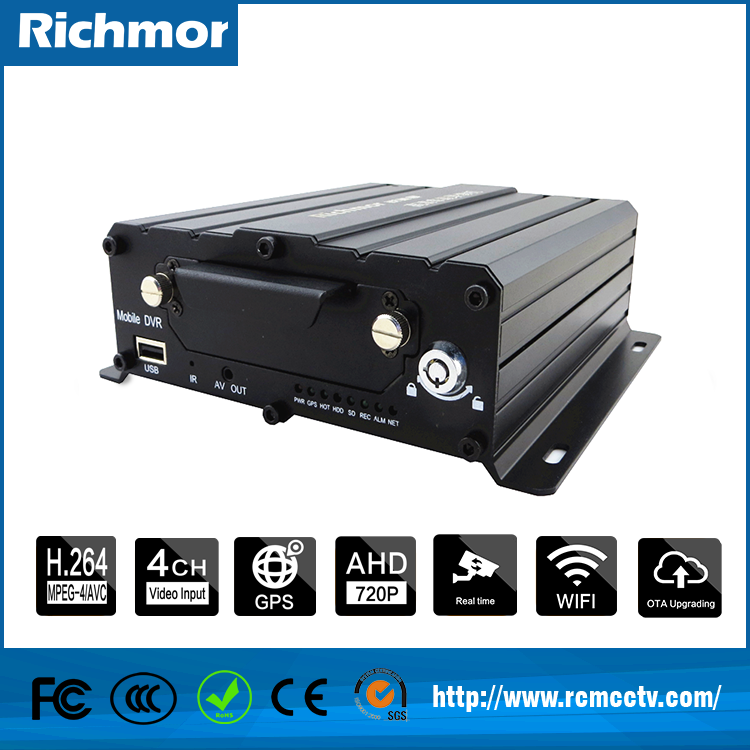

Richmor 4CH Motion Detection MINI DVR,128GB Storage Factory Direct Sale

  • outlines
  • His solution, H.264 compression, support 4-channel input and AHD AHD 720P camera input.
  • Exclusive pre-allocate File System to protect data integrity, prevent fragment SD card, date and ensure stablely completely.
  • 6-36V wide voltage with low power consumption.
  • Unique UPS Technology ensures the completeness of the record, if a power failure occurs, it is possible even for 8-10s.HDD + SD Card Storage (Supports 2.5 "HDD up to 128 g SD Card) protects from impact and dust damage, supports data backup USB port and device update;
  • Support functions HDD heater can operate in harsh environments.
  • Support GPS / BD / G-Sensor Extension module;
  • Remember, realtime monitor via 3G / 4G;
  • Support for Broadcast / Intercom / Text sent etc, you can add the oil sensor / temperature sensor / POS / LED Advertising Panel;
  • Support for IOS / Android phone remote monitoring

2015 720P / 1080P AHD 4 CH H.264 2TB HDD Mobile DVR for truck bus taxi car


Subject number. Function Note  optional features
RCM-MDR7104XXXI Basic Recording G-Sensor 1.H.264 video compression, support 4CH real-time 720p video recording.
2.Support maximum number of megapixels real-time HD video recording, 960H / 720P / D1 / HD1 / CIF for optional, adjustable Frame Rate Quality.
3.Support Max 2TB HDD + 128 GB memory card SD video Mirror, shock absorption technology.
4.Support 3G / 4G networks
5.Support GPS WIFI G-sensor module.
6.Support External WIFI module
7.2 USB 2.0 high-speed.
8.8CH alarm input, 2CH alarm output, support Acousto optical signaling weave, cut off power / fuel oil, etc.
Delivery 9.Power: Support 8V - 36V
10.Dimension: 187 (W) X62 (H) x200 (D) mm
11.Weight: 1.9 kg
12.Support Dual Mode WIFI: WIFI 5G and 2.4G WIFI
4G (TDD / FDD-LTE) WIFI Dual Modes: 5.0 g WiFi and 2.4G WIFI hotspot AP
RCM-MDR7104WGXX  3G GPS G-Sensor







win 8 platform login interface_.jpg

platform user interface 2_.jpg


4CH 4G / 3G DVR 7104 Series Item











English / Chinese / tailor

video compression

H.264 compression


Overlapping information such as date and time of vehicle ID


Graphical user interface

installation of system parameters with remote control.

video Record


video input

4CH 720P AHD entry, aviation connector, 1.0Vp-p, 75Ω

video Onput

1 CVBS, 1.0Vp-p, 75Ω, aviation support 1CH Full Screen, 4CH view Screen


Support one channel and 4 channels preview.,

Support Manual / Alarm Trigger full-screen preview


720P / D1 / HD1 / CIF MAX: 720P 4 channels and 4 channels of D1

Image quality

1-4 levels, one is at the highest level.

video Standard

PAL: 100F / s, CCIR625 line, 50field;

NTSC: 120f / s, CCIR525 line, 60field;

CIF: 256kbps ~ 1.5Mbps, 8 levels of video quality, optional;

HD1: 600kbps ~ 2.5Mbps, 8 levels of video quality, optional;

D1: 800kbps ~ 3 megabytes, 8 levels of video quality, optional;

720P: 4Mbps-6 Mbps, multi-level video quality optional

recording mode

The default setting is automatic recording after switching.

The timer recording, alarm triggered recording, and manual recording are supported.


audio input

4CH Aviation Plug Input

audio output

2CH headphones connected to the front panel BNC connections on the back panel


G.726 compression, 8KB / s speed

alarm Input

7 CH alarm input, 1CH AD input, pulse input speed, Alarm Link

alarm output

2CH alarm output, alarm sensor Support Light / Sound, oil / Power cut


3CH 232 POS / fuel sensor / LED Advertising Connection


1CH 485 Connect PTZ cameras

wireless transmission

Support gearbox built in 3G, WCDMA, CDMA2000, GPRS, EDGE;

Built in 4G optional module, TDD-LTE, FDD-LTE

GPS position

Built-in support for GPS / BD Module



Max 2.5 "1TB HDD

Storage space

SD card

Max 128 gigabytes SD card Mirror Recording Keep Safety Data


Support USB Update, SD Card Update, OTA Remote Update

file format


file system

Special FAT32



USB interface on the front panel for data backup via U disk, hard disk

Record Replay

video Search

Search by Time Record / Record Type etc


Maximum support 4CH Replay / Stop / Fast / Slow at the same time

Support for forward and reverse play speeds: x2, x4, x8, x16.


User / Administrator Level 2 different password

optional features

voice call

Support for voice calls between them

TTS voice Broadcast

Support TTS voice broadcast feature.

Serial Expand

 Support LED Advertising Panel, oil sensor,

POS station Bus Station, Car OBD device ect.external

Voltage & Urine

power management

Wide Voltage.Support Timed / Delay off

input voltage

DC: 6V + - + 36V

output voltage

~ 1.5A + 12V, + 5V ~ 1.5A


Working & lt; 5W

Working environment


-20 ℃ - + 70 ℃


20% - 80%




200 (D) * 187 (W) * 62 (H) mm


1.90 kg




Product applications









cases product





PC & Phone monitoring

CMSV6 Interface

New Software Map


Video Interface


                           CMSV6 to mobile

        They have everything in the palm of your hand

                                 real-time monitoring via mobile phone

                                                            Support iPhone, Android, iPad system

CMS software 02

      Video & Audio GPS monitoring Vehicle Online

    satellite maps             video Storage

      PTZ control              Tracking Display Picture image Voice intercom
