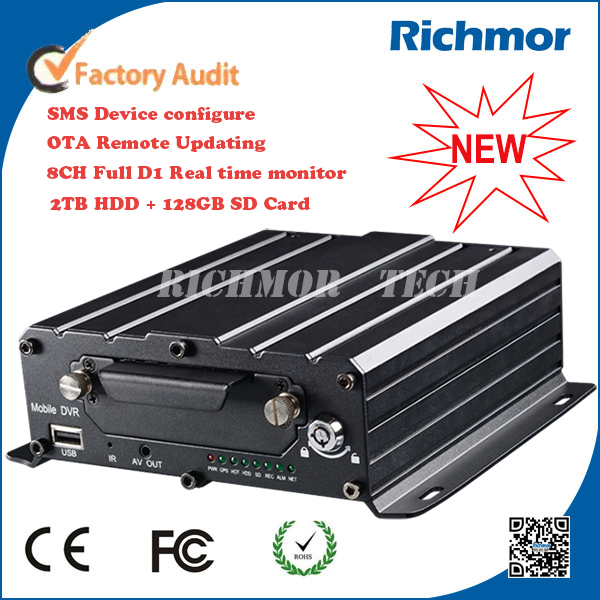

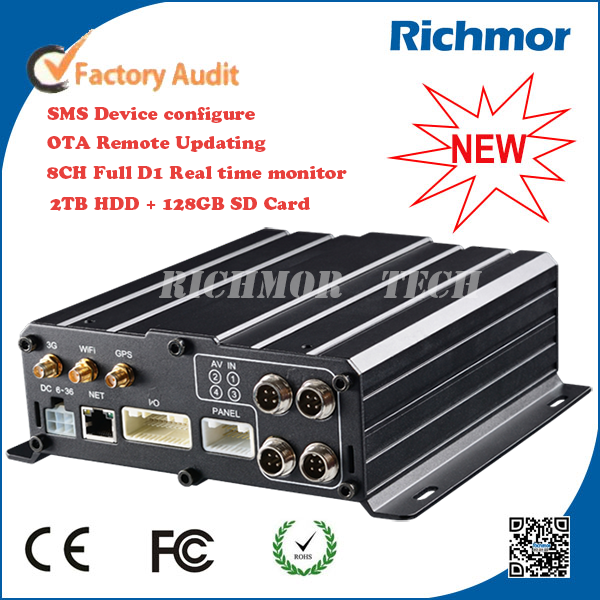

RICHMOR 8 CHANNEL 4G FULL D1 2TB+128GB HDD Mobile DVR WITH 3G/4G WIFI GPS
- SALES POINTS
- 8CHANNEL 4G FULL D1 2TB+128GB HDD Mobile DVR H.264 Compression,support 8CH D1 real-time video recording ;
- 3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).
- Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
- Support 2 USB ports, data backup and equipment upgrades.
- Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.
- Support OTA Device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient
8 CHANNEL 4G FULL D1 2TB+128GB HDD Mobile DVR
Main Features
HIS Solution,H.264 Compression,support 8CH D1 real-time video recording ;
3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).
Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
8-36V wide voltage with low power consumption.
Unique UPS Technology ensures the integrity of record when power failure occurs,even can for 8-10s.
HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
Support 2 USB ports, data backup and device upgrade.
Support 9CH alarm input (1CH analog input + 8CH IO alarm input ), 2CH independent alarm output.
Support 2CH CAN interface.
Support HDD heating functions,can work in harsh environment.
Support GPS/BD/G-Sensor Extension module;
Realize real-time monitor through 3G/4G;
Support WIFI module, can download data automatically.
Support SMS remotely configure/control device;
Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
Support voice call function.
Support OTA (On-The-Air) function, device can automatically update the new version, more convenient to maintain.
Support IOS/Android Phone Remote monitor.
Specifications
| Item | Parameter | |
| OS | Embeded Linux | |
| System Language | English/Chinese/Customized | |
| Video Compression | H.264 Video Compression | |
| OSD | Overlays information such as date time and vehicle ID | |

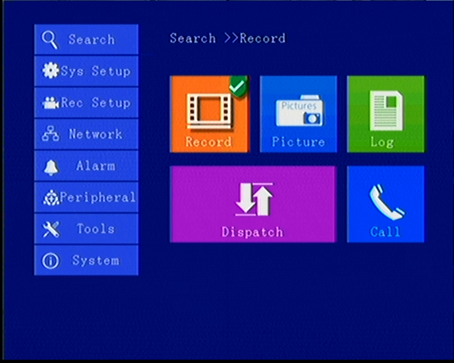

| GUI | Graphical User Interface | Support externally connect monitor screen. Setup system parameters with the remote control. |
| Video Record System | Video Input | 8CH standard definition input,aviation connector, 1.0Vp-p, 75Ω |
| Video Output | 2 CVBS output+ VGA output(Optional) , 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen,9CH screen. | |
| Preview | Support 1 channel ,4 channels and 9 channels preview.,Support Manual/Alarm Trigger full screen preview | |
| Resolution | D1/HD1/CIF, MAX: 8 channels D1. | |
| Video Quality | 0 -7 levels, 0 is the highest level. | |
| Video Standard | PAL: 100f/s , CCIR625 line,50field; | |
| NTSC: 120f/s, CCIR525 line,60field; | ||
| CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; | ||
| HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; | ||
| D1: 800Kbps ~ 3Mbps, 8 level video quality optional; | ||
| Record Mode | The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. | |
| Audio | Audio Input | 8CH Aviation Connector |
| Audio Output | 2CH, headphone connect at front panel, BNC Connect on Back panel | |
| Audion Compression | G.726 compression format, 8kb/s | |
| Alarm Input | 7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage | |
| Alarm Output | 2CH alarm Output,Support Light/Sound alarm sensor,Oil/Power cut | |
| Interface | 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection | |
| 1CH 485 Interface,Connect PTZ Camera | ||
| Wireless | Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; | |
| Built in 4G module optional, TDD-LTE, FDD-LTE | ||
| GPS | Support GPS | |
| Storage | HDD | Max 2.5” 2TB HDD |
| SD | Max 128GB SD Card Mirror Recording Keep Data Safety | |
| Updating | Support USB Updating, SD Card Updating,OTA Remote Updating | |
| File Format | 0.264 | |
| File System | Special FAT32 File System | |
| USB | USB Interface on Front Panel for data back up by U Disk,Hard Disk | |
| Video Replay | Video Search | Search By Record Time/Record Type etc |
| Playback | Max support 4CH Replay /Stop/Fast/Slow at same time | |
| Support forward and backward play at the speed of: x 2,x4,x8,x16 | ||
| Power Consumption | Power Management | Wide Voltage.Support Timed/Delay off |
| Voltage Input | DC:+6V ~ +36V | |
| Voltage Output | +12V-2.5A,+5V-2.5A | |
| Power | Working <5W | |
| Working Environment | Temperature | -20℃ to +70℃ |
| Humidity | 20% to 80% | |
| Security | Password | User/Admin 2 Level Different Password |
| Other | Size | 200 (D)* 187(W)* 62(H) mm |
| Net Weight | 1.90 Kg | |
| Optional Functions | Voice Call | Support voice call each other |
| Option | TTS Voice Broadcast | Support TTS voice broadcast function. |
| Serial Expand | Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect. external device | |

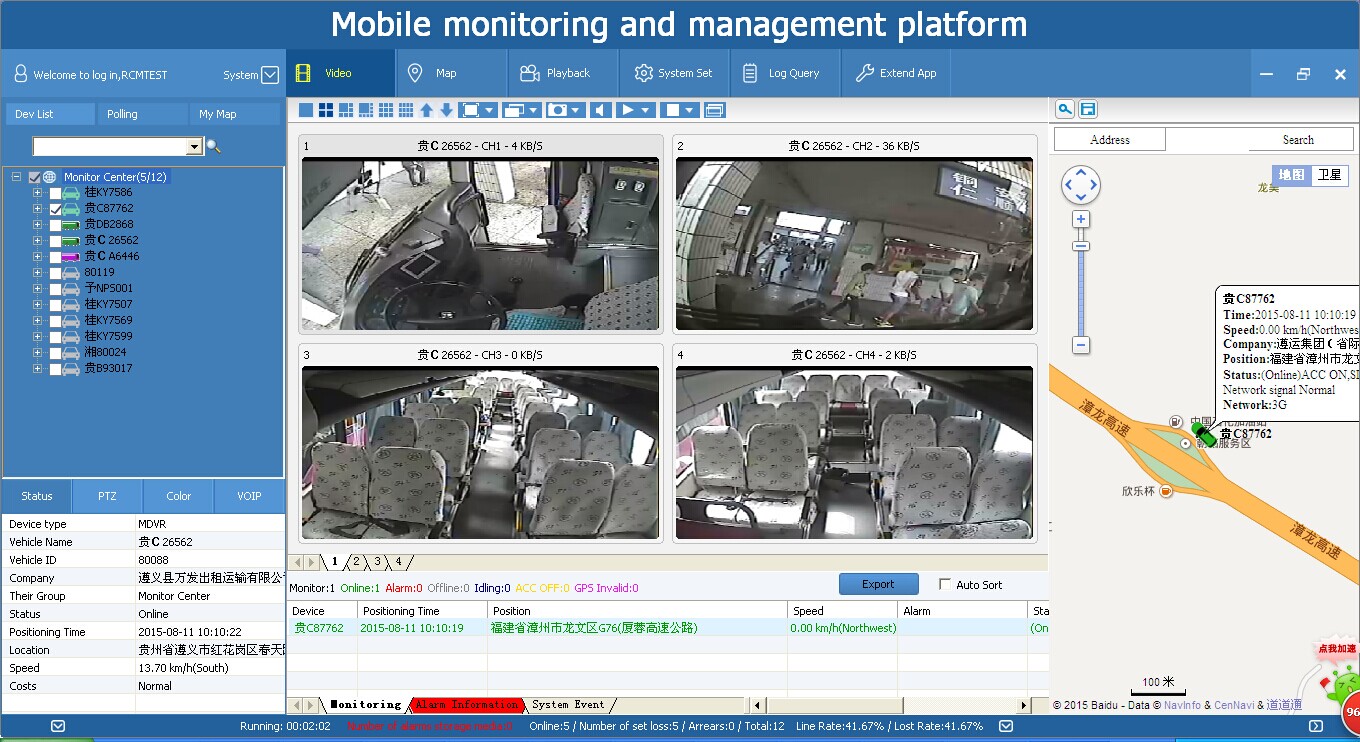

CMSV6 Interface
CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system
Video & Audio Monitoring Online Vehicle GPS
Satellite Map Video Storage
PTZ control Tracking Display Picture Snapshot Voice intercom
Q: During playback, the map doesn't show?
A: Possible reasons are as follows;
1.Net cable did not connect to PC;
2.Net works, but the computer can not get to the Internet;
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they
will delete the original video records respectively.
Q: The device was opened, HDD was installed, but the device can not record successful.
A: 1.Check the HDD/SD Card was formatted or not, the unformatted HH/SD Card
can not be used. Enter into the Main Menu – System Setup – Formatting the new
installed HDD/SD Card.
2. If the recording channel is closed, if set the timing recording, it can not recording
when it beyond the period of timing recording.
3. If the HDD is connect well, if the HDD/SD light is on.
CAMERA Accessory
Shipping
Strong cooperated with DHL/UPS Etc for fast and safety delivery.
a. 2-5 days after payment cleared for sample order.
b. 5-10 days after payment cleared depends on order quantity for bulk order.
