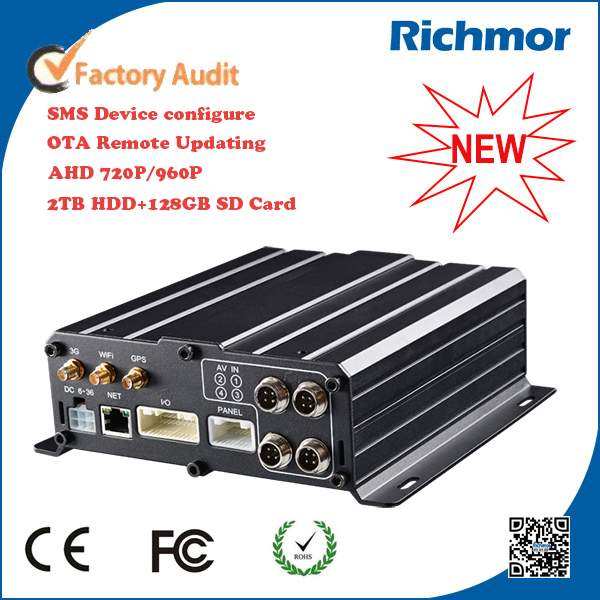

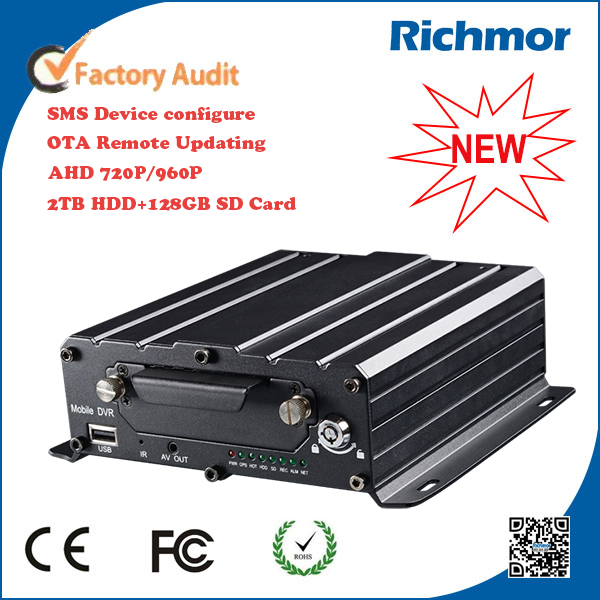

RCM brand 2TB HDD 3G/4G WIFI GPS G-sensor Vehicle Mobile DVR 4CH AHD 960P/720P Realtime MDVRRCM brand 2TB HDD 3G/4G WIFI GPS G-sensor Vehicle Mobile DVR 4CH AHD 960P/720P Realtime MDVR

RCM brand 2TB HDD 3G/4G WIFI GPS G-sensor Vehicle Mobile DVR 4CH AHD 960P/720P Realtime MDVR

  • 4 Channel,H.264, AHD and D1
  • 3G GPS for optional
  • HDD(up to 2TB)+SD Card(up to 128GB) for saving recording
  • RJ45 Port, PTZ remotely control
  • Support 3G/4G WIFI for GPS tracking
  • Support AHD 960P/720P for video input
RCM brand 2TB HDD 3G/4G WIFI GPS G-sensor Vehicle Mobile DVR 4CH AHD 960P/720P Realtime MDVR (RCM-MDR7104 series)

HDD Mobile DVR's Specification:

1. Superhigh anti-shock, water-proof, dust-proof functions, easy installation

2. Support double data backup (Very Safe)

3. 6 Alarm Line, Record left turn, right turn and brake

4. Control fuel off/on remotely

5. Over-load, over-current, reverse, ESD, power-off protection

6. Antomatic ON/OFF setup, can set many time periods.

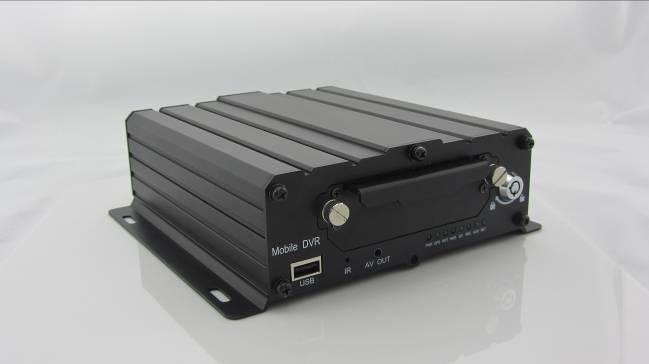

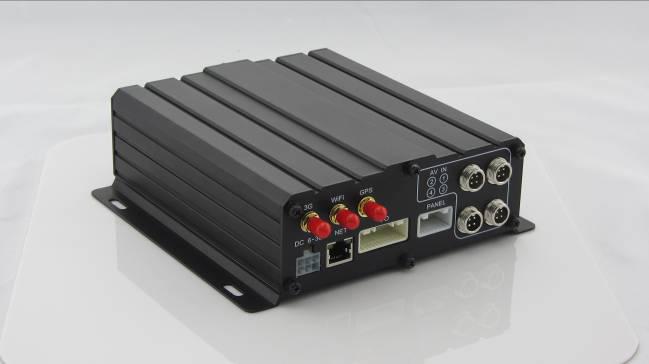

HDD Mobile DVR's Pictures:






HDD Mobile DVR's Paramter:

Item

Parameter

A&V Input

4 channel, aviation connector

A&V Output

1 channel, aviation connector

Video compression

H.264

Resolution

D1/HD1/CIF selectable

Video Frame rate

100 fps (PAL),120fps(NTSC),50fps(4*D1)

Recording

Fire recording, time recording, alarm recording

Storage

SD Card and HDD Support

Alarm

1CH alarm; alarm and recording at the same time

Output Voltage

12V

playback

1-4 channel playback

Network

RJ45, Ethernet interface,Wired/Wireless networks,

PTZ control

RS232

GPS

Support, recoding route, speed, position of vehicle

G-SENSOR

Support, recording vehicle direction state and alarm

Battery

Wide Voltage: 6V~48V(70V instant voltage)

Power

2.4W

System

Embedded full-time multitask control system

Working environment

Working temperature: -20C°to 50C°,Working humidity: <90%;

storage  temperature: -30C to 70C,Storage humidity<90%

Dimensions

193mm*200mm*53mm  1.5kg

Language

Chinese, English........

Backup

SD Cards and 3G Back Up

Wireless Transmission

GPRS,EDGE,CDMA,WIFI,3G ( EVDO,WCDMA,CDMA2000 ) optional


Powerful Software and Cases:


HDD Mobile DVR's Certification:

Richmor Other Products: P2P IP Camera
HDD Mobile DVR's Packing:

HDD Mobile DVR's Shipping Item:

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;
2. Delivery Time: 3-7 days for samples; negoniation for batch goods.

Payment Terms:
1. Payment: T/T, Western Union, PayPal; 30% deposits; 70% balance before delivery.
2. MOQ: 1pcs
3. Warranty : 1years
4. Package Informations: 1 pcs per box, brand packing, netural packing and customized packing
