Made in china MAX 128 GB Dual SD Card SIM Card mobile DVR with phone view

  • Outstanding Features
  • 4CHANNEL 4G  FULL D1 2TB+128GB HDD Mobile DVR H.264 Compression,support 4CH 720P real-time video recording ;
  • 3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).
  • 3G, WIFI, GPS tracking optional 4ch mobile dvr,
  • Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
  • Support 2 USB ports, data backup and equipment upgrades.
  • Support 9CH alarm input (1CH Analog input + 4CH IO alarm input),2CH Independent alarm output.
  • Support OTA Device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient

Made in china 4g 3g gps ahd SIM Card mobile DVR with phone view

(RCM-MDR 7104 Series)



Product features

4CH gps 3g 4g wifi g-sensor mobile dvr with ahd resolution



1. H.264 Compression Mode, support 4CH real-time 720P Mega Pixel AHD input and Analog Standard Definition camera input, or 2ch HD input + 2CH SD input.

2. Exclusive pre-allocate DVR Special File Systerm Technology, solving repeatedly wipe cause file fragmentation, solving SD Card file system collapse, data loss and cannot find SD CARD and file garbled, ensure the integrity of the data.

3. 8-36V Adaptive Wide Voltage input, Super low Power Consumption Design;

4. HDD+SD Card storage( maximum support 2TB 2.5’’ Hard disk and 128GB SD Card. ) It can be completely resist car Vibration, Dust and others cause data corruption;

5. Support GPS/BD/G-Sensor;  High Reliability Aviation Connectors.

6. High Cost Performance with reliable stability, simple and clear operation menu.







RCM-MDR 7104 Series

Model NO.

Function

RCM-MDR7104XXXI

Basic Recording,G-Sensor

RCM-MDR7104WGXX

3G, GPS, G-Sensor

RCM-MDR7104FGXX

3G, 4G, GPS, G-Sensor

RCM-MDR7104WGWX

3G, WIFI, GPS, G-Sensor

RCM-MDR7104FGWX

3G, 4G, WIFI, GPS, G-Sensor

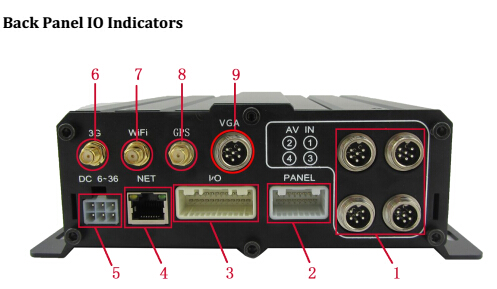

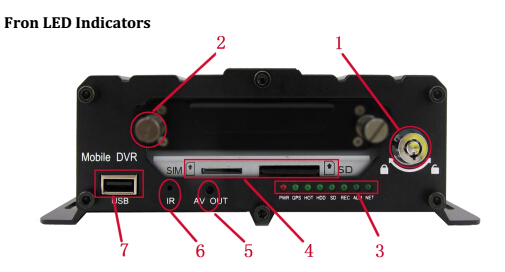

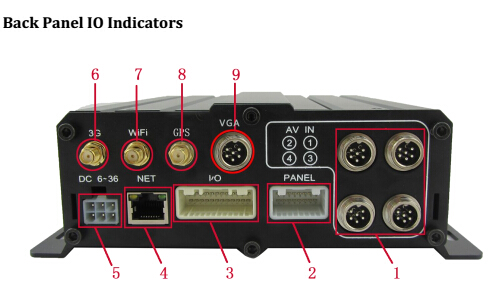

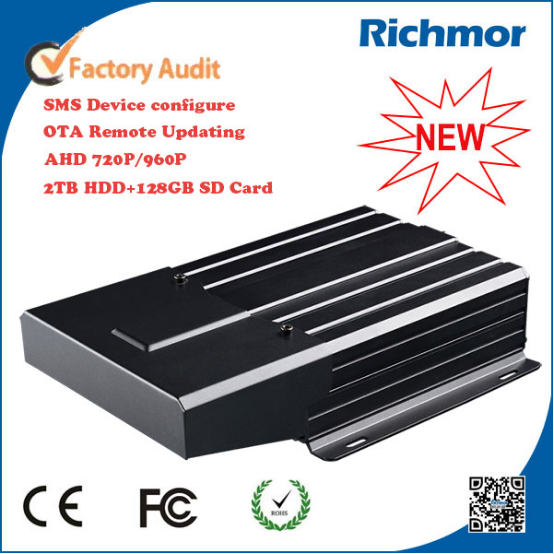

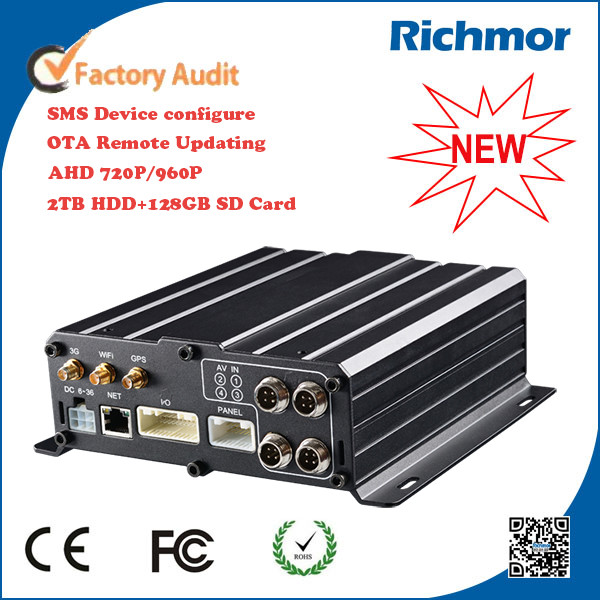

Detail pictures

4CH gps 3g 4g wifi g-sensor mobile dvr with ahd resolution



4CH gps 3g 4g wifi g-sensor mobile dvr with ahd resolution


4CH gps 3g 4g wifi g-sensor mobile dvr with ahd resolution




4CH gps 3g 4g wifi g-sensor mobile dvr with ahd resolution

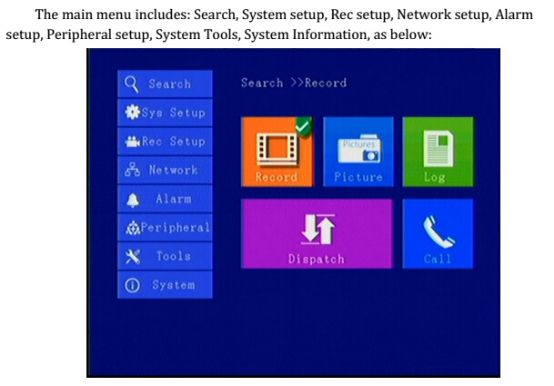

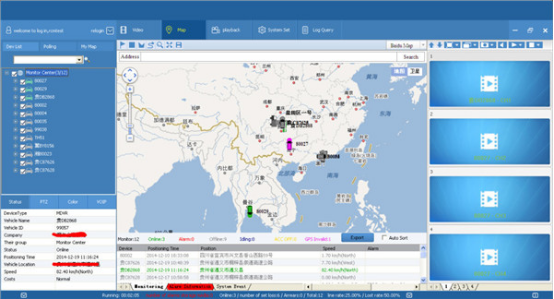

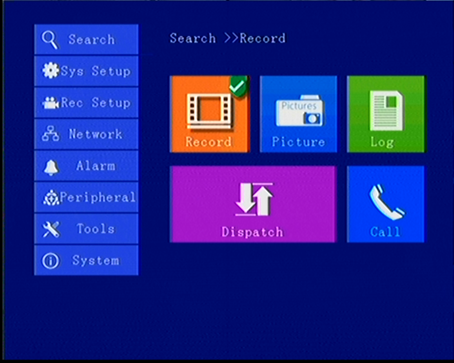

Richmor surveillance GUI





RCM-MDR7104 Parameter Sheet


Item

Parameter

OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/

mixed input,aviation connector, 1.0Vp-p, 75Ω

Video Output

2CH CVBS+ VGA output for optional,

1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,

4CH Screen view

Preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF,

MAX:4 channels 720P and 4 channels D1

Image Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps,

8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps,

8 level video quality optional;

D1:  800Kbps ~ 3Mbps,

 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH Aviation Plug Input

Audio Output

2CH,headphone connect at front panel,

BNC Connect on Back panel

Compression

G.726 compression, 8KB/s speed

Alarm Input

7CH Alarm Input,1CH AD Input,

impulse speed input,Alarm Linkage

Alarm Output

2CH Alarm Output,Support Light/

Sound alarm sensor,Oil/Power cut off

Interface

3CH RS232, POS/Fuel Sensor/

LED Advertisement Connection



2CH 485 Interface,Connect PTZ Camera

2CH CAN interface

Wireless Transmission

Support Built in 3G transmission,

WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position

Support Built GPS/BD Module



HDD

Max 2.5”  2TB HDD

Storage

SD Card

Max 128GB SD Card Mirror Recording Keep Data Safety

Update

Support USB Updating, SD Card Updatin,

OTA Remote Updating

File Format

H.264

File System

Special FAT32 File System



USB

USB Interface on Front Panel for

data back up by U Disk,Hard Disk

Record Replay

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward

play at the speed of: x 2,x4,x8,x16.

Security

User/Admin 2 Level Different Password

Optional Functions

Voice Call

Support voice call each other

Serial Expand

 Support LED Advertisement Panel、Oil Sensor、

POS、Bus Station Broadcaster、 Car OBD,ect.external device

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Input Voltage

DC:+6V - +36V

Power

Working <5W

Temperature

-20℃ - +70℃

Working Environment

Humidity

20% - 80%

Size



200 (D)* 187(W)* 62(H) mm

Others

Weight

1.90 Kg

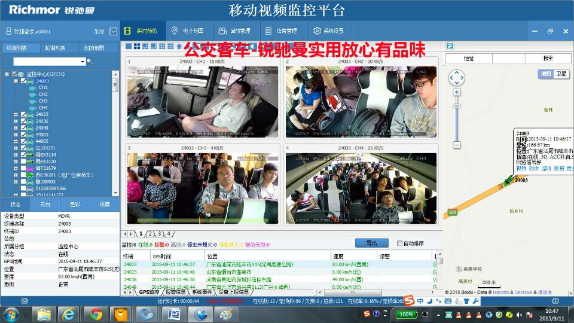

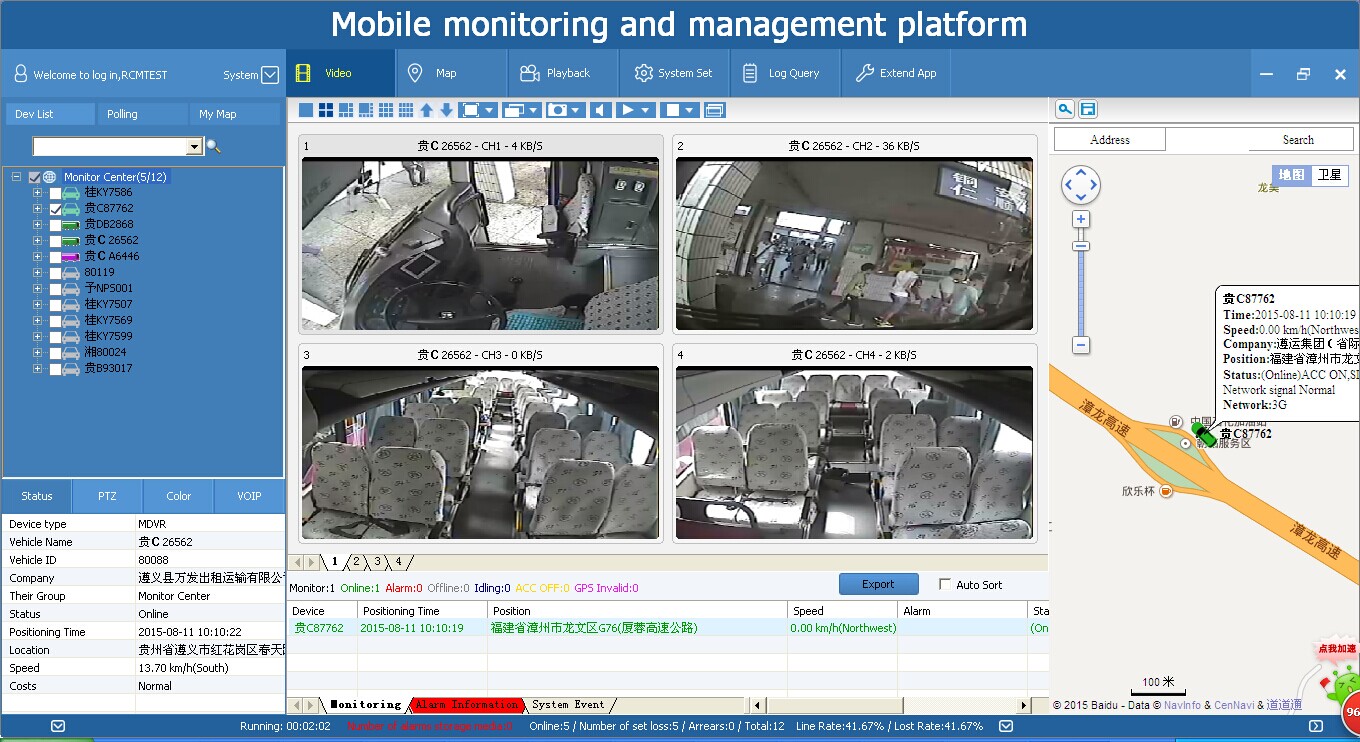

Player software interface (CMSV6 In PC )

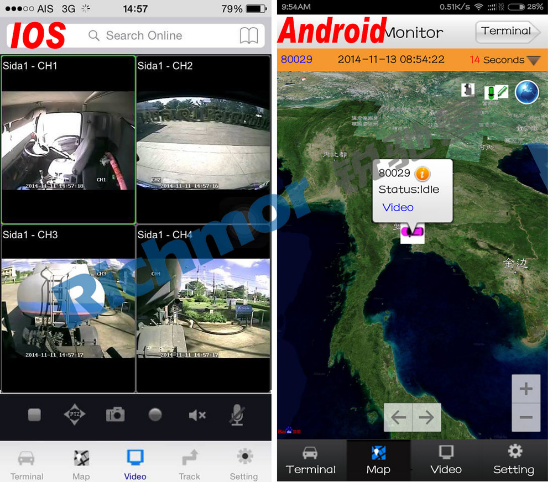

CMSV6 In Mobile Phone.

Have all in the palm of your hand

Real-time monitoring via Mobile Phone --Support iPhone, Android, iPad system

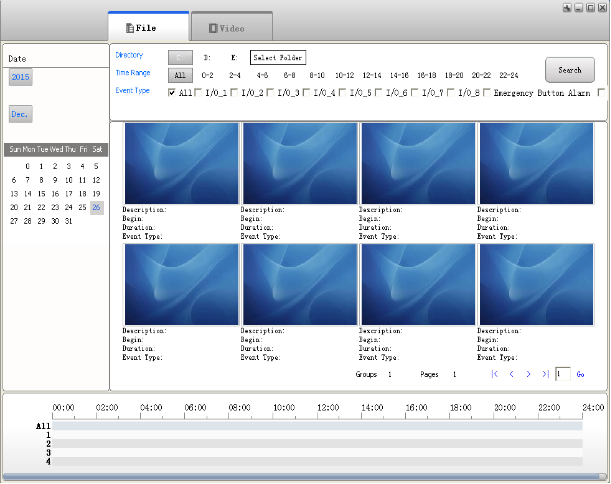

Surveillance platform Playback

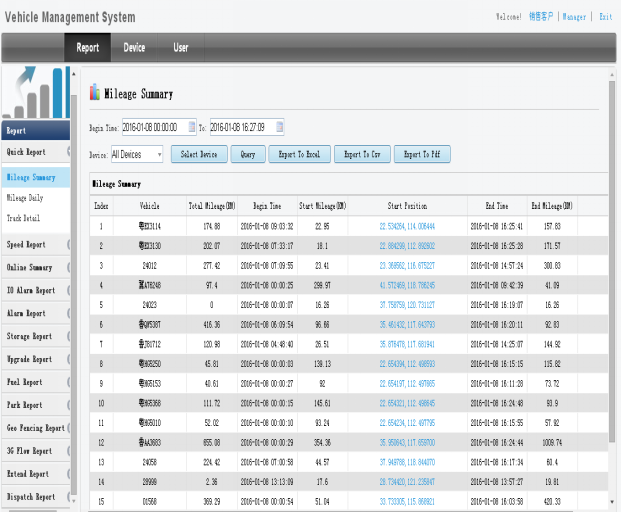

Richmor Mobile DVR Mileage Summary

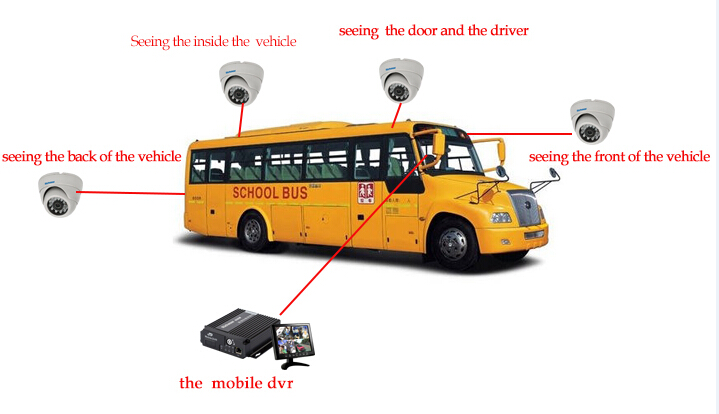

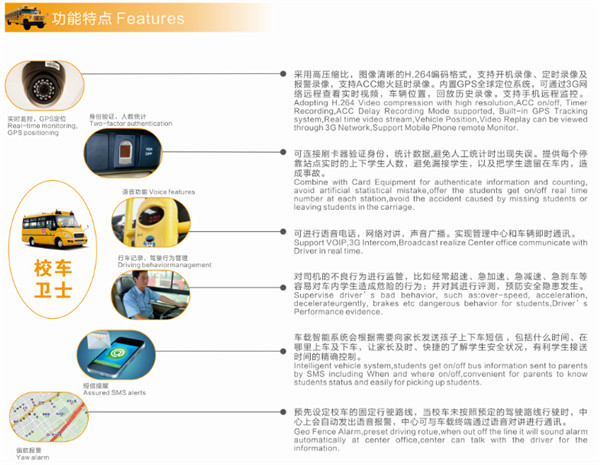

Romote Viewing Surveillance 3G 4G WIFI GPS Mobile DVR Taxi solution

















Richmor Actual Case











Application


 Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
