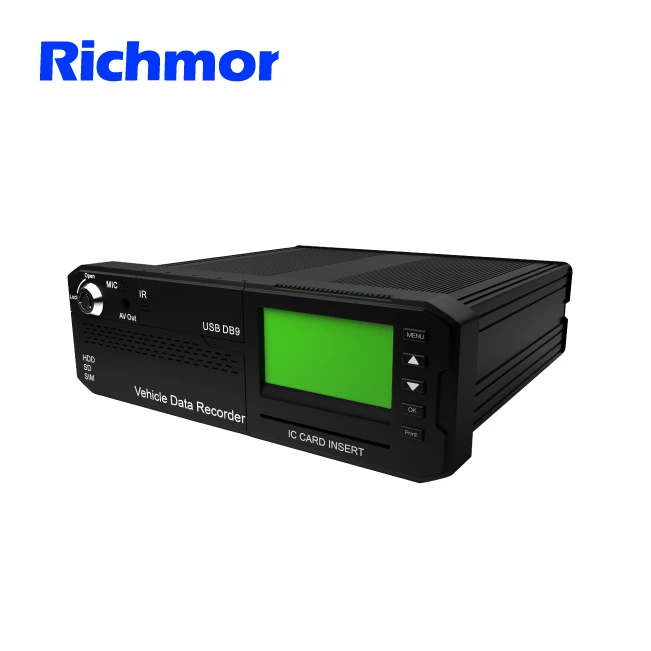

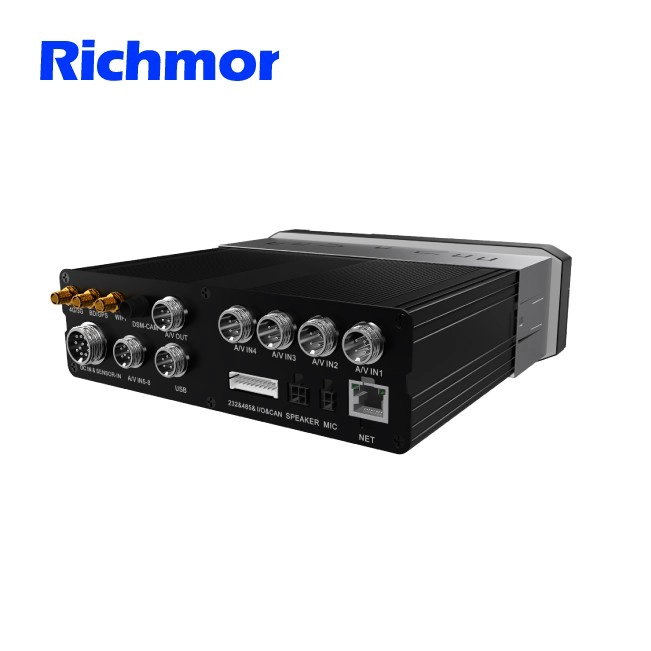

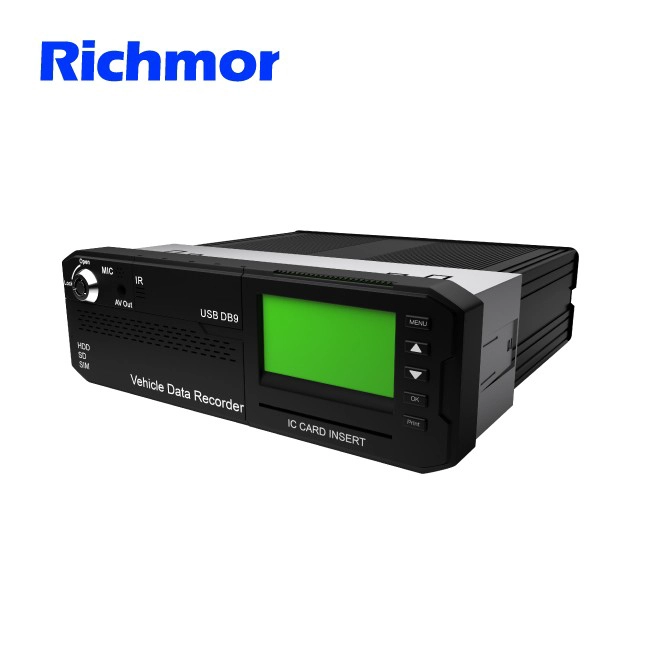

HDD 8CH 1080P DVR for Vehicle Security Video Monitoring

  • * OS: Embedded Linux
  • * CPU Speed: 1.2GHZ
  • * Video Input: 8 channel AHD HD analog input, aviation connection, 1.0Vp-p, 75Ω
  • * Video Output: 2channel composite video output
  • * Resolution: 1080P/720P/D1/HD1/CIF,can be optional, max support 8channel 1080P
  • * Audio Output channel: 3CH
  • * GPS: Support Positioning
  • * Alarm input: 6CH IO alarm input, 2CH AD input, 2CH pulse speed input; with alarm linkage function
  • * Alarm output: 2CH switch output, linkage sound and light alarm, oil cut-off, etc.
  • * Communication Interface:2CH RS232, can be external station announcement, oil sensor, LED advertising screen, etc.
  •                           1CH 485 interface, can support PTZ
  •                           1CH CAN interface

Full HD HDD 8CH 1080P DVR for Vehicle Security Video Surveillance

Main Features:

ntegrate AI functions, such as ADAS(Front safety pre-warning system)+BSD(Blind Spot Security Detection)+DSM(Modify driver behavior system);

2.World's first one True AI Car Mobile DVR, has deep learning and analyzing ability,can optimize according to different complicated occasions.
3.New MDVR interface, support Mouse operation and remote control,easy to be made maintanance;
4.Hard disk or SD card storahe for optional.
5. Easy cost-effective Configuration via Mobile App, remote controller, or server platform remotely. And Silky intuitive and extraordinary OS system interface,
6. Gorgeous and powerful client program, providing real-time monitoring, monitoring intercom, playback, video
recording, HD screenshot etc.



Functions





Parameters


Platform



FAQ

1. What is ADAS?
ADAS Front Active Safety Warning System:
Front Vehicle Collision Warning System
When closely following the front vehicle, the front vehicle collision warning function will win precious reaction time for the
driver, thus avoiding traffic accident.
Lane Departure Warning System
LDW(Lane Departure Warning). The position of the vehicle in the lane is monitored by the ADAS algorithm, and the driver is warned
when the vehicle is above the line or is about to press the line, prevents traffic accident caused by lane departure.
Fatigue driving detection
Use biostatistics to analyze.
Prevent drivers from crossing guard posts and others using vehicles.

2. What is DSM?

DSM Dangerous Driving Behavior Pre-warning System
Mainly detect unfavorable driving behaviors of the driver, such as driving distracted (looking around, smoking, making phone calls, yawning, etc) and over-speeding, bad driving behavior, etc. Once the system detecting the above behavior, there will be a sharp alarming to warn the driver to avoid accident.

3. What is BSD ?

BSD Blind Spot pre-warning System
Use BSD algorithms to analyze the driving scene, have Acousto-optic alarm to warn the driver for paying attention to the people and motor -vehicles, thus avoid the traffic accidents which caused by driver's blind area.
