IP67 MDVR System
√8CH 1080P/720P H.265 recording √Waterproof and anti-vandal AI MDVR IP67 √SD Storage MAX 512G*2 (SSD Optional) √4G Optional for online fleet management platform √With WIFI for data transmission or I-vehicle APP(Debug APP) √Basic RS232*5 ,RS485*1,USB*2 , CAN*2 √Support RFID/Fuel sensor/Tire pressure monitor/temperature sensor customized...., √ADAS/DSM/BSD/3D 360AWM AI function optional (DSM support Face ID+Seat-belt) √Built-in G-sensor support abnormal vibrations/rollover/collision/harsh acceleration harsh braking/harsh cornering alarms and upload platform automatically √IO Alarm: 10CH input 2CH output √Relay cut remote cut-off power/oil √Support GPS upload after the vehicle is powered off √Integrated MIC; supports TTS and voice broadcasting, √Free Hetu Software for fleet management √Integrated supercapacitor can keep the device running after a power outage, ensuring continuous data. √Monitor/Relay/Speed sensor/Audible alarm/ LED warning lights/Safety belt sensor/Alarm display /Cargo over-height identification instrument/Electronic throttle governor these parts optional √Operation: remote controller,USB Mouse,Mobile APP,CMS remotely √Power supply: Support 8V-36V. (Delay-off time 24H) DC11~120V for forklift √Size:186mm*53mm*174mmNew Upgrade: Richmor Fleet Management Platform 3.0
2024 New AI Forklift Professional Solution
Forklift DVR System Different AI functions are supported such as Face ID, DMS, BSD, Seatbelt detection, speed and oil sensor.Ruchmor MDVR company All staff have joined in this party.
1~5 channel AI Dashcam New business opportunities, new market breakthroughs support connect the external camera
① H.265/H.264 hardware compression, powerful AI processor, with neuronal logic reasoning engine, support for deep learning algorithms. ② Integrated ADAS camera, can expand 1-2 AI camera input. Support DSM and environmental monitoring. ③ ADAS assist driving function——Integrated with ADAS camera, advanced auxiliary driving warning function can be realized (supporting lane departure detection and warning, front-vehicle collision detection and warning, vehicle proximity warning, etc.) ④ DMS camera driving behavior analysis——It can connect the DMS camera to give alarm warning and upload to the monitoring center for dangerous driving behaviors of drivers, including: fatigue (closing eyes, yawning), distraction, smoking, talking on the phone, etc ⑤ Driver face recognition function——Face recognition attendance on the basis of management can also prevent the driver illegal substitution, non-compliance of the driver operation of the problem, standardize the driver and operation management. ⑥ Beidou /GPS positioning, support the ministry of JT/T808, JT/T1076, JT/T905, Geely, Su Biao and other platforms to report transmission.Happy new year 2024 -Richmor team
New year.New feels.New breathe.New chances.Same dreams,fresh starts.I dare you to believe in yourself. You deserve all things magic.2024 Richmor AI camera Alarm systerm Power BSD Spot detection
Advantage of this solution > Support standalone, or being integrated to any type of MDVR flexibly. > Voice of outer speaker can be adjusted in different time period. Don’t disturb the living of inhabitants. (add USD17/P to upgrade the speaker) > Content of alarm of outer speaker can be customized. Multiple languages supported.Richmor New AI 3D 360 panoramic view function
8CH HDD MDVR System
√8CH 1080P/720P H.265 recording √Support HDD(SSD) 2TB*1+ SD Storage MAX 512G*2 √Integrated 16GB EMMC storage √4G Optional for online fleet management platform √WIFI (Optional) for data transmission or I-vehicle APP(Debug APP) √Basic RS232*3 ,RS485*1, LAN*1,USB*2 , (VGA and CAN optional) √Support RFID/Fuel sensor/Tire pressure monitor/temperature sensor customized...., √ADAS/DSM/BSD/APC/HOD/3D 360AWM AI function optional (DSM support Face ID+Seat-belt) √Built-in G-sensor support abnormal vibrations/rollover/collision/ sudden braking /will alarm and upload platform automatically √IO Alarm: 10CH input 2CH output √Relay cut remote cut-off power/oil √Support GPS upload after the vehicle is powered off √Integrated MIC and speaker; supports TTS and voice broadcasting, √Free Hetu Software for fleet management √Operation: remote controller,USB Mouse,Mobile APP,CMS remotely √Power supply: Support 8V-36V. (Delay-off time 24H) √Size:196(W) mmx60(H)mm x188(D)mmRichmor Ultrasonic level gauge Product Manual
Product Overview Ultrasonic level gauge is an externally attached level measurement sensor used to measure the liquid level height inside oil tanks, tanks, and containers.Sensors use the principle of ultrasonic detection to detect the oil level in the fuel tank, and then convert the oil level value into oil quantity value through intelligent processing. The oil quantity data is sent to the system platform through GPS and transmitted to the backend supervision system to achieve real-time monitoring of vehicle fuel consumption.At present, the product is mainly used in the field of vehicle networking, to monitor the changes in fuel tank oil level in real-time to achieve fuel detection. It can be used to prevent fuel theft, optimize operating costs, optimize driver driving behavior, assist in statistical decision-making, and so on. At the same time, this product can also be used in fields with liquid level detection requirements such as chemical engineering, water conservancy, and storage tanks. Working Principle Ultrasonic level gauge is based on the principle of ultrasonic echo ranging. The sensor is installed outside the bottom of the oil tank, emitting ultrasonic signals from the bottom. When it encounters the oil surface, it reflects back, and then calculates the level height based on time and speed. By combining digital signal processing technology, the influence of container walls is overcome, achieving high-precision non-contact measurement of liquid level inside the container, and meeting industrial application requirements in terms of application.
- Contact Us
- Contact Information: Floor 6, Building 5, Longbi Industrial Zone, No. 27, Daifa Road, Daifa Community, Bantian Street, Shenzhen, Guangdong, CN Contact Now

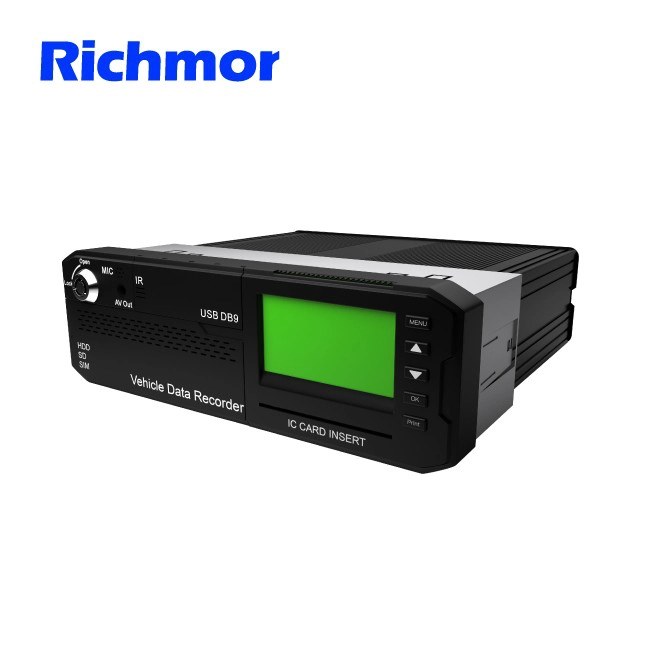

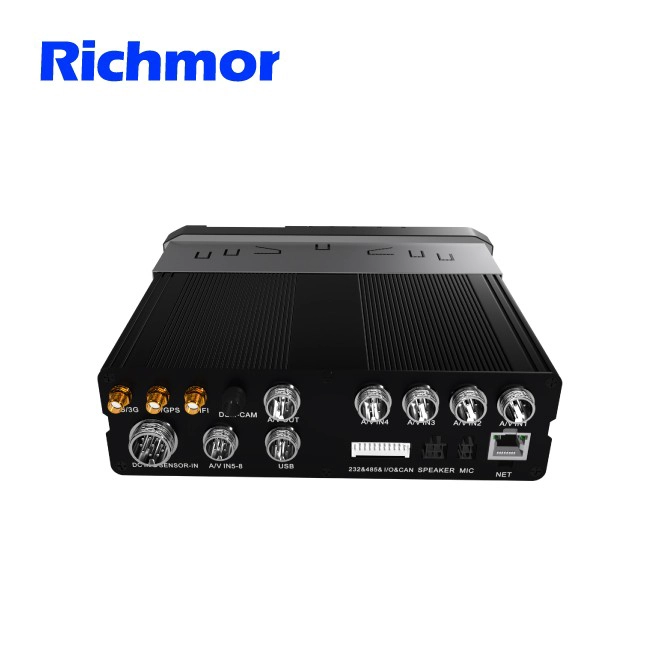

Full HD HDD 8CH 1080P DVR pour la surveillance vidéo de sécurité des véhicules
- * OS: Linux embarqué
- * Vitesse du processeur: 1.2GHZ
- * Entrée vidéo: entrée analogique AHD HD 8 canaux, connexion aviation, 1.0Vp-p, 75Ω
- * Sortie vidéo: sortie vidéo composite à 2 canaux
- * Résolution: 1080P / 720P / D1 / HD1 / CIF, peut être facultatif, prise en charge maximale de 8 canaux 1080P
- * Canal de sortie audio: 3CH
- * GPS: positionnement de soutien
- * Entrée d'alarme: entrée d'alarme 6CH IO, entrée 2CH AD, entrée de vitesse d'impulsion 2CH; avec fonction de liaison d'alarme
- * Sortie d'alarme: sortie de commutateur 2CH, alarme sonore et lumineuse de liaison, coupure d'huile, etc.
- * Interface de communication: 2CH RS232, peut être une annonce de station externe, un capteur d'huile, un écran publicitaire LED, etc.
- Interface 1CH 485, peut prendre en charge PTZ
- Interface CAN 1CH
Full HD HDD 8CH 1080P DVR pour la surveillance vidéo de sécurité des véhicules
Caractéristiques principales:
1.Intégrer des fonctions AI, telles que ADAS (système de pré-alerte de sécurité avant) + BSD (détection de sécurité des angles morts) + DSM (modification du système de comportement du conducteur);
2.Le premier DVR mobile True AI Car au monde, a une capacité d'apprentissage et d'analyse en profondeur, peut être optimisé en fonction de différentes occasions compliquées.
3.Nouvelle interface MDVR, prise en charge du fonctionnement de la souris et de la télécommande, facile à faire maintanance;
4. stockage sur disque dur ou sur carte SD en option.
5. Configuration simple et économique via l'application mobile, la télécommande ou la plate-forme serveur à distance. Et l'interface système Silky intuitive et extraordinaire du système d'exploitation,
6. Programme client magnifique et puissant, offrant une surveillance en temps réel, un interphone de surveillance, une lecture, une vidéo enregistrement, capture d'écran HD, etc.
![]()
![]()
Functions
Parameters
![]()
Platform
![]()
FAQ
1. Qu'est-ce qu'ADAS?
Système d'avertissement de sécurité active avant ADAS:
Système d'avertissement de collision du véhicule avant
En suivant de près le véhicule avant, la fonction d'avertissement de collision du véhicule avant gagnera un temps de réaction précieux pour leconducteur, évitant ainsi les accidents de la circulation.
Système d'avertissement de sortie de voie LDW (avertissement de sortie de voie). La position du véhicule dans la voie est surveillée par l'algorithme ADAS, et le conducteur est averti
lorsque le véhicule est au-dessus de la ligne ou est sur le point d'appuyer sur la ligne, empêche les accidents de la circulation causés par un départ de voie.
Détection de conduite de fatigue
Utilisez la biostatistique pour analyser.
Empêcher les conducteurs de traverser les postes de garde et d'autres personnes à l'aide de véhicules.
2. Qu'est-ce que DSM?
Système de pré-avertissement de conduite dangereuse DSM
Détectez principalement les comportements de conduite défavorables du conducteur, tels que la distraction au volant (regarder autour de vous, fumer, passer des appels téléphoniques, bâiller, etc.) et les excès de vitesse, les mauvais comportements de conduite, etc. Une fois que le système détecte le comportement ci-dessus, Sharp alarmant pour avertir le conducteur d'éviter les accidents.
3. Qu'est-ce que BSD?
Système de pré-alerte BSD pour les angles morts
Utilisez les algorithmes BSD pour analyser la scène de conduite, ayez une alarme acoustique pour avertir le conducteur de faire attention aux personnes et aux véhicules à moteur, évitez ainsi les accidents de la circulation causés par la zone aveugle du conducteur.
