Factory Direct 4ch 1080P/720P hdd mobile dvr for vehicle wifi 3g 4g

  • Main Features
  • HIS Solution,H.264 Compression,support 4ch 720P AHD input and AHD Camera input.
  • Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
  • 6-36V wide voltage with low power consumption.
  • Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
  • Support HDD heating functions,can work in harsh environment.
  • Support GPS/BD/G-Sensor Extension modul;
  • Realize realtime monitor through 3G/4G;
  • Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
  • Support IOS/Android Phone Remote monitor

2015  720P/1080P AHD  4CH 2TB HDD H.264  Mobile DVR for truck bus taxi car



Item No. Function Remark  Optional Functions
RCM-MDR7104XXXI Basic Recording  G-Sensor 1.H.264 Video Compression, Support 4CH real-time 720P Video Record.
2.Support Max Mega Pixels real-time HD Video Recording,960H/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality.
3.Support Max 2TB HDD+128GB SD card Mirror video record, Damping shock technology.
4.Support 3G/4G Network
5.Support GPS  G-sensor  WIFI module.
6.Support External WIFI module
7.2 high-speed USB2.0 interface.
8.8CH alarm input, 2CH alarm output, support Acousto-optic alarm linkage , Cut off power/Fuel Oil, etc.
9.Power supply: Support 8V - 36V
10.Dimension : 187(W)x62(H)x200(D) mm
11.Weight : 1.9Kg
12.Support Dual WIFI Mode : 5G WIFI and 2.4G WIFI
4G (TDD/FDD-LTE)    Dual WIFI Modes : 5.0G WIFI and 2.4G WIFI  AP hotspot
RCM-MDR7104WGXX  3G GPS G-SENSOR
RCM-MDR7104WGWX 3G GPS G-SENSOR WIFI












win 8 platform login interface_.jpg

platform user interface 2_.jpg


4CH 4G/3G DVR 7104 Series Item









 Specification

Item

Parameter

OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record

System

Video Input

4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω

Video Onput

1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view

Preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1

Image Quality

1-4 levels, 1 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4CH Aviation Plug Input

Audio Output

2CH,headphone connect at front panel, BNC Connect on Back panel

Compression

G.726 compression, 8KB/s speed

Alarm Input

7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage

Alarm Output

2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off

Interface

3CH RS232, POS/Fuel Sensor/LED Advertisement Connection



1CH 485 Interface,Connect PTZ Camera

Wireless Transmission

Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position

Support Built GPS/BD Module



HDD

Max 2.5” 1TB HDD

Storage

SD Card

Max 128GB SD Card Mirror Recording Keep Data Safety

Update

Support USB Updating, SD Card Updating,OTA Remote Updating

File Format

H.264

File System

Special FAT32 File System



USB

USB Interface on Front Panel for data back up by U Disk,Hard Disk

Record Replay

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Security

User/Admin 2 Level Different Password

Optional Functions

Voice Call

Support voice call each other

TTS Voice Broadcast

Support TTS voice broadcast function.

Serial Expand

 Support LED Advertisement Panel,Oil Sensor,

POS,Bus Station Broadcaster,Car OBD,ect.external device

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Input Voltage

DC:+6V - +36V

Output Voltage

+12V~1.5A,+5V~1.5A

Power

Working <5W

Working Environment

Temperature

-20℃ - +70℃

Humidity

20% - 80%

Ohters

Size



200 (D)* 187(W)* 62(H) mm

Weight

1.90 Kg

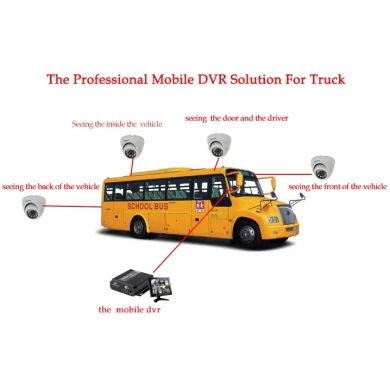

Product Application















Product Cases

Case_







PC&Phone Monitoring

CMSV6  Interface

New Software Map



Video Interface



                           CMSV6 In Mobile Phone

        Have all in the palm of your hand

                                 Real-time monitoring via Mobile Phone

                                                            Support iPhone, Android, iPad system

CMS software 02

      Video & Audio Monitoring    Online Vehicle        GPS

    Satellite  Map             Video Storage

      PTZ control              Tracking Display                          Picture Snapshot             Voice  intercom
