China mobile dvr factorty 4G Car Mobile DVR
- Outstanding Features
- 4CHANNEL 4G FULL D1 2TB+128GB HDD Mobile DVR H.264 Compression,support 4CH 720P real-time video recording ;
- 3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).
- 3G, WIFI, GPS tracking optional 4ch mobile dvr,
- Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
- Support 2 USB ports, data backup and equipment upgrades.
- Support 9CH alarm input (1CH Analog input + 4CH IO alarm input),2CH Independent alarm output.
- Support OTA Device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient
China mobile dvr factorty 4G Car Mobile DVR
(RCM-MDR 7104 Series)
Product features
Romote Viewing Surveillance 3G 4G GPS WIFI HDD Mobile DVR
1. H.264 Compression Mode, support 4CH real-time 720P Mega Pixel AHD input and Analog Standard Definition camera input, or 2ch HD input + 2CH SD input.
2. Exclusive pre-allocate DVR Special File Systerm Technology, solving repeatedly wipe cause file fragmentation, solving SD Card file system collapse, data loss and cannot find SD CARD and file garbled, ensure the integrity of the data.
3. 8-36V Adaptive Wide Voltage input, Super low Power Consumption Design;
4. HDD+SD Card storage( maximum support 2TB 2.5’’ Hard disk and 128GB SD Card. ) It can be completely resist car Vibration, Dust and others cause data corruption;
5. Support GPS/BD/G-Sensor; High Reliability Aviation Connectors.
6. High Cost Performance with reliable stability, simple and clear operation menu.
RCM-MDR 7104 Series |
|
Model NO. |
Function |
RCM-MDR7104XXXI |
Basic Recording,G-Sensor |
RCM-MDR7104WGXX |
3G, GPS, G-Sensor |
RCM-MDR7104FGXX |
3G, 4G, GPS, G-Sensor |
RCM-MDR7104WGWX |
3G, WIFI, GPS, G-Sensor |
RCM-MDR7104FGWX |
3G, 4G, WIFI, GPS, G-Sensor |
Detail pictures
H.264 Compression,support 4CH 720P real-time video recorder mobile dvr
H.264 Compression,support 4CH 720P real-time video recorder mobile dvr
H.264 Compression,support 4CH 720P real-time video recorder mobile dvr
H.264 Compression,support 4CH 720P real-time video recorder mobile dvr
Richmor surveillance GUI
RCM-MDR7104 Parameter Sheet
Item |
Parameter |
|||
OS |
Linux |
|||
Language |
English/Chinese/Customized |
|||
Video Compression |
H.264 Compression |
|||
OSD |
Overlays information such as date time and vehicle ID |
|||
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
||
Video Record System |
Video Input |
4CH 720P AHD input/SD input/ mixed input,aviation connector, 1.0Vp-p, 75Ω |
||
Video Output |
2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, 4CH Screen view |
|||
Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
|||
Resolution |
720P/D1/HD1/CIF, MAX:4 channels 720P and 4 channels D1 |
|||
Image Quality |
0-7 levels, 0 is the highest level. |
|||
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|||
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|||
Audio |
Audio Input |
4CH Aviation Plug Input |
||
Audio Output |
2CH,headphone connect at front panel, BNC Connect on Back panel |
|||
Compression |
G.726 compression, 8KB/s speed |
|||
Alarm Input |
7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage |
|||
Alarm Output |
2CH Alarm Output,Support Light/ Sound alarm sensor,Oil/Power cut off |
|||
Interface |
3CH RS232, POS/Fuel Sensor/ LED Advertisement Connection
|
|||
2CH 485 Interface,Connect PTZ Camera |
||||
2CH CAN interface |
||||
Wireless Transmission |
Support Built in 3G transmission, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
|||
GPS Position |
Support Built GPS/BD Module |
|||
|
HDD |
Max 2.5” 2TB HDD |
||
Storage |
SD Card |
Max 128GB SD Card Mirror Recording Keep Data Safety |
||
Update |
Support USB Updating, SD Card Updatin, OTA Remote Updating |
|||
File Format |
H.264 |
|||
File System |
Special FAT32 File System |
|||
|
USB |
USB Interface on Front Panel for data back up by U Disk,Hard Disk |
||
Record Replay |
Video Search |
Search By Record Time/Record Type etc |
||
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|||
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||||
Security |
User/Admin 2 Level Different Password |
|||
Optional Functions |
Voice Call |
Support voice call each other |
||
Serial Expand |
Support LED Advertisement Panel、Oil Sensor、 POS、Bus Station Broadcaster、 Car OBD,ect.external device |
|||
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
||
Input Voltage |
DC:+6V - +36V |
|||
Power |
Working <5W |
|||
Temperature |
-20℃ - +70℃ |
|||
Working Environment |
Humidity |
20% - 80% |
||
Size
|
200 (D)* 187(W)* 62(H) mm |
|||
Others |
Weight |
1.90 Kg |
Player software interface (CMSV6 In PC )
CMSV6 In Mobile Phone.
Have all in the palm of your hand
Real-time monitoring via Mobile Phone --Support iPhone, Android, iPad system
Surveillance platform Playback
Richmor Mobile DVR Mileage Summary
Romote Viewing Surveillance 3G 4G WIFI GPS Mobile DVR

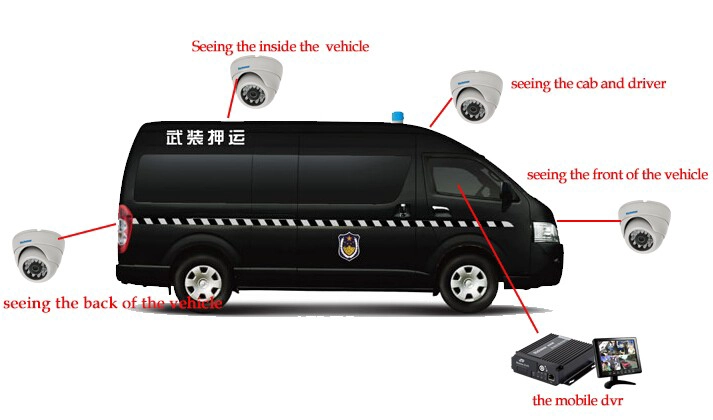

Police car solution

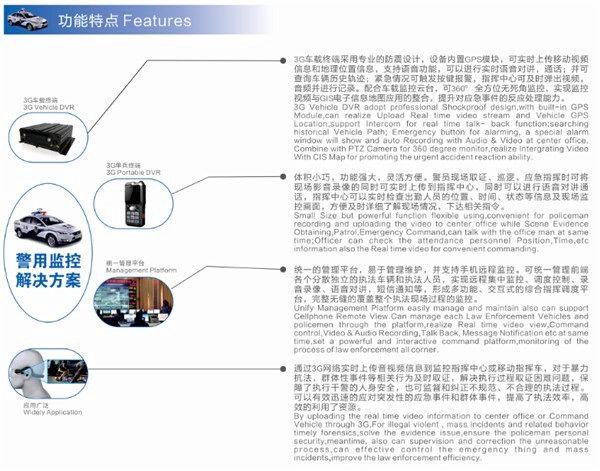

Richmor Actual Case
Application
Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
