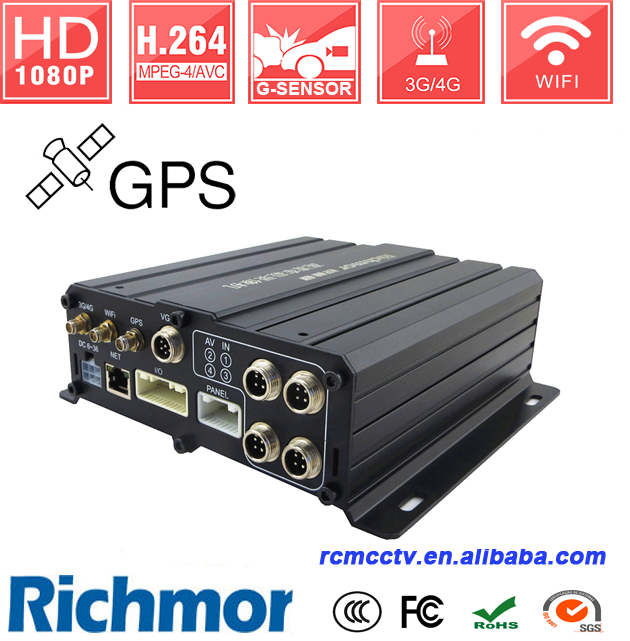

8 channel 720p ahd mobile dvr bus dvr with realtime 4g gps online from 100% factory
- RCM-MDR7208,8 channel 720p ahd mobile dvr bus dvr with realtime 4g gps online from 100% factory
- product feature:
- MAX 4ch 1080P ahd input camera for gps 3g monitor mobile dvr application support fuel sensor
- Quick Details
- Place of Origin: ShenZhen, China (Mainland)
- Brand Name: Richmor/OEM
- Product Name: MDR7104
- Professional Power Design for Vehicle: 6~48V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
- Function: Support 3G,GPS,wifi,alarm etc.
- Special Delay Power off circuit: support systerm continus running after vehicle power off.
- Resolution: D1/HD1/CIF selectable.
- System Protection: Saving the recording data when the power off, support HDD upgrading PTZ control: RS232 can turn to PTZ interface monitoring device: PC/Mobile phone
- signal format: PAL/NTSC
- record storage: max 2TB HDD& 128GB SD card
RCM-MDR7208,8 channel 720p ahd mobile dvr bus dvr with realtime 4g gps online from 100% factory
|Video Compression||H.264 Compression|
|GUI||Graphical user interface||setup system parameters with the remote control|
|video input||8CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω|
|video output||1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view|
|resolution||720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1|
|Alarm Input||7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage|
|Alarm Output||2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off|
|Interface||3CH RS232, POS/Fuel Sensor/LED Advertisement Connection|
|1CH 485 Interface,Connect PTZ Camera|
|GPS Position||Support Built GPS/BD Module|
|Storage||HDD||Max 2.5” 1TB HDD|
|SD Card||Max 128GB SD Card Mirror Recording Keep Data Safety|
|update||Support USB Updating, SD Card Updating,OTA Remote Updating|
|file system||Special FAT32 File System|
|USB||USB Interface on Front Panel for data back up by U Disk,Hard Disk|
|Security||User/Admin 2 Level Different Password|
|Optional Functions||voice call||Support voice call each other|
|TTS Voice broadcast||Support TTS voice broadcast function.|
|Working Environment||Temperature||-20℃ - +70℃|
|Humidity||20% - 80%|
|Others||Size||200 (D)* 187(W)* 62(H) mm|
Client User Graph Interface
our mdvr support mobile Client monitoring like PC,mobile phone etc.
company and factory
Tag: WIFI Car DVR ,fuel/oil cut off remotely ,China Mobile DVRManufacturer ,Vehicle DVR System ,Mobile DVR System ,4ch car dvr
