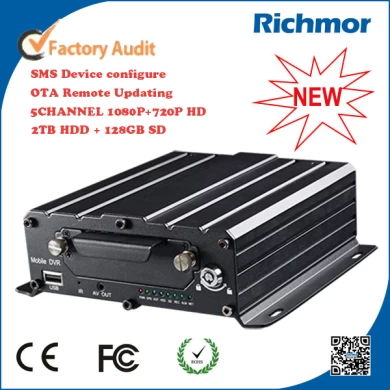

5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car

5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car

  • 5CH Million Pixels video surveillance, video recording and playback (4CH real-time 720p Analog HD input + 1CH 1080P  network IP Camera input)
  • 3CH video output (2CH CVBS video output,Support front and rear output; 1CH VGA output for optional )
  • Exclusive pre-allocate DVR Special File System Technology
  • Support 2 USD ports, data backup and equipment upgrades.
  • Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.
  • Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient


5CH 2TB HDD +128GB sd card 720P/1080P mobile dvr support 3G/4G/WIFI with gps tracking for police car






PC VIEWING CLIENT SOFTWARE


 OUTSTANDING FUNTIONS






Main Features



*HIS Solution,H.264 Compression,support 5ch Million Pixels video surveillance, video recording and playback (4CH real-time 720p million Analog HD input and analog standard definition camera + 1CH 1080P network camera input);

*3CH video output (2CH CVBS video output,Support front and rear output; 1CH VGA output for optional )

*Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, solving  storage file system crash, data loss and cannot find storage media and file garbled, ensure the integrity of the data.

*6-36V wide voltage with low power consumption. Support Reverse Protection,over-voltage/over-current protection.Output max to 10Amps current, support 12V & 5V peripheral equipment power supply. Ultra low power design;

*Unique UPS Technology ensures the integrity of record when power failure occurs,even can last for 8-10s.

*HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;

*Support 2 USD ports, data backup and equipment upgrades.

*Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.

*Support HDD heating functions,can work in harsh environment.

*Support GPS/BD/G-Sensor Extension module;

*Realize real-time monitor through 3G/4G;

*Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

*Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient

*Support IOS/Android Phone Remote monitor

*High reliability aviation connectors, high cost performance, stable and reliable.


Specifications

Item Parameter
OS Linux
Language English/Chinese/Customized
Video Compression H.264 Compression
OSD Overlays information such as date time and vehicle ID

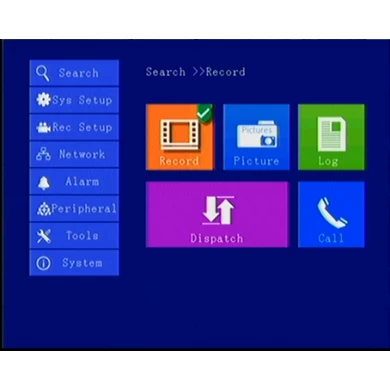

GUI Graphical User Interface Setup system parameters with the remote control.
Video Record System Video Input 4CH 720P Analog High Definition video+1CH 1080P digital video input ,aviation connector, 1.0Vp-p, 75Ω
Video Output 2CH CVBS output+1CH VGA output for optional,1.0Vp-p, 75Ω,Support 1CH Full Screen,4CH Screen view
Preview Support 1 channel and 4 channels preview, 5 channels splice preview Support Manual/Alarm Trigger full screen preview
Resolution 1080P/720P/D1/HD1/CIF, MAX:4 channels of 720P + 1080P / 4 channels of D1
Image Quality 1-4 levels, 1 is the highest level.
Video Standard PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
Record Mode The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio Audio Input 4CH Aviation Plug Input
Audio Output 2CH,headphone connect at front panel, BNC Connect on Back panel
Compression G.726 compression, 8KB/s speed
Alarm Input 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
2CH 485 Interface,Connect PTZ Camera
Wireless Transmission Support Built in 3G transmission, WCDMA,CDMA2000,GPRS, EDGE;
Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Position Support Built GPS/BD Module
  HDD Max 2.5” HDD
Storage SD Card Max 128GB SD Card Mirror Recording Keep Data Safety
Update Support USB Updating, SD Card Updating,OTA Remote Updating
File Format H.264
Special FAT32 File System
  USB USB Interface on Front Panel for data back up by U Disk,Hard Disk
Record Replay Video Search Search By Record Time/Record Type etc
Playback Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16.
Security User/Admin 2 Level Different Password
Optional Functions Voice Call Support voice call each other
TTS Voice Broadcast Support TTS voice broadcast function.
erial Expand Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect.external device
Voltage & Power Power Management Wide Voltage.Support Timed/Delay off/ over-load/Reversing connection/voltage shortage/short circuit etc.
Input Voltage DC:+6V - +36V
Output Voltage +12V,1.5A,+5V,1.5A
Power Working <5W
Working Environment Temperature -20℃ - +70℃
Humidity 20% - 80%
Ohters Size 200 (D)* 187(W)* 62(H) mm
Weight 1.90 Kg













Advantages

Product Features:

 HIS Solution,H.264 Compression,Multiple Streams record ,5CH AHD Video input, 4CH real-time 720p million Analog HD input and analog standard definition camera + 1CH 1080P network camera  input,

 High quality real time recording, 1080P/720P/CIF/HD1/D1 Optional, quality adjustable;

 Professional Car Power Design,6-36V wide voltage,Provide reverse voltage/over-load/short circuit protection, to meet kinds of car application;

 Support 12VDC output voltage,power supply for Camera/Screen etc;
 Max 2TB HDD + 128GB SD Card Mirror Recording,protect DVR from shock & Dust damage;
Watchdog abnormal restart function,protect SD Card and Record;

 Exclusive Pre-allocated Vehicle File System protect data completeness ;

ACC Delay off,can set 24 hours;

Unique UPS Technology ensures the integrity of record when power failure occurs,even can last for 10-15s.

Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
Show Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
 Support GPS/BD,3G/4G Module Optional,WIFI extend;
 Strong Network,device configure via IE Web,Support SMS Get device information and configure;
Support Monitoring,Two-way Intercom, PTZ, Alarm,Over-speed,Geo Fence etc through remote control platform;
 8CH IO Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

 2CH Alarm Output,Support Light and Sound alarm sensor,Oil/Power cut off;
 High level aviation interface,easily installation and better shockproof, more stable;

 Support Local Auto-photo when alarm input.

 High reliable aviation connectors input/output, easy installation,stronger anti-vibration.
Easily Smart GUI Interface, saving time in device setting;
Strong Stable Application,Support 3G/4G Real-time monitor, talk-back,playback,record,picture snap etc;
Updated through SD or OTA Remote Automatic updating,more stable and convenient;Support Phone Remote Monitor,Phone Calling etc;

Support PTZ/POS/Oil Sensor/LED Advertisement Panel etc;

Support Ministry of Transport Standard Agreement

Be Customized according your request;









PC&Phone Monitoring

CMSV6  Interface








                                                  CMSV6 In Mobile Phone

                    Have all in the palm of your hand

                                 Real-time monitoring via Mobile Phone

                                                            Support iPhone, Android, iPad system

      Video & Audio Monitoring    Online Vehicle        GPS

    Satellite  Map             Video Storage

      PTZ control              Tracking Display                          Picture Snapshot             Voice  intercom







FQA

Q: During playback, the map doesn't show?
A: Possible reasons are as follows;
1.Net cable did not connect to PC;
2.Net works, but the computer can not get to the Internet;
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they
will delete the original video records respectively.

Q: The device was opened, HDD was installed, but the device can not record successful.
A: 1.Check the HDD/SD Card was formatted or not, the unformatted HH/SD Card
can not be used. Enter into the Main Menu – System Setup – Formatting the new
installed HDD/SD Card.
2. If the recording channel is closed, if set the timing recording, it can not recording
when it beyond the period of timing recording.
3. If the HDD is connect well, if the HDD/SD light is on.
