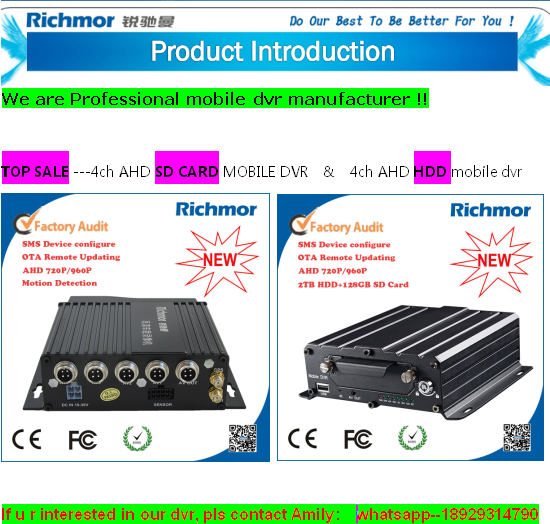

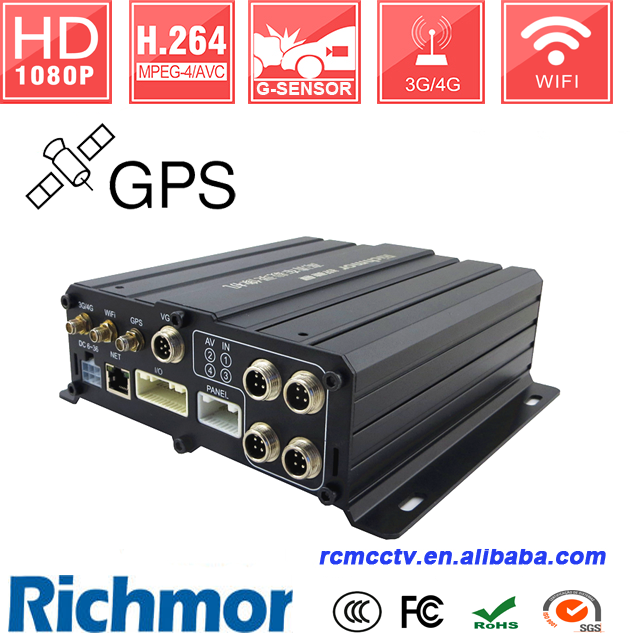

4ch gps 3g wifi mdvr with free cms software,1080p mdvr with 720p optional
- product feature:
- HDD +SD card h264 CCTV Mobile DVR for vehicle car bus fleet etc with 3g 4g GPS,WIFI G-sensor
- Quick Details
- Place of Origin: ShenZhen, China (Mainland)
- Brand Name: Richmor/OEM
- Product Name: MDR7104
- Professional Power Design for Vehicle: 6~48V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
- Function: Support 3G,GPS,wifi,alarm etc.
- Special Delay Power off circuit: support systerm continus running after vehicle power off.
- Resolution: D1/HD1/CIF selectable.
- System Protection: Saving the recording data when the power off, support HDD upgrading PTZ control: RS232 can turn to PTZ interface monitoring device: PC/Mobile phone
- signal format: PAL/NTSC
- record storage: max 2TB HDD& 128GB SD card
|Video Compression||H.264 Compression|
|OSD||overlays information such as date time and vehicle ID|
|GUI||Graphical user interface||setup system parameters with the remote control|
|Video Record System||video input||4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω|
|video output||1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view|
Support 1 channel and 4 channels preview.,
Support Manual/Alarm Trigger full screen preview
|resolution||720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1|
|image quality||1-4 levels, 1 is the highest level.|
PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
720P: 4Mbps-6Mbps, multi level video quality optional
The default setting is auto recording after power on.
Timed recording, alarm trigger recording and manual recording are supported.
|Audio||audio input||4CH Aviation Plug Input|
|audio output||2CH,headphone connect at front panel, BNC Connect on Back panel|
|compression||G.726 compression, 8KB/s speed|
|Alarm Input||7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage|
|Alarm Output||2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off|
|Interface||3CH RS232, POS/Fuel Sensor/LED Advertisement Connection|
|1CH 485 Interface,Connect PTZ Camera|
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;
Built in 4G module optional, TDD-LTE, FDD-LTE
|GPS Position||Support Built GPS/BD Module|
|Storage||HDD||Max 2.5” 1TB HDD|
|SD Card||Max 128GB SD Card Mirror Recording Keep Data Safety|
|update||Support USB Updating, SD Card Updating,OTA Remote Updating|
|file system||Special FAT32 File System|
|USB||USB Interface on Front Panel for data back up by U Disk,Hard Disk|
|Record Replay||video search||Search By Record Time/Record Type etc|
|playback||Max support 4CH Replay /Stop/Fast/Slow at same time|
|Support forward and backward play at the speed of: x 2,x4,x8,x16.|
|Security||User/Admin 2 Level Different Password|
|Optional Functions||voice call||Support voice call each other|
|TTS Voice broadcast||Support TTS voice broadcast function.|
Support LED Advertisement Panel,Oil Sensor,
POS,Bus Station Broadcaster,Car OBD,ect.external device
|Voltage & Power||Power Management||Wide Voltage.Support Timed/Delay off|
|Input Voltage||DC:+6V - +36V|
|Working Environment||Temperature||-20℃ - +70℃|
|Humidity||20% - 80%|
|Others||Size||200 (D)* 187(W)* 62(H) mm|
