Ahd dvr for all kinds of vehicles dvr, Hot sale 3g 4g wifi SD card Vehicle Mobile DVR

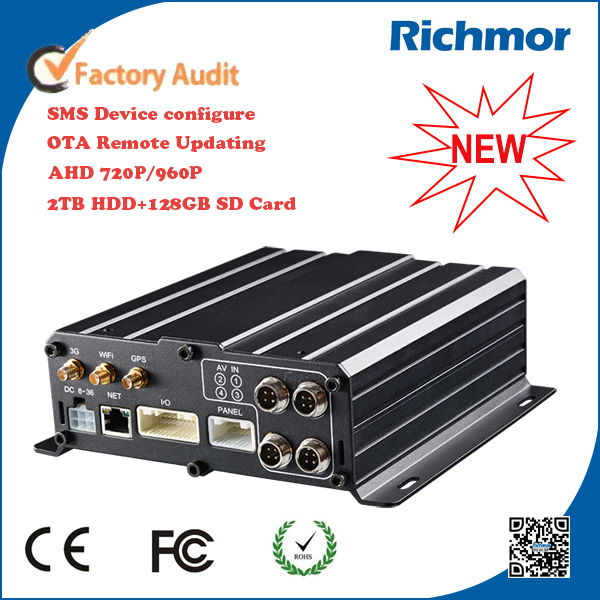

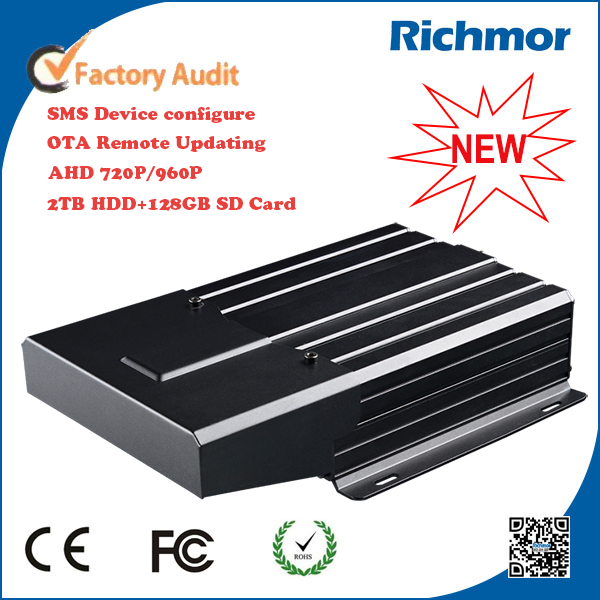

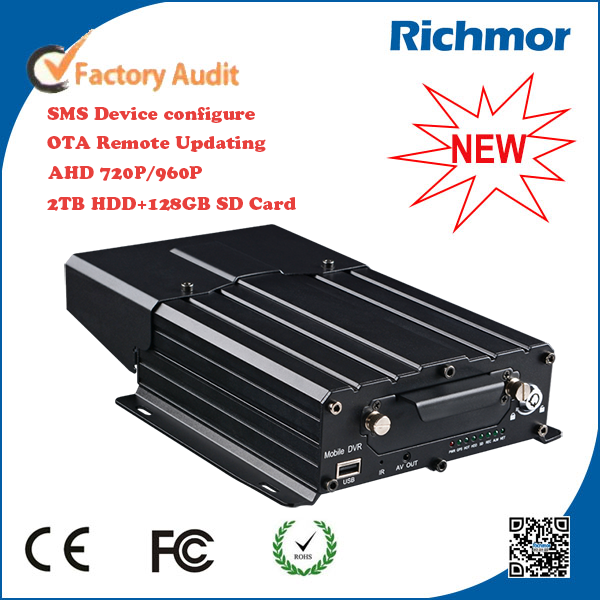

- 2TB HDD 3G/4G WIFI GPS G-sensor Vehicle Mobile DVR 4CH AHD 960P/720P Realtime MDVR
- Main Features
- HIS Solution,H.264 Compression,support 4ch 720P AHD input and AHD Camera input.
- Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stablely and completely.
- 6-36V wide voltage with low power consumption.
- Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
- Support HDD heating functions,can work in harsh environment.
- Support GPS/BD/G-Sensor Extension modul;
- Realize realtime monitor through 3G/4G;
- Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
- Support IOS/Android Phone Remote monitor
- Max 2TB HDD + 128GB SD Card Mirror Recording,protect DVR from shock & Dust damage;
Hot sale 3g 4g wifi SD card Vehicle Mobile DVR
(RCM-MDR7104 SERIES)
3g 4g SD card Vehicle Mobile DVR

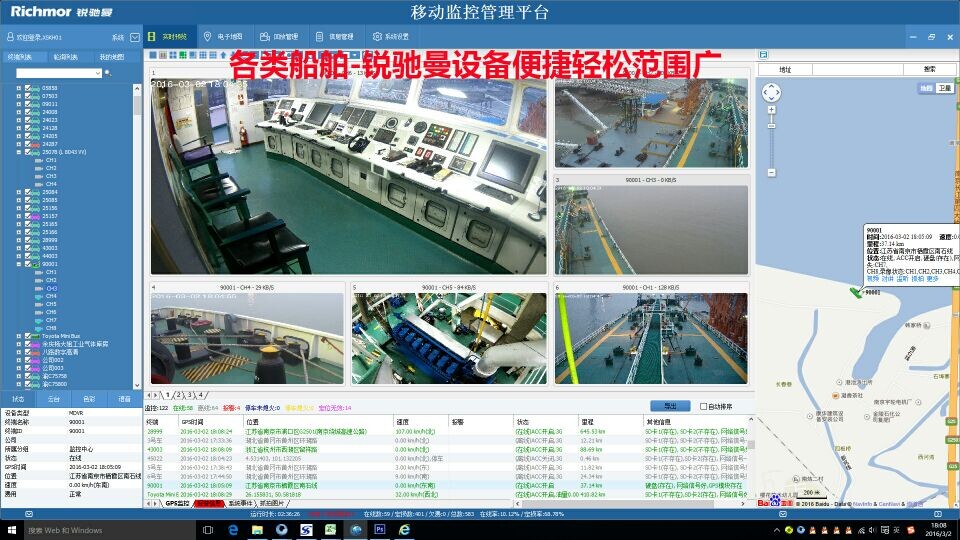

Richmor actual case
Specification
3g 4g SD card Vehicle Mobile DVR
|
Item |
Parameter |
||||
|
OS |
Linux |
||||
|
Language |
English/Chinese/Customized |
||||
|
Video Compression |
H.264 Compression |
||||
|
OSD |
Overlays information such as date time and vehicle ID |
||||
|
GUI |

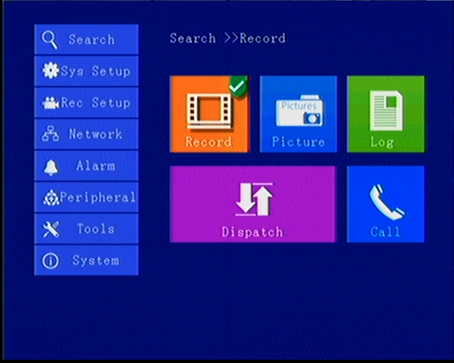

Graphical User Interface |
Setup system parameters with the remote control. |
|||
|
Video Record System |
Video Input |
4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
|||
|
Video Onput |
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view |
||||
|
Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
||||
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
||||
|
Image Quality |
1-4 levels, 1 is the highest level. |
||||
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
||||
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
||||
|
Audio |
Audio Input |
4CH Aviation Plug Input |
|||
|
Audio Output |
2CH,headphone connect at front panel, BNC Connect on Back panel |
||||
|
Compression |
G.726 compression, 8KB/s speed |
||||
|
Alarm Input |
7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage |
||||
|
Alarm Output |
2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off |
||||
|
Interface |
3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
|
||||
|
1CH 485 Interface,Connect PTZ Camera |
|||||
|
Wireless Transmission |
Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE; Built in 4G module optional, TDD-LTE, FDD-LTE |
||||
|
GPS Position |
Support Built GPS/BD Module |
||||
|
|
HDD |
Max 2.5” 1TB HDD |
|||
|
Storage |
SD Card |
Max 128GB SD Card Mirror Recording Keep Data Safety |
|||
|
Update |
Support USB Updating, SD Card Updating,OTA Remote Updating |
||||
|
File Format |
H.264 |
||||
|
File System |
Special FAT32 File System |
||||
|
|
USB |
USB Interface on Front Panel for data back up by U Disk,Hard Disk |
|||
|
Record Replay |
Video Search |
Search By Record Time/Record Type etc |
|||
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
||||
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
|||||
|
Security |
User/Admin 2 Level Different Password |
||||
|
Optional Functions |
Voice Call |
Support voice call each other |
|||
|
TTS Voice Broadcast |
Support TTS voice broadcast function. |
||||
|
Serial Expand |
Support LED Advertisement Panel,Oil Sensor, POS,Bus Station Broadcaster,Car OBD,ect.external device |
||||
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
|||
|
Input Voltage |
DC:+6V - +36V |
||||
|
Output Voltage |
+12V~1.5A,+5V~1.5A |
||||
|
Power |
Working <5W |
||||
|
Working Environment |
Temperature |
-20℃ - +70℃ |
|||
|
Humidity |
20% - 80% |
||||
|
Ohters |
Size
|
200 (D)* 187(W)* 62(H) mm |
|||
|
Weight |
1.90 Kg |
||||

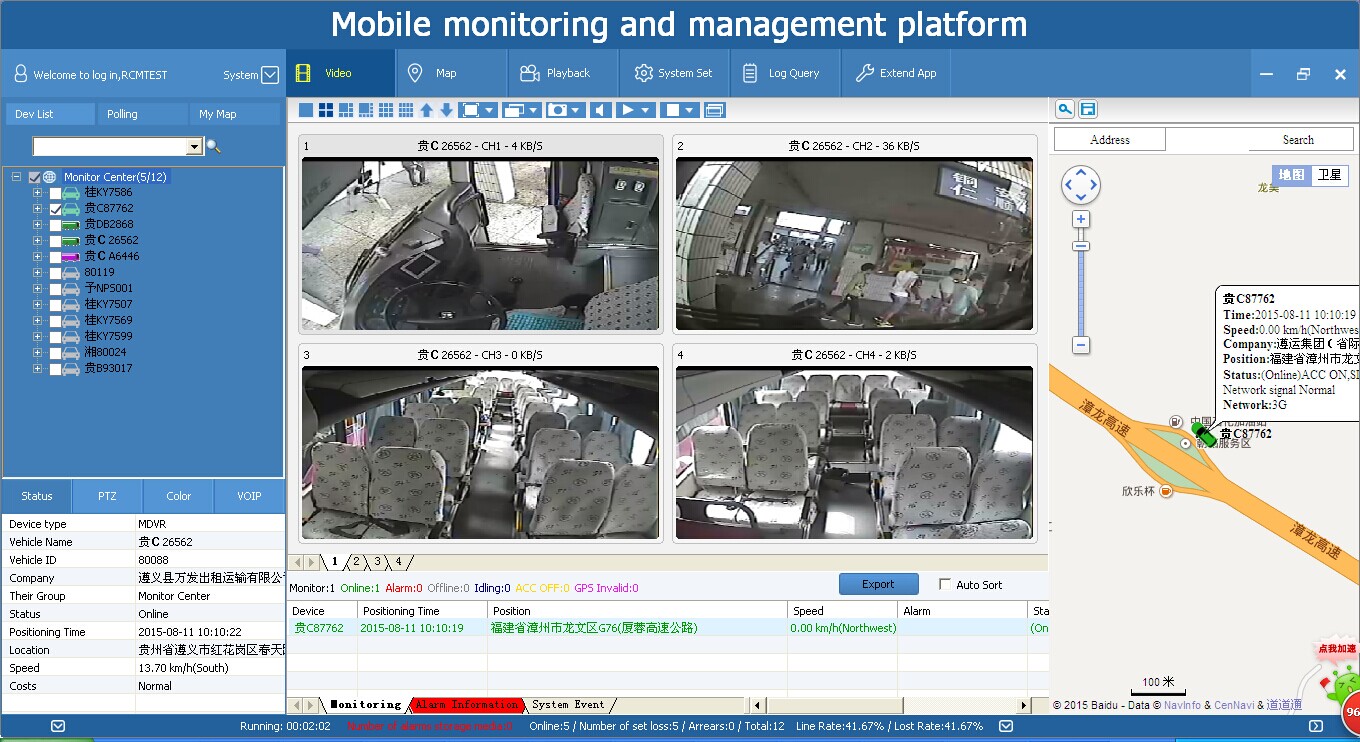

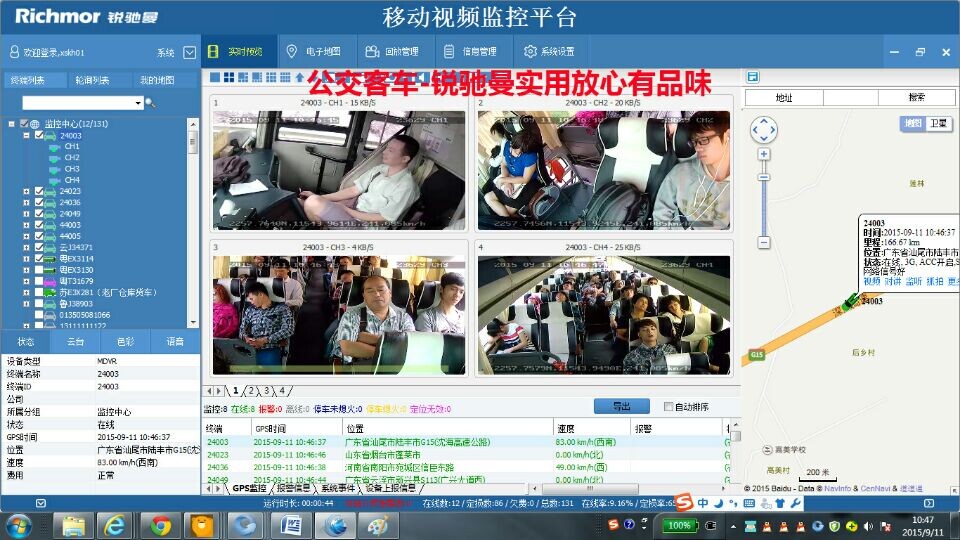

CMSV6 Interface
CMSV6 In Mobile Phone
Have all in the palm of your hand
Real-time monitoring via Mobile Phone
Support iPhone, Android, iPad system
Video & Audio Monitoring Online Vehicle GPS
Satellite Map Video Storage
PTZ control Tracking Display Picture Snapshot Voice intercom
Q: During playback, the map doesn't show?
A: Possible reasons are as follows;
1.Net cable did not connect to PC;
2.Net works, but the computer can not get to the Internet;
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they
will delete the original video records respectively.
Q: The device was opened, HDD was installed, but the device can not record successful.
A: 1.Check the HDD/SD Card was formatted or not, the unformatted HH/SD Card
can not be used. Enter into the Main Menu – System Setup – Formatting the new
installed HDD/SD Card.
2. If the recording channel is closed, if set the timing recording, it can not recording
when it beyond the period of timing recording.
3. If the HDD is connect well, if the HDD/SD light is on.
Shipping
ng cooperated with DHL/UPS Etc for fast and safety delivery.
a. 2-5 days after payment cleared for sample order.
b. 5-10 days after payment cleared depends on order quantity for bulk order.
