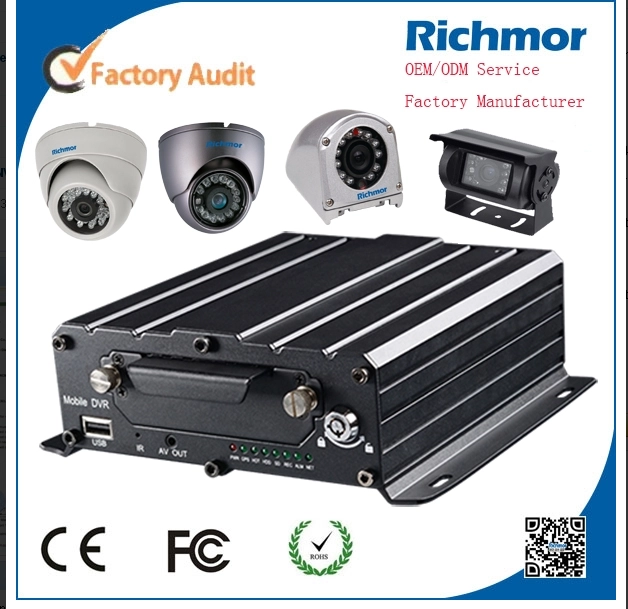

2TB hdd ssd supported 4ch/8ch RFID school bus mobile dvr with 3g gps
- 4 Channel,H.264,720P/D1/HD1/CIF
- 3G 4G GPS for optional
- HDD(up to 2TB)+SD Card(up to 128GB) for saving recording
- Support Alarm Automatically and Manual
|
Item |
Parameter |
|||
|
OS |
Linux |
|||
|
Language |
English/Chinese/Customized |
|||
|
Video Compression |
H.264 Compression |
|||
|
OSD |
Overlays information such as date time and vehicle ID |
|||
|
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
||
|
Video Record System |
Video Input |
4CH 720P AHD input/SD input/ mixed input,aviation connector, 1.0Vp-p, 75Ω |
||
|
Video Output |
2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen, 4CH Screen view |
|||
|
Preview |
Support 1 channel and 4 channels preview., Support Manual/Alarm Trigger full screen preview |
|||
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels 720P and 4 channels D1 |
|||
|
Image Quality |
0-7 levels, 0 is the highest level. |
|||
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|||
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|||
|
Audio |
Audio Input |
4CH Aviation Plug Input |
||
|
Audio Output |
2CH,headphone connect at front panel, BNC Connect on Back panel |
|||
|
Compression |
G.726 compression, 8KB/s speed |
|||
|
Alarm Input |
7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage |
|||
|
Alarm Output |
2CH Alarm Output,Support Light/ Sound alarm sensor,Oil/Power cut off |
|||
|
Interface |
3CH RS232, POS/Fuel Sensor/ LED Advertisement Connection
|
|||
|
2CH 485 Interface,Connect PTZ Camera |
||||
|
2CH CAN interface |
||||
|
Wireless Transmission |
Support Built in 3G transmission, WCDMA, CDMA2000,GPRS, EDGE； Built in 4G module optional, TDD-LTE, FDD-LTE |
|||
|
GPS Position |
Support Built GPS/BD Module |
|||
|
|
HDD |
Max 2.5” 2TB HDD |
||
|
Storage |
SD Card |
Max 128GB SD Card Mirror Recording Keep Data Safety |
||
|
Update |
Support USB Updating, SD Card Updatin, OTA Remote Updating |
|||
|
File Format |
H.264 |
|||
|
File System |
Special FAT32 File System |
|||
|
|
USB |
USB Interface on Front Panel for data back up by U Disk,Hard Disk |
||
|
Record Replay |
Video Search |
Search By Record Time/Record Type etc |
||
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|||
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||||
|
Security |
User/Admin 2 Level Different Password |
|||
|
Optional Functions |
Voice Call |
Support voice call each other |
||
|
Serial Expand |
Support LED Advertisement Panel、Oil Sensor、 POS、Bus Station Broadcaster、 Car OBD,ect.external device |
|||
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
||
|
Input Voltage |
DC:+6V - +36V |
|||
|
Power |
Working ＜5W |
|||
|
Temperature |
-20℃ - +70℃ |
|||
|
Working Environment |
Humidity |
20% - 80% |
||
|
Size
|
200 （D）* 187（W）* 62（H） mm |
|||
|
Others |
Weight |
1.90 Kg |
||
Main Features
1. HIS Solution,H.264 Compression,support 4CH 720P AHD input/ 4CH analog standard definition Camera input/2CH HD + 2CH SD mixed input;
2. 3CH video output (2CH CVBS video, support front&rear panel output; VGA output for optional.)
3. Exclusive pre-allocate File System protect data completeness, prevent SD Card fragment,ensure date stablely and completely.
4. 8-36V wide voltage with low power consumption.
5. Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
6. HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
7. Support 2 USB interfaces, data backup and device upgrade.
8. Support 9CH alarm input (1CH analog input + 8CH IO alarm input ), 2CH independent alarm output.
9. Support 2 CAN interfaces.
10. Support HDD heating functions,can work in harsh environment.
11. Support GPS/BD/G-Sensor Extension modul;
12. Realize real-time monitor through 3G/4G;
13. Support WIFI module, can download data automatically.
14 Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
15. Support SMS remote configure/ control device;
16. OTA(On-The-Air) Device automatically upgrade function, can upgrade to updated version , maintenance is more convenient.
17. Support voice call function.
18. Support IOS/Android Phone Remote monitor
PC Software interface for gps tracking
Android/IOS APP Monitor
Server software interface

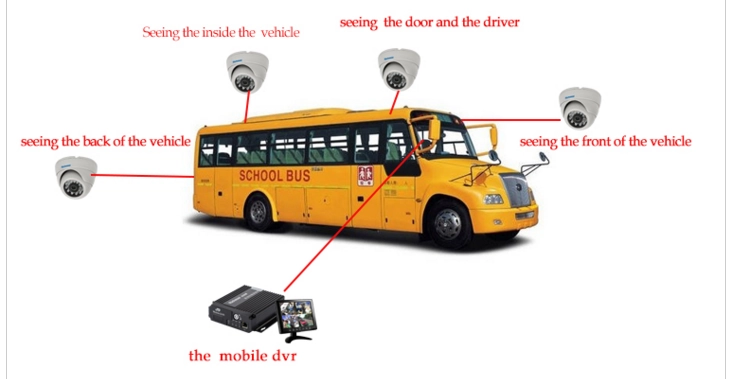

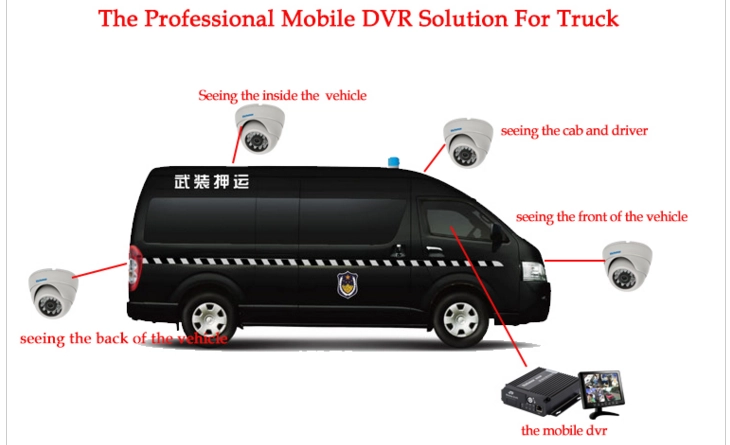

Application
