2016 For transit Bus New 5CH hdd/SD card mobile DVR/NVR with 4ch AHD camera video and 1ch 1080P IPC

  • Support Alarm Automatically and Manual
  • Place of Origin:
  • Guangdong, China (Mainland)
  • Brand Name:Richmor
  • Product Name:RCM-MDR7105
  • CE FCC RoHS Approval
  • Compression:H.264 4channel
  • Factory Directly Sale,Competitive Price
  • 3G 4G WIFI GPS For optional
  • 1-5 Channel,can connect 1-5 cameras
  • 1080p/720P/ D1/HD1/ CIF for optional
  • HDD(up to 2TB)+SD Card(up to 128GB) for saving recording
  • TV system:PAL or NTSC
  • Range of use:car, bus, truck, ship
  • Voltage:8~36V
  • Warranty:12 months

2016 For Transit Bus New 5CH hdd/SD card mobile DVR/NVR with 4ch AHD camera video and 1ch 1080P IPC

(RCM-MDR 7105 Series)

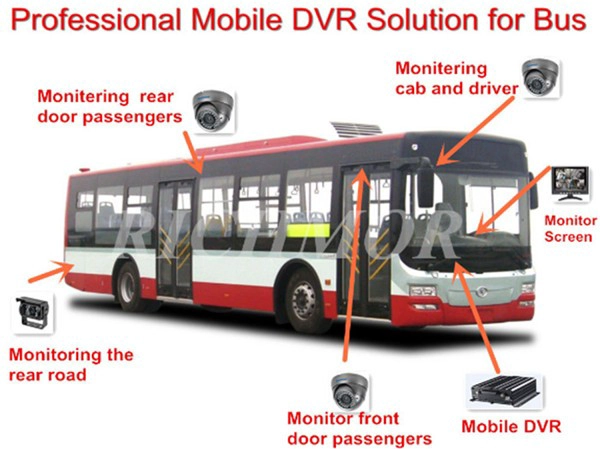

Romote Viewing Surveillance 3G 4G GPS WIFI 5CH HDD Mobile DVR Transit bus solution









Detail pictures

Romote Viewing Surveillance 3G 4G 5ch GPS WIFI HDD Mobile DVR/ NVR with 1 CH IPC



Romote Viewing Surveillance 3G 4G 5ch GPS WIFI HDD Mobile DVR/ NVR with 1 CH IPC

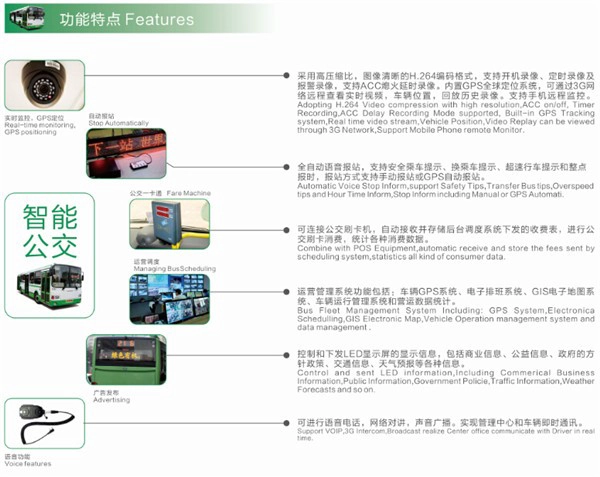

Product features

Romote Viewing Surveillance 3G 4G 5ch GPS WIFI HDD Mobile DVR/ NVR with 1 CH IPC





Romote Viewing Surveillance 3G 4G 5ch GPS WIFI HDD Mobile DVR/ NVR with 1 CH IPC



Romote Viewing Surveillance 3G 4G 5ch GPS WIFI HDD Mobile DVR/ NVR with 1 CH IPC













Richmor surveillance GUI



RCM-MDR7105 Parameter Sheet



Item

Parameter

OS

Linux

Language

English/Chinese/Customized

Video Compression

H.264 Compression

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH real-time 720p million pixels Analog HD input /

4CH analog standard definition input/2CH analog input+

2CH HD mixed input+ 1CH 1080P network camera input),

aviation connector, 1.0Vp-p, 75Ω

Video Output

2CH CVBS output+1CH VGA output for optional,1.0Vp-p,

75Ω,Support 1CH Full Screen,4CH Screen view

Preview

Support 1 channel and 4 channels preview,

5 channels splice preview Support Manual/

Alarm Trigger full screen preview

Resolution

1080P/720P/D1/HD1/CIF, MAX:4 channels of 720P +

1080P / 4 channels of D1

Image Quality

1-4 levels, 1 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multilevel video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH Aviation Plug Input

Audio Output

2CH,headphone connect at front panel,

BNC Connect on Back panel

Compression

G.726 compression, 8KB/s speed

Alarm Input

7CH Alarm Input,1CH AD Input,

impulse speed input,Alarm Linkage

Alarm Output

2CH Alarm Output,Support Light/

Sound alarm sensor,Oil/Power cut off

Interface

3CH RS232, POS/Fuel Sensor/

LED Advertisement Connection



2CH 485 Interface,Connect PTZ Camera

Wireless Transmission

Support Built in 3G transmission,WCDMA,

CDMA2000,GPRS, EDGE;

Built in 4G module optional, TDD-LTE, FDD-LTE

GPS Position

Support Built GPS/BD Module



HDD

Max 2.5” HDD

Storage

SD Card

Max 128GB SD Card Mirror Recording Keep Data Safety

Update

Support USB Updating, SD Card Updating,

OTA Remote Updating

File Format

H.264

File System

Special FAT32 File System



USB

USB Interface on Front Panel for

data back up by U Disk,Hard Disk

Record Replay

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/

Fast/Slow at same time

Support forward and backward

play at the speed of: x 2,x4,x8,x16.

Security

User/Admin 2 Level Different Password

Optional Functions

Voice Call

Support voice call each other

TTS Voice Broadcast

Support TTS voice broadcast function.

Serial Expand

Support LED Advertisement Panel、

Oil Sensor、POS、Bus Station Broadcaster、

Car OBD,ect. external device

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off/

over-load/Reversing connection/voltage shortage/

short circuit etc.



Input Voltage

DC:+6V - +36V

Power

Working <5W

Working Environment

Temperature

-20℃ - +70℃

Humidity

20% - 80%

Others

Size



200 (D)* 187(W)* 62(H) mm

Weight

1.90 Kg











Detail Features

1. Support 5CH video input, video recording and playback (4CH real-time 720p mega pixels Analog HD input /4CH analog standard definition input/2CH high definition & 2CH analog standard definition mixed input+1CH 1080P network camera input)

2. 3CH video output (2CH CVBS video output,Support front and rear output; 1CH VGA output for optional )

3. Exclusive pre-allocate DVR Special File System Technology,Solving repeatedly wipe cause file fragmentation, solving storage file system crash, data loss and cannot find storage media and file garbled, ensure the integrity of the data.

4. 8-36V wide voltage with low power consumption. Support Reverse Protection、over-voltage/over-current protection.Output max to 10Amps current, support 12V & 5V peripheral equipment power supply. Ultra low power design;

5. Unique UPS Technology ensures the integrity of record when power failure occurs,even can last for 8-10s.

6. HDD+SD Card Storage ( Support 2.5”HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;

7. Support 2 USB ports, data backup and equipment upgrades.

8. Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.

9. Support 2 CAN interface.

10. Support HDD heating functions,can work in harsh environment.

11. Support GPS/BD/G-Sensor Extension module;

12. Realize real-time monitor through 3G/4G;

13. Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

14. Support OTG device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient

15. Support IOS/Android Phone Remote monitor

16. High reliability aviation connectors, high cost performance, stable and reliable.





Player software interface (CMSV6 In PC )





CMSV6 In Mobile Phone.


Have all in the palm of your hand

Real-time monitoring via Mobile Phone --Support iPhone, Android, iPad system






Surveillance platform Playback



Richmor Mobile DVR Mileage Summary



Richmor actual case






Application

 Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
