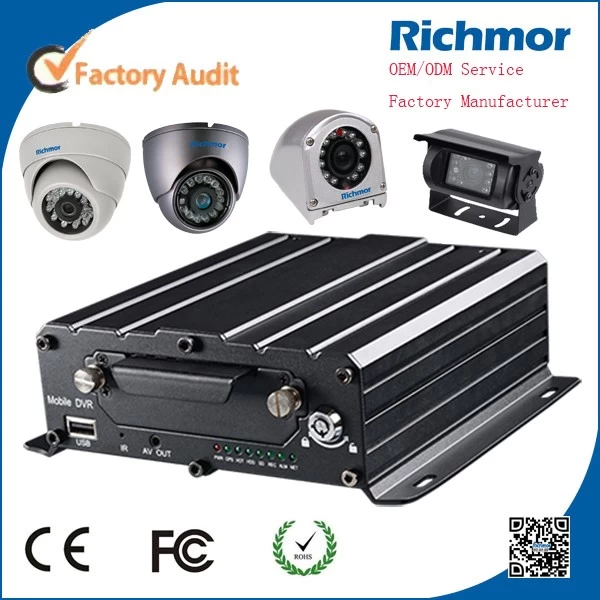

1080P 4ch/8ch HDD GPS 3G wifi build-in G-sensor Vehicle Mobile DVR original factory1080P 4ch/8ch HDD GPS 3G wifi build-in G-sensor Vehicle Mobile DVR original factory

1080P 4ch/8ch HDD GPS 3G wifi build-in G-sensor Vehicle Mobile DVR original factory

  • 1080P 4ch/8ch HDD GPS 3G wifi build-in G-sensor Vehicle Mobile DVR original factory
  • Quick Details
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Richmor/OEM
  • Model Number: Mdvr7104
  • Professional Power Design for Vehicle: 6~48V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
  • Function: Support 3G,GPS,wifi,alarm etc.
  • Special Delay Power off circuit: support systerm continus running after vehicle power off.
  • Resolution: D1/HD1/CIF selectable.
  • System Protection: Saving the recording data when the power off, support hdd upgrading PTZ control: RS232 can turn to PTZ interface
  • monitoring device: PC/Mobile phone
  • signal format: PAL/NTSC
  • record storage: max 2TB HDD& 128GB SD card
1080P 4ch/8ch HDD GPS 3G wifi build-in G-sensor Vehicle Mobile DVR original factory



product specifications
Item parameter
Operating System Linux
Language English/chinese/customized
Video Compression H.264 Compression
OSD overlays information such as date time and vehicle ID
GUI Graphical user interface setup system parameters with the remote  control
Video Record System  video input     4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω
 video output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

resolution 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
image quality 1-4 levels, 1 is the highest level.
video standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

record mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.

Audio audio input 4CH Aviation Plug Input
audio output 2CH,headphone connect at front panel, BNC Connect on Back panel
compression G.726 compression, 8KB/s speed
Alarm Input 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera

product show












(1)FAQ:

Q:Are you factory manufacturer or trade company?

A:We are factory manufacturer,we have our own factory and technology/skill support,we have engineers to support/take charge of R&D ,resolve problems product.

Q: Does the MDVR support Hard drive and SD card?

A: Yes, HDD version MDVR supports SSD, HDD, and SD card. SD card version MDVR supports max 2 SD card.

The storage capacity can be from 32GB to 2TB.

2.Q: Is it difficult to install MDVR into the vehicle?

A: Actually it is easy to install it into vehicle. Most driver can figure out how to connect the power cables.

And the camera installation is more easy. Just screw, connect and mount on the target place inside the vehicle.

3.Q: If I need door open and close alarm, overspeed alarm, reverse video, brake video, left-turn video, right-turn video, etc,is it available?

A: Definitely yes!

The I/O RS232 and 485 extension port is for all expanded purposes, including the functions above.

In fact, there are more customized functions which can be connect through this port, such as Fuel sensor, Counter system,PTZ camera, and so on.

4.Q: We have our own platform and server, can we use your MDVR? Do you have SDK or can you do customized platform for us?

A: Yes, we have SDK ready and welcome your OEM customized order!

5.Q: I ever bought MDVR from other supplier. But the anti-vibration is not strong. Now the MDVR works bad and video recording is not good. I am adfraid to buy again.


Packaging & Shipping

1),packaging detail

1pc/box,1box/carton,by standard box and carton,packing method can be as per your request.

2),Shipping detail

we can delivery goods by air,by sea,by truck,etc.

3),Sample time

3-5days after sample fee and sample details confirmed.dispatch/send it by DHL/UPS/TNT/Fedex or by sea/by air/by special lines.

4),goods delivery date

5-15days after deposit and order details confirmed.

5),what is payment term?

we can accept T/T,Western Union,Paypal,Bank Transfer,L/C and so on,you can choose one of them.

6),what's the trade term?

30% T/T in advance for deposit,the balance should be cleared before shipment.


What we expecting is being your helpful business partner with long term relationship !
