best selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvrbest selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvrbest selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvrbest selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvrbest selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvr

best selling H.264 4CH and 8CH mobile dvr / network security cctv mobile dvr 8ch car dvr

  • SALES POINTS
  • 8CHANNEL 4G  FULL D1 2TB+128GB HDD Mobile DVR H.264 Compression,support 8CH D1 real-time video recording ;
  • 3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).
  • Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.
  • Support 2 USB ports, data backup and equipment upgrades.
  • Support 9CH alarm input (1CH Analog input + 8CH IO alarm input),2CH Independent alarm output.
  • Support OTA Device upgrade automatically, , device can automatically upgrade version update, maintenance is more convenient
Product Description

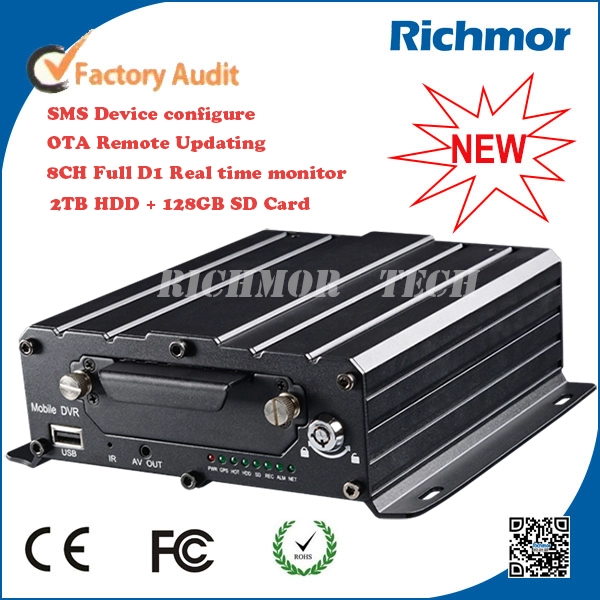

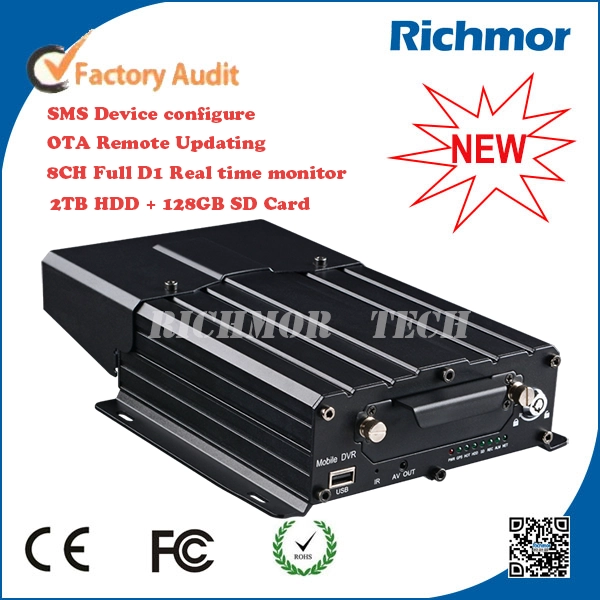

  8 CHANNEL 4G  FULL D1 2TB+128GB HDD Mobile DVR



Main Features



HIS Solution,H.264 Compression,support 8CH D1 real-time video recording ;

3CH video output (2CH CVBS video, support Front&Rear output; VGA output for optional ).

Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stably and completely.

8-36V wide voltage with low power consumption.

Unique UPS Technology ensures the integrity of record when power failure occurs,even can for 8-10s.

HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;

Support 2 USB ports, data backup and device upgrade.

Support 9CH alarm input (1CH analog input + 8CH IO alarm input ), 2CH independent alarm output.

Support 2CH CAN interface.

Support HDD heating functions,can work in harsh environment.

Support GPS/BD/G-Sensor Extension module;

Realize real-time monitor through 3G/4G;

Support WIFI module, can download data automatically.

Support SMS remotely configure/control device;

Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

Support voice call function.

Support OTA (On-The-Air) function, device can automatically update the new version, more convenient to maintain.

Support IOS/Android Phone Remote monitor.






 Specifications

Item Parameter
OS Embeded Linux
System Language English/Chinese/Customized
Video Compression H.264 Video Compression
OSD Overlays information such as date time and vehicle ID

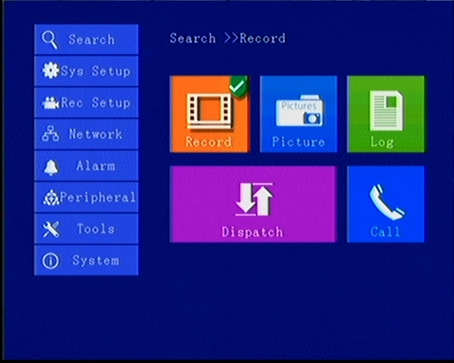

GUI Graphical User Interface Support externally connect monitor screen. Setup system parameters with the remote control.
Video Record System Video Input 8CH standard definition input,aviation connector, 1.0Vp-p, 75Ω
Video Output 2 CVBS output+ VGA output(Optional) , 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen,9CH screen.
Preview Support 1 channel ,4 channels and 9 channels preview.,Support Manual/Alarm Trigger full screen preview
Resolution D1/HD1/CIF, MAX: 8 channels D1.
Video Quality 0 -7 levels, 0 is the highest level.
Video Standard PAL: 100f/s , CCIR625 line,50field;
NTSC: 120f/s, CCIR525 line,60field;
CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;
HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;
D1: 800Kbps ~ 3Mbps, 8 level video quality optional;
Record Mode The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
Audio Audio Input 8CH Aviation Connector
Audio Output 2CH, headphone connect at front panel, BNC Connect on Back panel
Audion Compression G.726 compression format, 8kb/s
Alarm Input 7CH Alarm Input,1CH AD Input, impulse speed input,Alarm Linkage
Alarm Output 2CH alarm Output,Support Light/Sound alarm sensor,Oil/Power cut
Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera
Wireless Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;
Built in 4G module optional, TDD-LTE, FDD-LTE
GPS Support GPS
Storage HDD Max 2.5” 2TB HDD
SD Max 128GB SD Card Mirror Recording Keep Data Safety
Updating Support USB Updating, SD Card Updating,OTA Remote Updating
File Format 0.264
File System Special FAT32 File System
USB USB Interface on Front Panel for data back up by U Disk,Hard Disk
Video Replay Video Search Search By Record Time/Record Type etc
Playback Max support 4CH Replay /Stop/Fast/Slow at same time
Support forward and backward play at the speed of: x 2,x4,x8,x16
Power Consumption Power Management Wide Voltage.Support Timed/Delay off
Voltage Input DC:+6V ~ +36V
Voltage Output +12V-2.5A,+5V-2.5A
Power Working <5W
Working Environment Temperature -20℃ to +70℃
Humidity 20% to 80%
Security Password User/Admin 2 Level Different Password
Other Size 200 (D)* 187(W)* 62(H) mm
Net Weight 1.90 Kg
Optional Functions Voice Call Support voice call each other
Option TTS Voice Broadcast Support TTS voice broadcast function.
Serial Expand Support LED Advertisement Panel,Oil Sensor,POS,Bus Station Broadcaster,Car OBD,ect. external device



Our Services















PC&Phone Monitoring

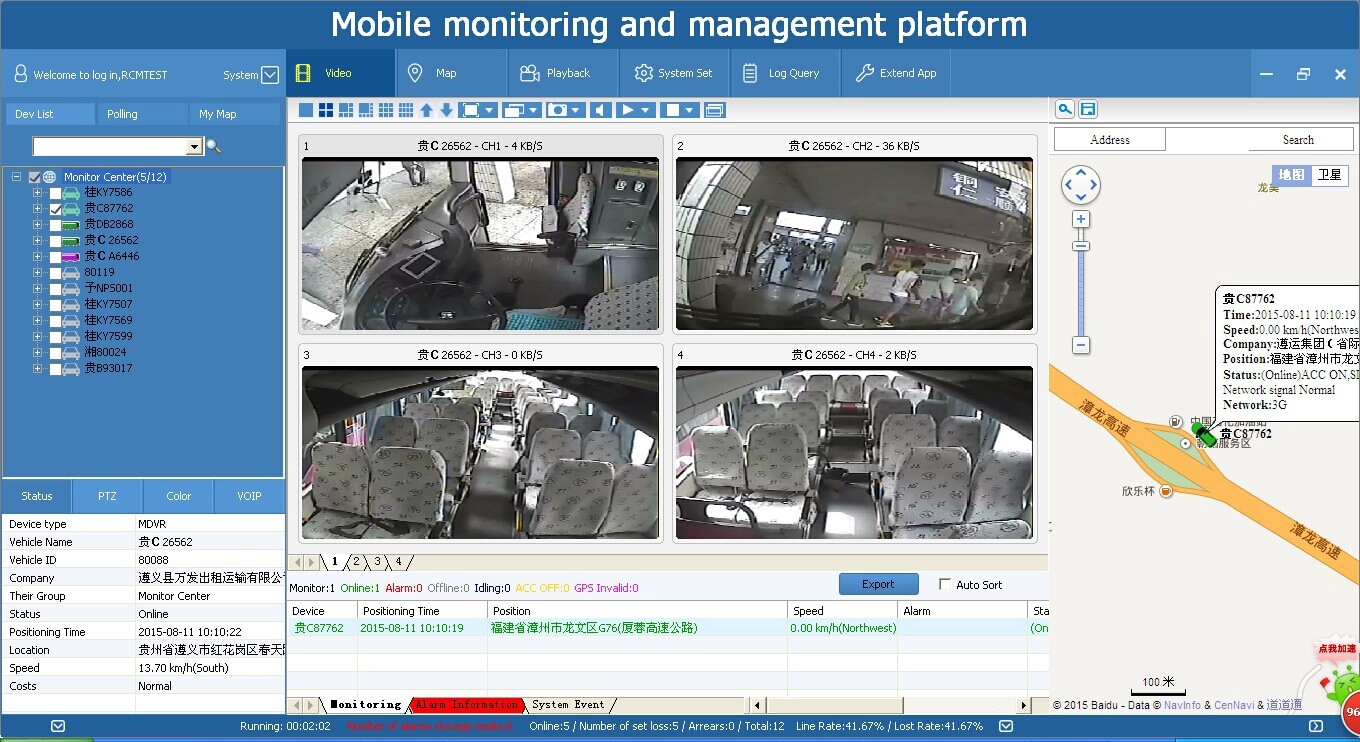

CMSV6  Interface








                                                  CMSV6 In Mobile Phone

                    Have all in the palm of your hand

                                 Real-time monitoring via Mobile Phone

                                                            Support iPhone, Android, iPad system

      Video & Audio Monitoring    Online Vehicle        GPS

    Satellite  Map             Video Storage

      PTZ control              Tracking Display                          Picture Snapshot             Voice  intercom







FQA

Q: During playback, the map doesn't show?
A: Possible reasons are as follows;
1.Net cable did not connect to PC;
2.Net works, but the computer can not get to the Internet;
Q: When SD card and HDD records, How is the record coverage?
A: SD card and HDD will record circularly for each other. When they are full, they
will delete the original video records respectively.

Q: The device was opened, HDD was installed, but the device can not record successful.
A: 1.Check the HDD/SD Card was formatted or not, the unformatted HH/SD Card
can not be used. Enter into the Main Menu – System Setup – Formatting the new
installed HDD/SD Card.
2. If the recording channel is closed, if set the timing recording, it can not recording
when it beyond the period of timing recording.
3. If the HDD is connect well, if the HDD/SD light is on.









CAMERA Accessory

Shipping





Strong cooperated with DHL/UPS Etc for fast and safety delivery.



a. 2-5 days after payment cleared for sample order.

b. 5-10 days after payment cleared depends on order quantity for bulk order.
