4CH Mini SD Card Car DVR Works with SSD Memory, Support 3G, GPS and WiFi4CH Mini SD Card Car DVR Works with SSD Memory, Support 3G, GPS and WiFi4CH Mini SD Card Car DVR Works with SSD Memory, Support 3G, GPS and WiFi

4CH Mini SD Card Car DVR Works with SSD Memory, Support 3G, GPS and WiFi

  • Industrial level material, wide range voltage input, professional UPS technology, Large capacity, Dual SD cards, Support 3G,GPS,WIFI,G-Sensor as extended functions, many recording types, support many extended functions(alarm, PTZ, LED),support mobile phone monitoring remotely, campact appearance.

4CH Mini SD Card Car DVR Works with SSD Memory, Support 3G, GPS and WiFi



Advantages
  1. First design for Panasonic company in Japan
  2. SMS trigger 3G online/Offline/Device restart
  3. 1 chip control 1channel video, high resolution
  4. Industrial level design,failure rate 10% less than market commerical design
  5. Developer team for OEM/ODM Service
  6. Mini size saving your shipping cost
  7. Cellphone remote live view Andriod/IOS APP supported
Detailed Images

Old Version

300 Old Version.jpg

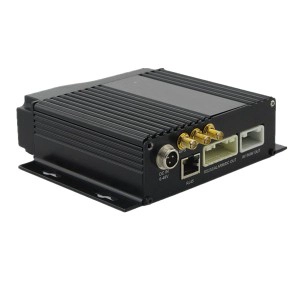

New Version

300 New.jpg



Specification



Items

Device parameters

Performance index

Name

Product Name

dual SD card mobile dvr

System

Operation System

Linux

Operation Interface

Graphical Interfaces, Chinese/English optional

File System

Proprietary Format

System Privileges

User Password

Video

Video Input

4ch SDI Independent Input: 1.0Vp-p,75Ω.Both B&W and Color Cameras

Video Output

1 Channel PAL/NTSC Output, 1.0Vp-p,75Ω, Composite Video Signal

Video Display

1 Or 4 Screen Display

Video Standard

PAL:25frames/Sec;NTSC:30frames/Sec

System Resources

PAL:100 Frames; NTSC:120 Frames

Audio

Audio Input

Four Channels Independent Input  500Ω

Audio Output

1 Channel(4 Channels Can Be Convert Freely)

Basic Output  Level

1.0—2.2V

Distortion Plus Noise

≤-30dB

Recording Mode

Sound And Image Synchronization

Audio Compression

ADPCM

Alarm

Alarm in

4 Channels Independent Input. High Voltage Trigger

Alarm out

2 Channels Independent output

Move Detect

available

Network

Interface

Wire line Access

Can Expand One RJ45 Ethernet Port

Wifi

Can Expand One Wifi Module Inside

3G

Can Expand One WCDMA or CDMA2000 Module Inside

GPS Interface

GPS

Can Expand GPS Module inside

Extend Interface

Intercom

Can Expand Intercom Module Inside

G-Sensor

Can Expand G-Sensor Module Inside

Others

Power Consumption

DC8-36V  5%   10W

Working Temperature

 -20°C ~ +85°C  ≤80%

Clock

Built-In Clock, Calendar

Packaging

Product Size

138(L)*112(W)*36(H)mm

Product Net Weight

360g
