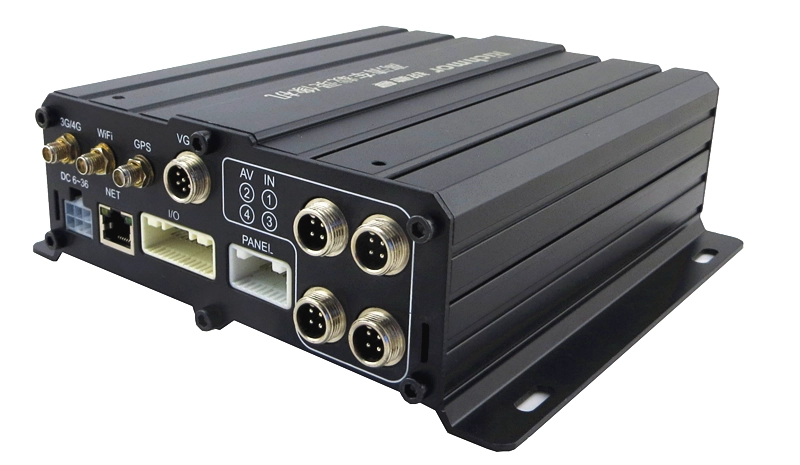

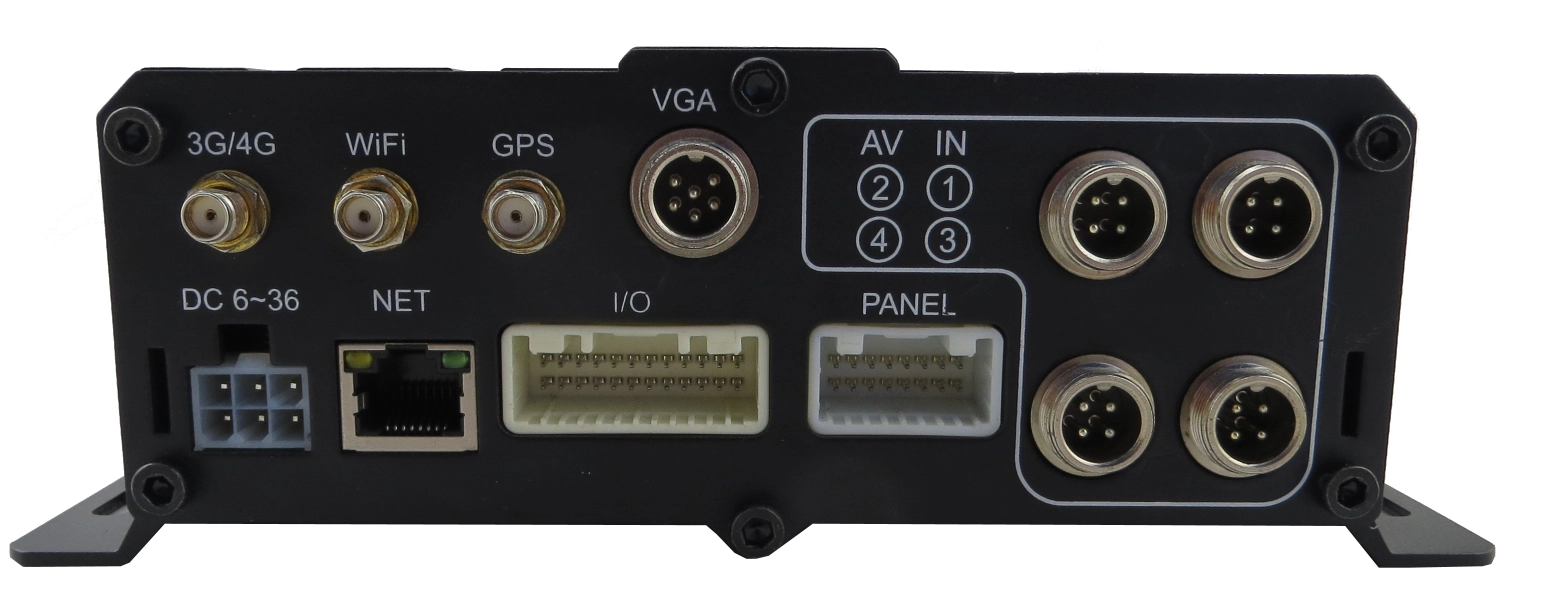

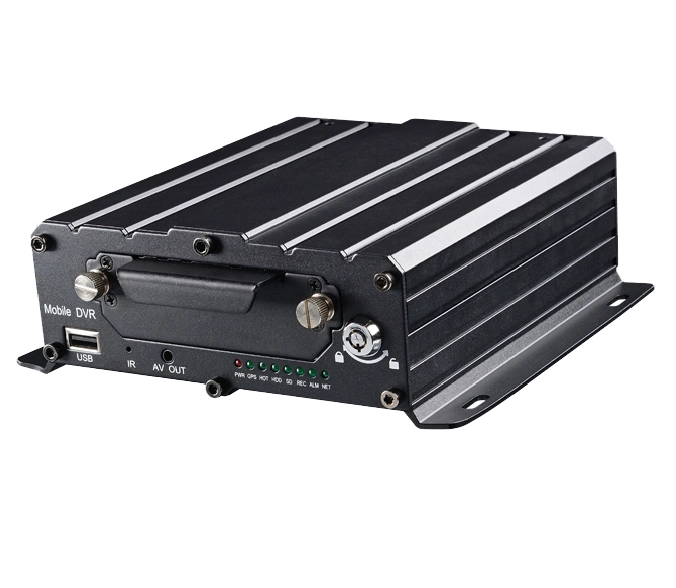

Richmor High Quality 4CH HDD 1080P FULL HD Mobile DVR for Truck Bus Logistics
- OS: Linux
- Language: Chinese/English/Others (can be customized)
- Video Compression: ASF Compression Mode
- Graphical User Interface: Can connect to external LED screen. Setup system parameters with the remote control.
- Video Input: 4CH 1080P AHD,aviation connector.
- Video Output: 2CH CVBS+ VGA output for optional, 1.0Vp-p, 75Ω
- Preview: Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview
- Resolution: Support 1080P/720P/D1/CIF, MAX:4 channels 1080P
- Video Quality: 0-7 levels, 0 is the highest level, 7 is the lowest level.
- Record Mode: The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.
- Audio Input: 8CH ,Aviation Plug
- Audio Output: 2CH,Front port is earphone port ,rear port connects to BNC connector.
- Compression: G.726 compression, 8KB/s speed
- Alarm Input: 7CH IO Alarm Input, 1CH AD input, pulse speed input; Support alarm linkage function
- Alarm Output: 2CH power on/off Output, Support the linkage acousto-optic alarm, cut off fuel oil/power,etc
- Communication Interface:
- 3CH RS232, support extension device, such as POS machine, Oil Fuel sensor, LED advertising screen , etc.
- 1CH 485 interface, can connect PTZ,etc.
- 2CH CAN interface.
- Storage: 2.5’’ HDD+ SD Card,each max 2TB HDD + 128GB SD Card mirror recording to protect data from loss
- Upgrade: Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically
- Voltage Input: DC:+8V ~ +36V
- Voltage Output: +12V@2.5A，+5V@2.5A
- Power Consumption: Normal Working ＜10W
- Temperature: -20℃ to +70℃
- Humidity: 20% to 80%
- Size: 200 （D）* 187（W）* 62（H） mm
- Net Weight: 1.9kg
- Main Features
- H.264 Compression, 4CH Real-time 720P/1080P High definition camera input.
- 3CH video output (1CH CVBS video, VGA output for optional.)
- Exclusive pre-allocate File System protect data completeness,prevent SD Card fragment,ensure date stable and complete.
- 8-36V wide voltage with low power consumption.
- Unique UPS Technology ensures the integrality of record when power failure occurs,even can for 8-10s.
- HDD+SD Card Storage ( Support 2.5” HDD, max 128G SD Card) protect from Shock & Dust damage;support USB port data backup and device update;
- Support 2 USB interfaces, data backup and device upgrade.
- Support 9CH alarm input (1CH Analog + 8CH IO Alarm input ), 2CH independent alarm output.
- Support 2 CH CAN port.
- Support HDD heating functions,can work in harsh environment.
- Support GPS/BD/G-Sensor Extension modules;
- Realize real time monitor through 3G/4G;
- Support WIFI module, can download data automatically.
- Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;
- Supporting the ministry of communications agreement.Support SMS remote configure/ control device;
- OTA(On-The-Air) Device automatically upgrade function, can upgrade to updated version , maintenance is more convenient.
- Support voice call function.
- Support IOS/Android Phone Remote monitor
- High level aviation interface,easily installation and better shockproof, more stable;
