OS: Embedded Linux
CPU Speed: 1.2GHZ
NOR FLASH CAPACITY: 32MB NOR+128M NAND
RAM CAPACITY: 1G
Video Input: 8 channel AHD HD analog input, aviation connection, 1.0Vp-p, 75Ω
Video Output: 2channel composite video output，1.0Vp-p，5 Ω, VGA input (optional), 1 channel / 2 channel / 5/4 picture segmentation / 9/6 picture segmentation
Preview: Support single CH /2 CH /4 CH /5 CH /6 CH /8 CH /9 CH splicing preview, support manual/event trigger full-screen display function
Resolution: 1080P/720P/D1/HD1/CIF,can be optional, max support 8channel 1080P
Image Quality: 0-7 levels, 0 is the highest level, 7 is the lowest level.
Kbps for record:
CIF: 256Kbps ~ 800Kbps,multilevel image quality can be optional
D1: 400Kbps ~ 1Mbps, multilevel image quality can be optional
720P:640Kbps-2Mbps, multilevel image quality can be optional
1080P:1024Kbps-4Mbps, multilevel image quality can be optional
Recording Mode: Default automatic recording, support ACC Power on、Manual recording、 alarm recording and etc
Analog output:
1ch preposition analog output
1ch postposition analog output(aviation)
Input channel: 8CH
AGC Control: Automatic
Sampling frequency: 8/16K
Sampling accuracy: 16
Interface Type: 4-core 12M-4B aviation connection/4-core 3.5mm headphone connection
Output channel: 3channel
Mute: support
GPS/BD: Supports dual mode positioning
Precision: ≤10m(95%)
starting time: warm reboot≤5s, cold reboot≤45s
repeat positioning: 1s

Main Features

1. Integrated ADAS (front safety auto-alarm) + DSM (Driver Status Monitor) + Driver facial recognition+BSD(Blind spot detection)

2. Integrated high-capacity storage, which can continue to store driving data and information when the plug-in storage is damaged or removed.

3. True AI MDVR chipset inside, has self-learning ability, can optimize according to different complicated occasions.

4. New user menu,more clear and simple. Support USB mouse setting, client APP setting, remote screen setting.

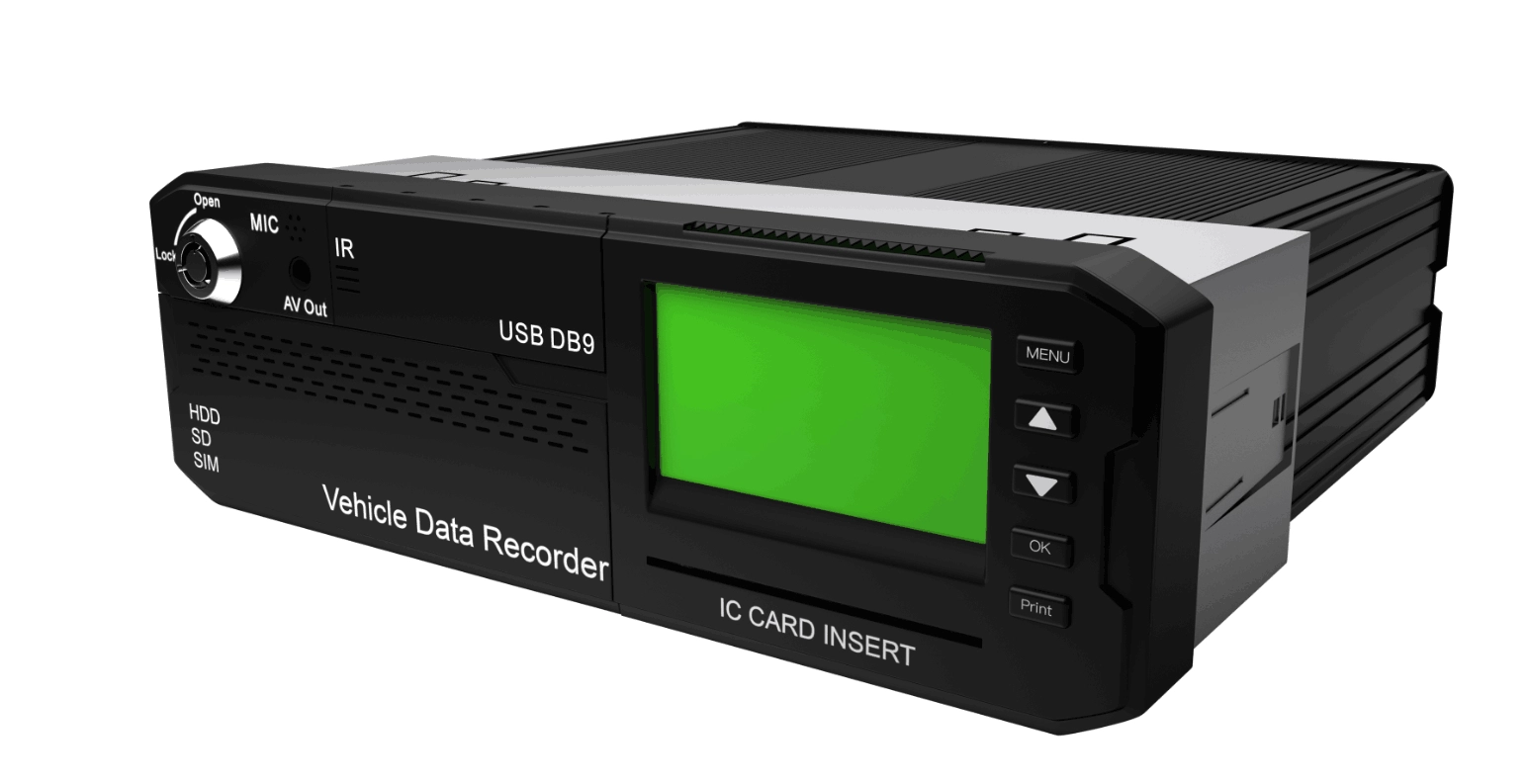

Product Show

Product Features

HIS solution, H.264/H.265 compression, multi-stream recording. Support max 8CH 1080P HD video monitoring / recording (8CH 1080P real-time AHD HD input), providing HD video effect;
Real time HD video recording, 1080p / 720p / D1 / HD1 / CIF optional, adjustable frame rate of image quality;
2CH video output. Support 1CH pre-analog output and 1CH post-analog output;
Professional MDVR power design, 8-36v DC voltage input; Protection circuits for overload / undervoltage / short circuit / which is suitable for various vehicles;
Provide DC12V and DC5V power output, which can provide constant voltage power for cameras, small screens and peripheral equipment;
SD (Max 2 Large Capacity SD ) protect data from vehicle vibration and dust etc,
The prevent Watchdog abnormal restart function which can protect the machine and video;
The unique pre-allocated MDVR system can solve: file fragments caused by repeated erasure, ensure the stability and integrity of data;
Stalling delay recording function (Max 24 hours); Built-in 3.7v/600mAh (Max1200mAh) backup battery. Support GPS upload after vehicle outage.
Protection of car accident outage: special UPS technology can make the machine work normally for 8-11s when off the external power supply (including backup battery)，so as to ensure the integrity of video and facilitate accident investigation
