AI Solution Smart Touch Screen Monitor DVR for Muck Truck Taxi
- Operating system: Android+LINUX
- Screen Size: 7”inch TFT true color
- Resolution: 1024*600
- Angle of view: 75 degrees left horizontal, 75 degrees right horizontal; Vertical up 70°, vertical down 70°(CR≥10)
- Touch screen: Capacitive touch screen
- Contrast: 600:1
- Amount of light: 400cd/m²
- Response time: 16ms
- RFID Reading: According to ISO 14443 standard RFID read and write, support Type A card read and write, support TypeB card( second generation ID Card) ID read; Highway yard designated module
- AI algorithm: Built-in DMS and face algorithm
- USB interface: 2*USB interface, can use to upgrade and back up
- Output: Built-in speaker, support TTS voice boardcast
- Input: Built-in singel channel microphone
- AHD Input: 6CH AHD Input
- Physical buttons: Video, navigation, home page, call, service evaluation
- Input/Output:
- 1CH detects ACC switch state input
- 5CH digital alarm input, 1CH annalog alarm input
- 1CH speed input,1CH CAN
- 3ch RS232 ,1CHRS4851
- Power supply: wide range voltage: DC 8-32V (Support 12V and 24V vehicles)
- Working current: ≤6W
- Sleeping current: <3mA
- The highest pressure: 100V/DC
- Anti-reverse power:
- Supply: >100V/DC
- Working temperature: -30°C ~ +70°C / RH 45% ~ 85%
- Storage environment: -40°C ~ +80°C / RH 30% ~ 90%
- Waterproof level: IP4X
- Drive: Provide SDK(library form), API documentation, testing cases
- Secondary development: Support secondary development，C/C++、JAVA、Eclipse
Brief Introduction

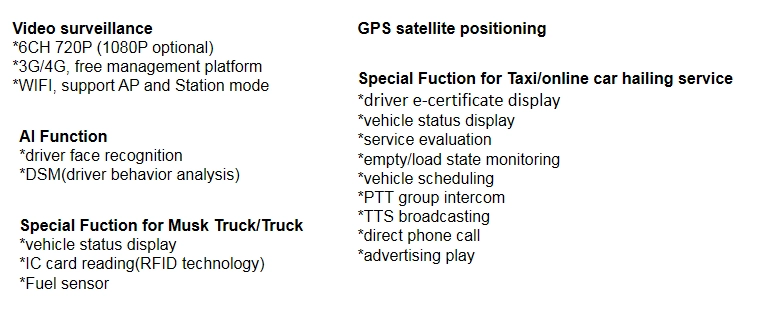

Functions mainly include:

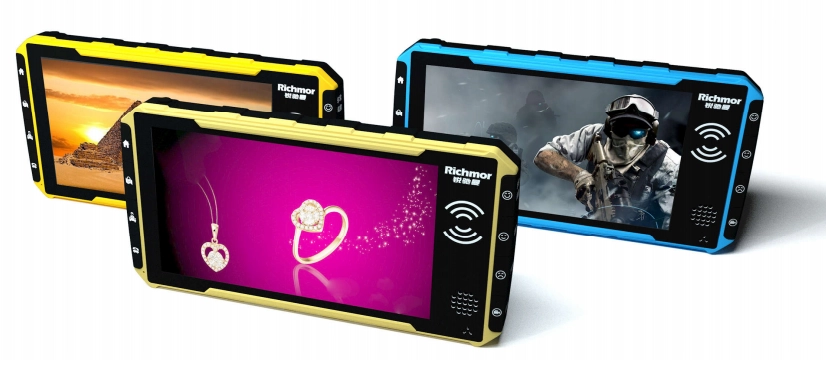

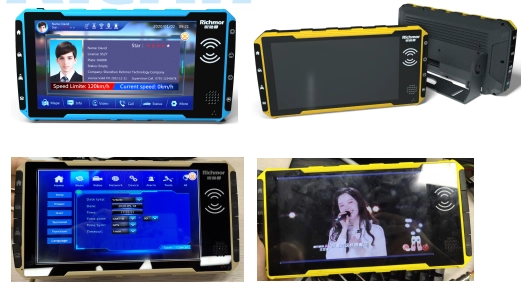

Product Show
Main Features
1.7 inch meet-standard HD Display, 1024*600 Resolution, delay time of pressing and touching less than 90ms, smooth operation.
2. Support AP and STATION mode switch. Can be a WIFI hot spot, also can backup data automatically.
3. Consists of LCD display area, swipe area, driver operation area and service evaluation area.
4. Integrated 3 / 4G communication module for fleet remote monitoring and management(video, gps,..)
5. Check Attendance: Support facial recognition and IC card recognition for driver.
6. Video Record: both inside and outside, max support 4~6CH*1080P.
7. Integrated AI algorithm, can realize facial recognition and DSM function. Give alarm prompt and upload data to monitor center when dangerous driving behaviors(Fatigue, Distract, Smoke, Call) happen.
8. Show E-certificate : Show driver’s name, photo, star level and so on information for supervision.
9. Emergency Command: Support dispatching message and question, report event.
10. Support GPS
11.Convenient call: Support phone book, dial pad, dialogue record function
12. Service Evaluation: Physical button on the side, Automatically send evaluation data to platform, Evaluation button for back row optional
13. Supervision: Integrated Top LED screen for remote supervision, can show dynamic security code.
14. Support control advertising on the top LED screen and on the internal LCD display.
2. Support AP and STATION mode switch. Can be a WIFI hot spot, also can backup data automatically.
3. Consists of LCD display area, swipe area, driver operation area and service evaluation area.
4. Integrated 3 / 4G communication module for fleet remote monitoring and management(video, gps,..)
5. Check Attendance: Support facial recognition and IC card recognition for driver.
6. Video Record: both inside and outside, max support 4~6CH*1080P.
7. Integrated AI algorithm, can realize facial recognition and DSM function. Give alarm prompt and upload data to monitor center when dangerous driving behaviors(Fatigue, Distract, Smoke, Call) happen.
8. Show E-certificate : Show driver’s name, photo, star level and so on information for supervision.
9. Emergency Command: Support dispatching message and question, report event.
10. Support GPS
11.Convenient call: Support phone book, dial pad, dialogue record function
12. Service Evaluation: Physical button on the side, Automatically send evaluation data to platform, Evaluation button for back row optional
13. Supervision: Integrated Top LED screen for remote supervision, can show dynamic security code.
14. Support control advertising on the top LED screen and on the internal LCD display.
