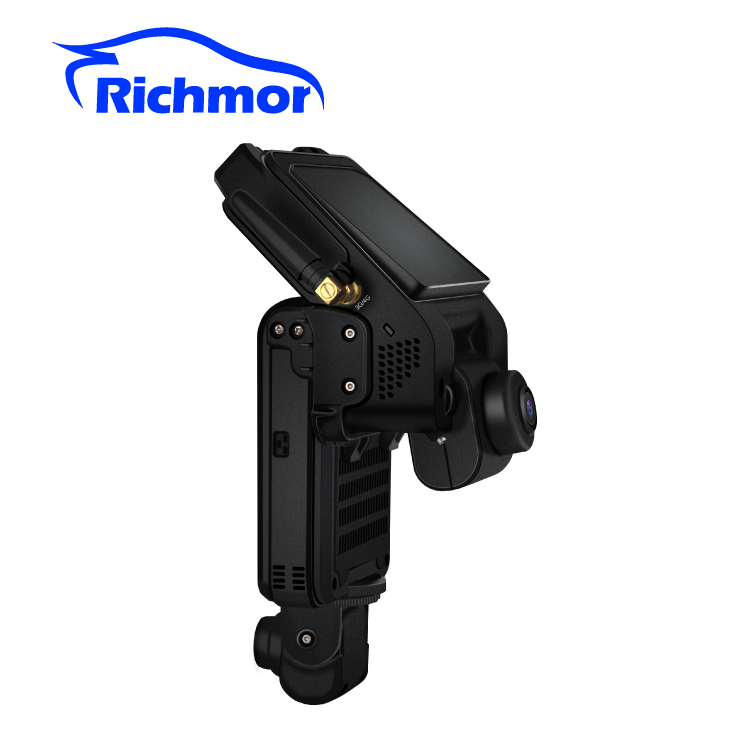

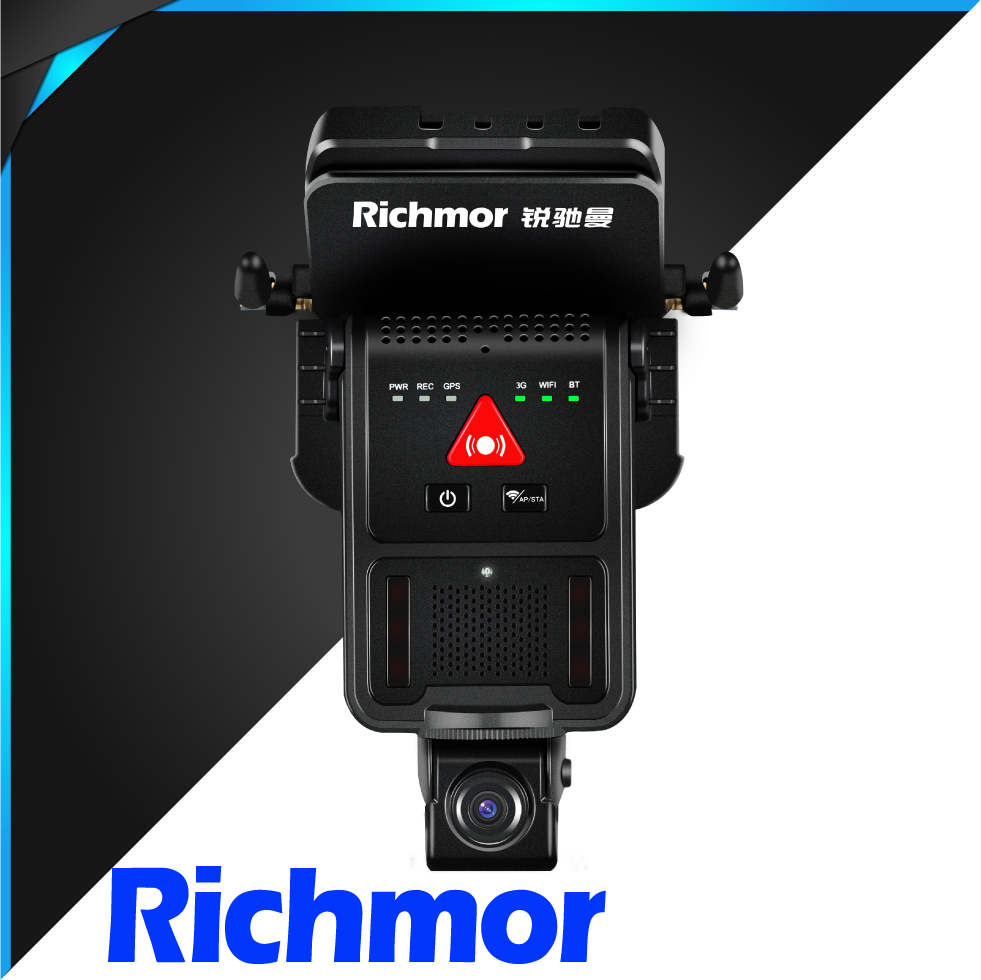

Modular Split Mini Camera DVR ------BK6

  • Build-in two cameras
  • Build-in Super-capacitor
  • Build-in GPS, 3G/4G wifi Module
  • Support Two SD Card
  • Support One Alarm Input, One RS232 port and One RS485 port
  • Support TTS Voice Function
  • Support Delay Power Off Function
  • Easy Quick Installation, Convenient economical Maintain.

Parameter

 Video channels  4 channels (2 built cameras,support 2 external input,2 output)
 Video Compression  H.264 Compression Mode
 Network  3G/4G module & WIFI optional
 Position  Support Built GPS/BD Module
 G-Sensor  Support G-sensor
 system  Linux
 Voltage  6~36V
 Storage  Two SD Card ( Each SD support 128GB max.)
 USB  Build-in Mini USB
 TTS Voice Broadcast  support
 Video Output  1 channels
 Alarm output  1 ch( One RS232 port and One RS485 port)

Product description

Integrated microphone (inside car audio record)
Integrated speaker (audio broadcast and early waning)
Host device carry 6 status indication light (survey equipment work status )
Host device integrated one alarm button,one on-off button and one WIFI toggle button(AP and station mode by hand)
Built-in Bluetooth module(support wireless alarming and capture by wireless Bluetooth button,and achieved headset intercom and telephone function)
Built-ed WIFI(achieved automatic uploading and smart phone connection function.the AP function achieved  5 external device share internet)
Built-ed GPS Module and antenna (achieved management of car speed and route)
Support alarming function for the departure of the routes and entrance and the exit of an area.equipment support 16 route and area.
Integrated 3G/4G Module(achieve remote audio and video transmission and management)
Built-ed G-Sensor Module (achieved automatic alarming upload about abnormal vibration,overturning ,impact and emergency brake)
Built-in one video output(achieved video preview and rear preview function via connection of the monitor)
Built-in super-capacitor (work time about 8 to 11 seconds under the condition of abnormal outage for the core data without loss and the hard disk without damage)
Support two SD Card (each SD support 128GB max)

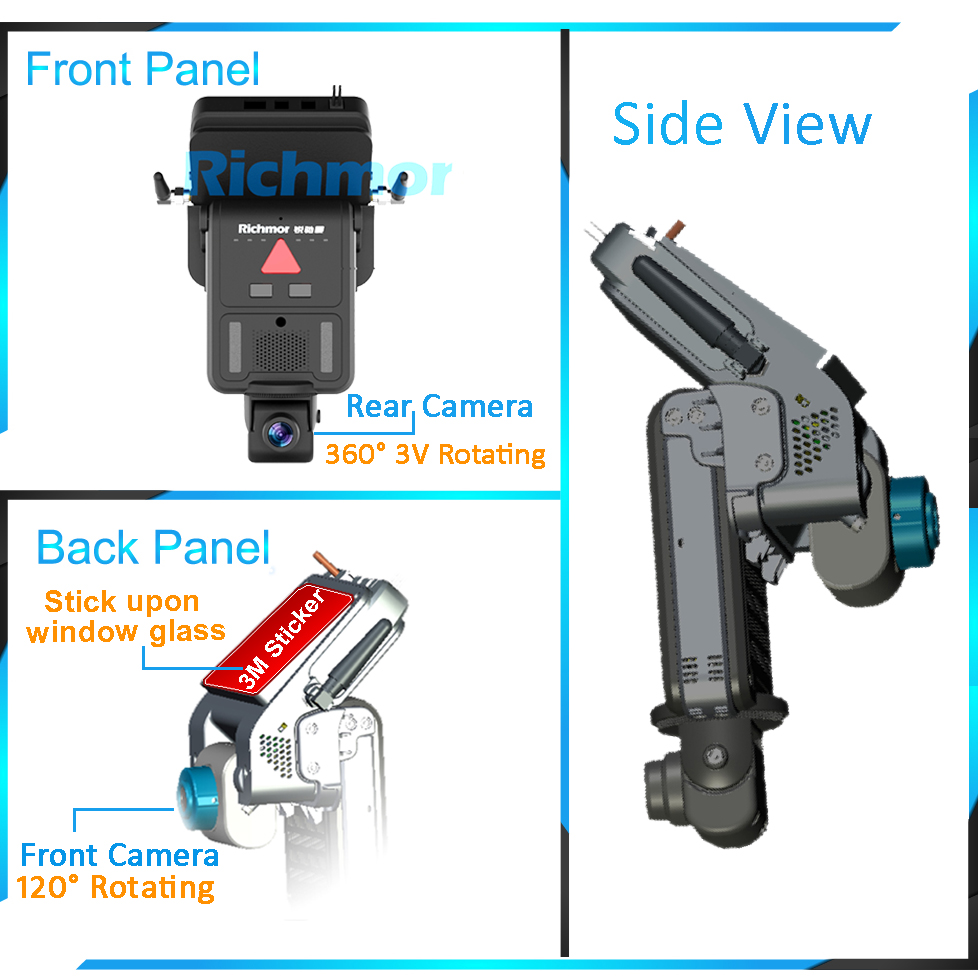

Detail pictures

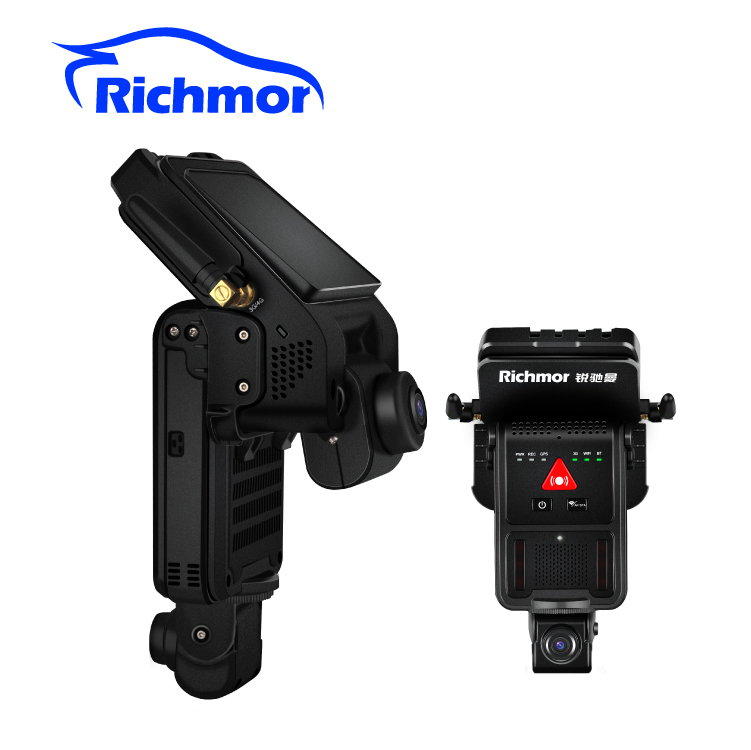

Modular Split Mini Camera DVR ------BK6












Package content
1 Piece mobile DVR, per box with all standard accessories

RCM-MDR210 Parameter Sheet


Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/mixed video input,

aviation connector, 1.0Vp-p, 75Ω

Video Output

1CH CVBS+1CH VGA output, 1.0Vp-p,

75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P

Video Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH ,Aviation Plug

Audio Output

1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

4Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Communication interface

1CH RS232 or 1CH RS485 for optional

Position

Support Built GPS/BD Module, built in G-sensor,

can replay and analyse vehicle driven route.

wireless transmission

Support Built-in 3G/4G wireless transmission function,

WCDMA, CDMA2000, TDD-LTE, FDD-LTE....



Motion Detection

Support motion detection alarm.

(Can set the video recording duration time after alarm on platform.)

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card remote updating

File Format

H.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+8V ~ +36V

Power Consumption

Normal Working <14W , Stand-by status < 0.5W

Temperature

-20℃ to +70℃

Working Environment

Humidity

20% to 80%

Password

User/Admin 2 Level Different Password

Security

Size

112(W) x36(H) x138(D)  mm

others

Net Weight

360g

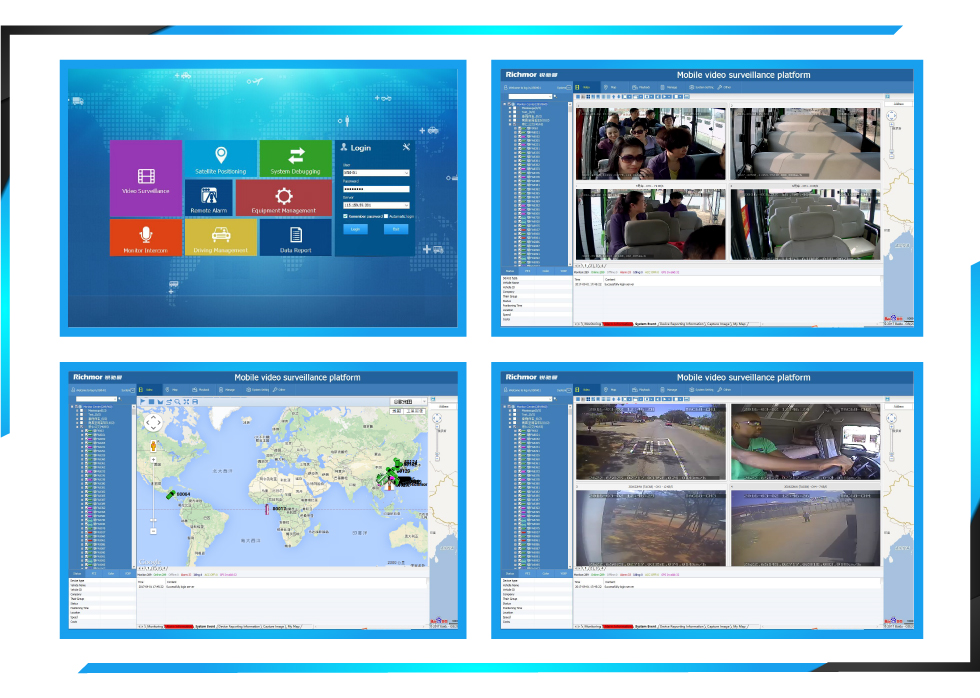

Richmor surveillance GUI




Richmor Mobile DVR Mileage Summary





Player software interface

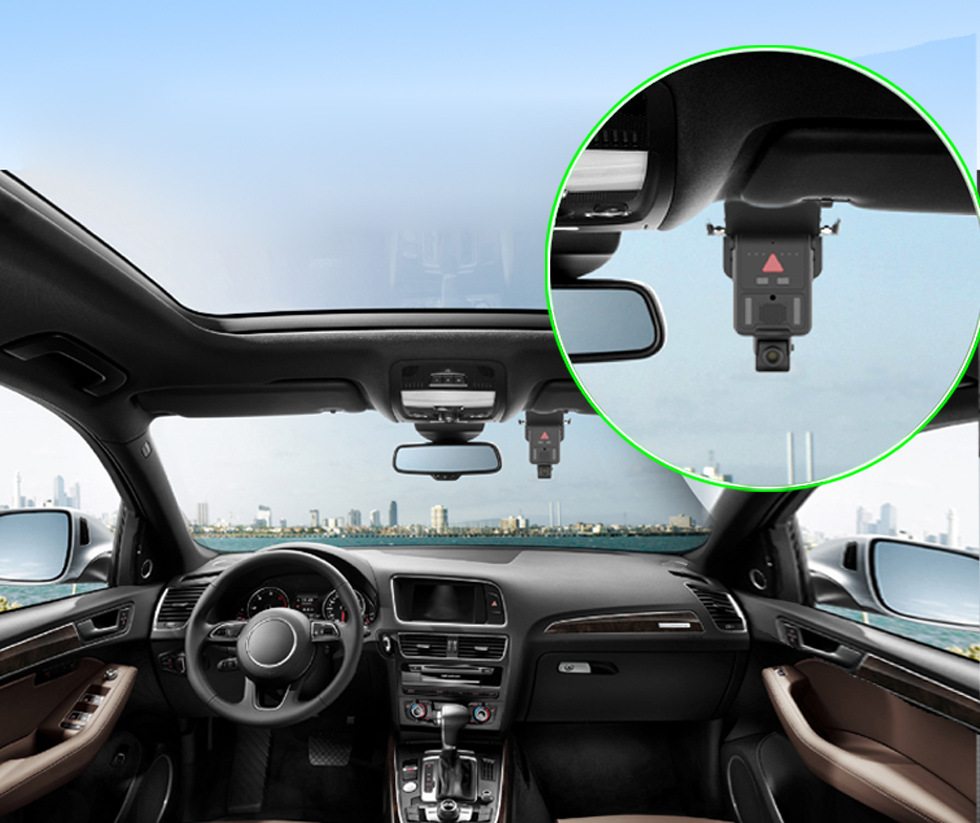

Richmor actual case





Application

 Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
