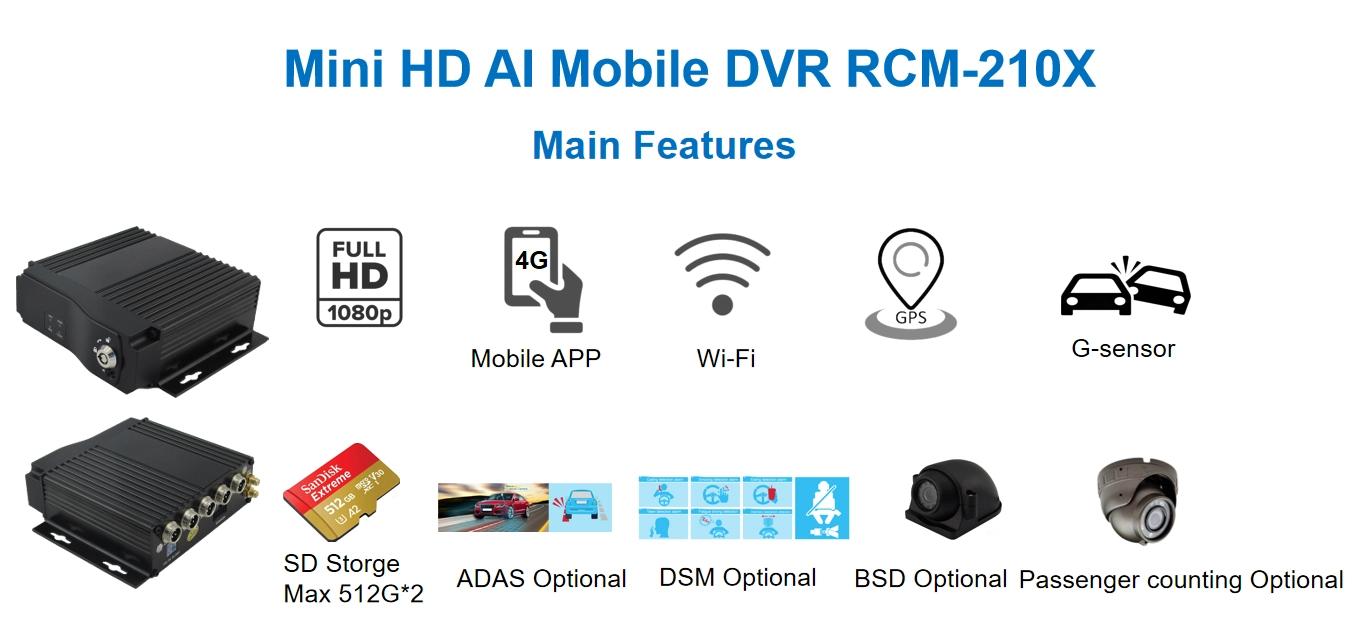

Richmor 4CH 1080P SD AI Mobile DVR Solution

• 1.H.265/H.264 compression mode, multi-stream recording. Supports up to 4 channels of 1080P HD video input (maximum 30 frames per channel), with HD recording options of 1080P/720P/D1 available, adjustable frame rate and quality;
• 2.1 channel CVBS video output, optional VGA output;
• 3.Supports 4 audio inputs and 1 audio output;
• 4.The host supports external microphones and speakers as options;
• 5.Professionally designed for vehicle use, with 8-36V DC wide voltage input; various protective circuits against overload, undervoltage, short circuit, and reverse connection, suitable for various vehicles;
• 6.Provides DC12V power output to supply stable voltage power to multiple peripheral devices such as cameras and small screens;
• 7.SD card data recording (supports up to 2 large capacity SD cards), resistant to vibrations, dust, and other environmental interferences that can cause data damage, making the product adaptable to harsh road conditions that most products cannot handle.
• 8.The watchdog abnormal restart function protects and better safeguards the machine and recordings;
• 9.A professional and efficient in-vehicle file system that addresses file fragmentation caused by repeated erasing, solves issues of memory file system crashes, data loss, inability to locate memory, and file corruption, ensuring data stability and integrity；
• 10.Ignition-off delayed recording function (time can be set for up to 24 hours);
• 11.Various recording methods including automatic recording, manual recording, and alarm recording to meet different scenario needs;
• 12.Displays records of vehicle driving status, license plate, route, speeding, and other vehicle information for easy management;
• 13.Built-in G-SENSOR module that can detect abnormal vibrations, rollovers, and collisions; supports automatic alarm uploads for rapid acceleration, rapid deceleration, and sharp turns;
• 14.Supports BD/GPS/GLONASS/Galileo positioning systems, enabling global positioning; when paired with high-precision positioning modules like RTK and RCA, it achieves high-accuracy positioning.
• 15.Integrated 4G/3G module (optional); optional modules for different national frequency bands to achieve global network transmission; remote support for audio and video monitoring, two-way intercom, remote PTZ control, manual alarm, overspeed alarm, boundary crossing and line deviation alarms;

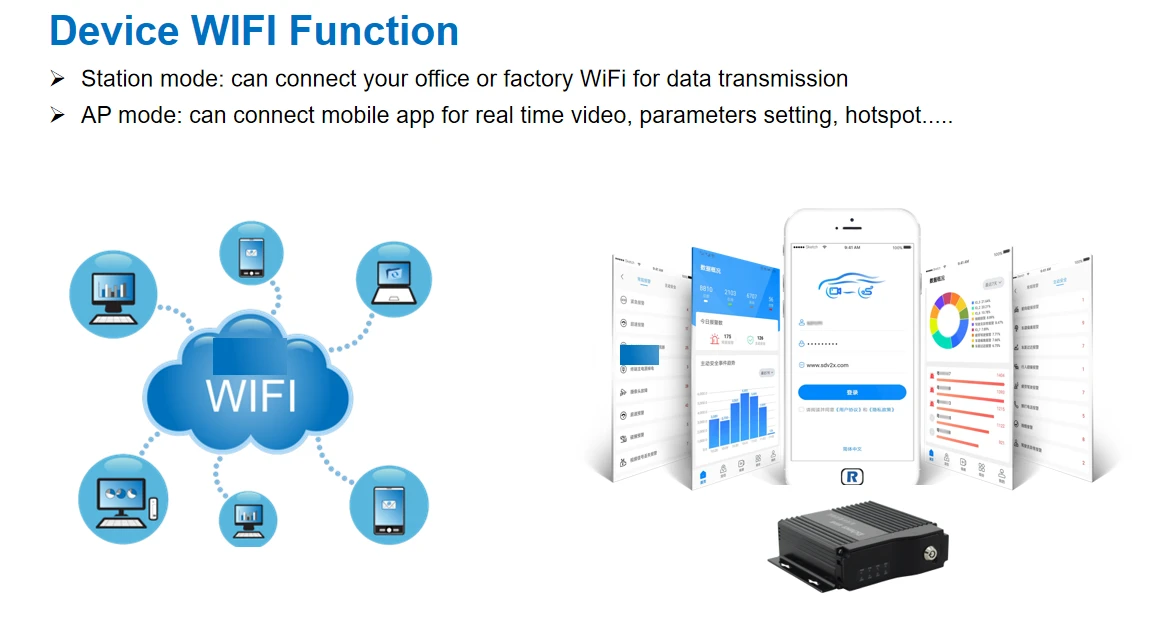

• 16.Optional WIFI module; supports AP/STATION modes. In STATION mode, it supports automatic data backup; in AP mode, it can be used for debugging and maintenance via an operation and maintenance APP.
• 17.Supports remote monitoring via mobile phone, and phone intercom functionality; supports SMS configuration parameters and obtaining device information;

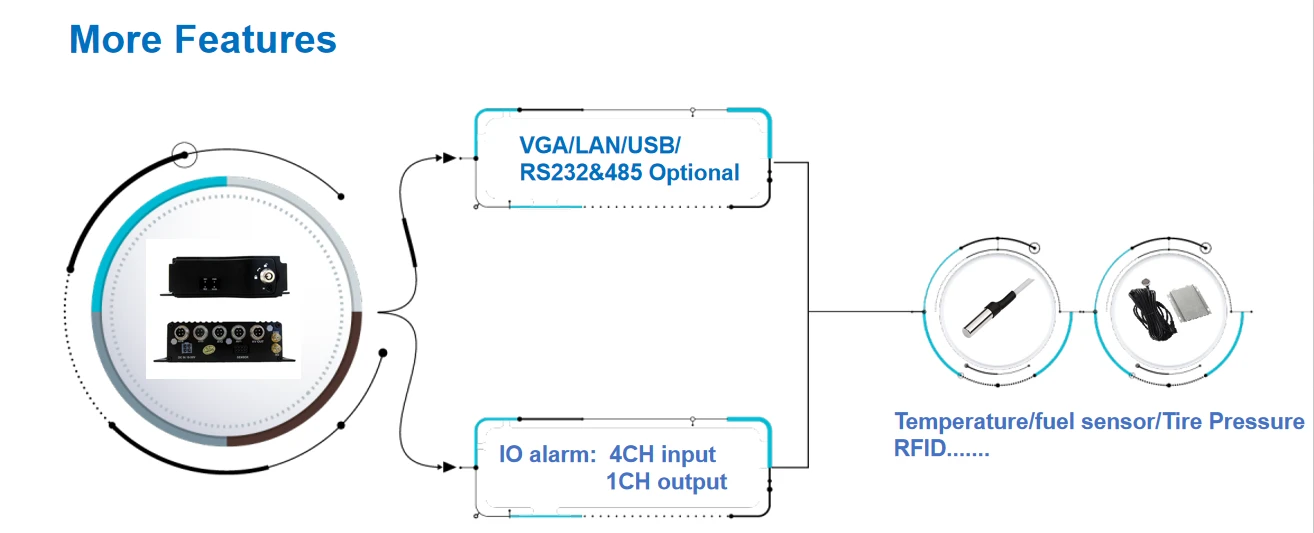

• 18.4 alarm input channels (can expand 2 additional alarm inputs), 1 alarm output, supports linkage with sound and light alarms, and power outage/fuel cut-off alert;
• 19.Supports local automatic photo capture for alarm input, capable of saving at least 2000 images;
• 20.Supports Ministry of Transportation standard protocols, as well as local standard protocols; expandable to include PTZ control, fuel level sensors, LED advertising screens, etc.;
• 21.Optional 1 channel network port input, connecting to wired network or external IPC camera.
• 22.Optional 1-ch USB input for easy external maintenance of the I-Weibao or connection to a U disk.
• 23.Optional 1-ch RS232 or 1-ch RS485 interface.
• 24.The whole machine is designed for high reliability, capable of continuous monitoring in environments ranging from -30°C to 70°C.
• 25.Software upgrades can be conducted via SD card/OTA remote automatic upgrade, using partition backup technology to avoid system crashes.

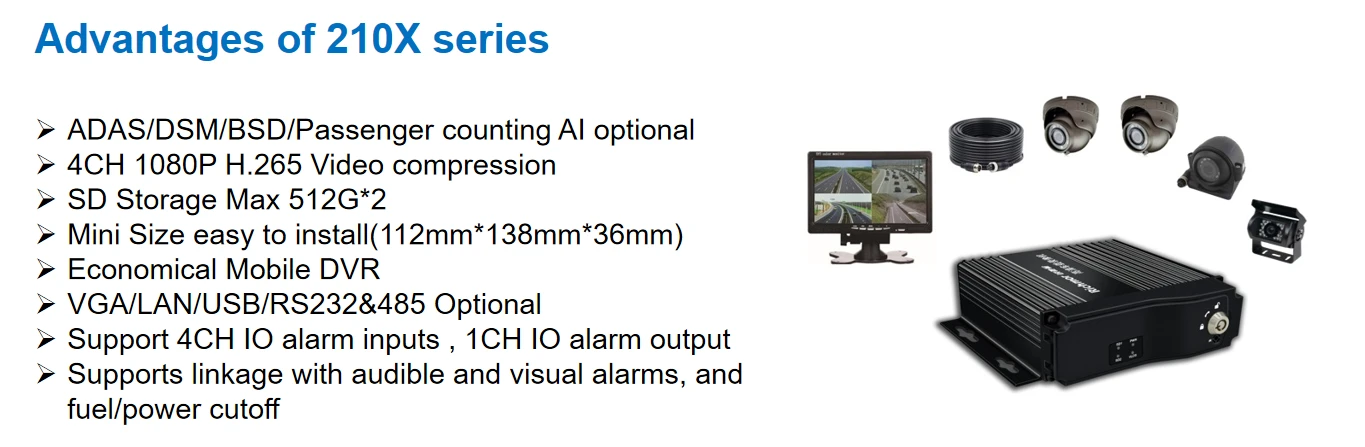

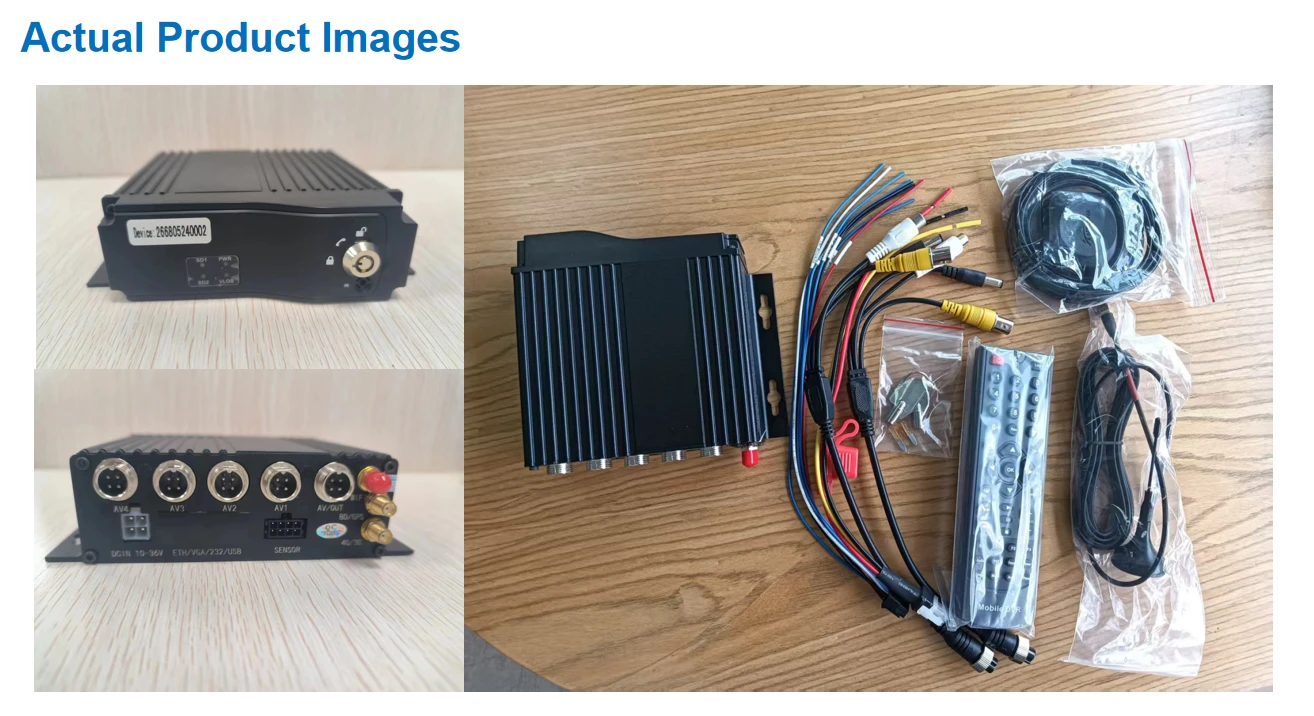

• 26.Made of ABS and aluminum alloy, it features a sturdy structure with good heat dissipation. Dimensions are 112(W) x 36(H) x 138(D) mm.
• 27.Supports multiple languages including Chinese (Simplified and Traditional), English, Russian, etc., with the ability for bulk functional customization according to customer requirements.

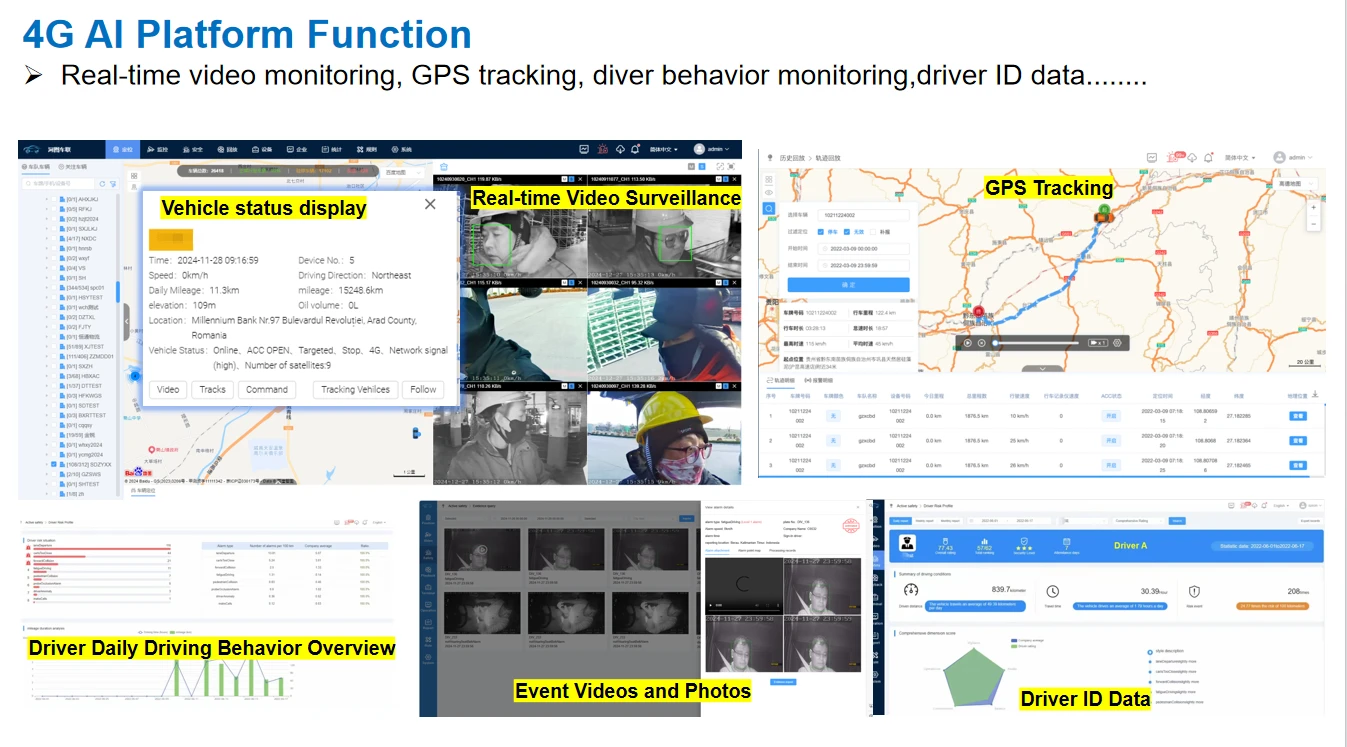

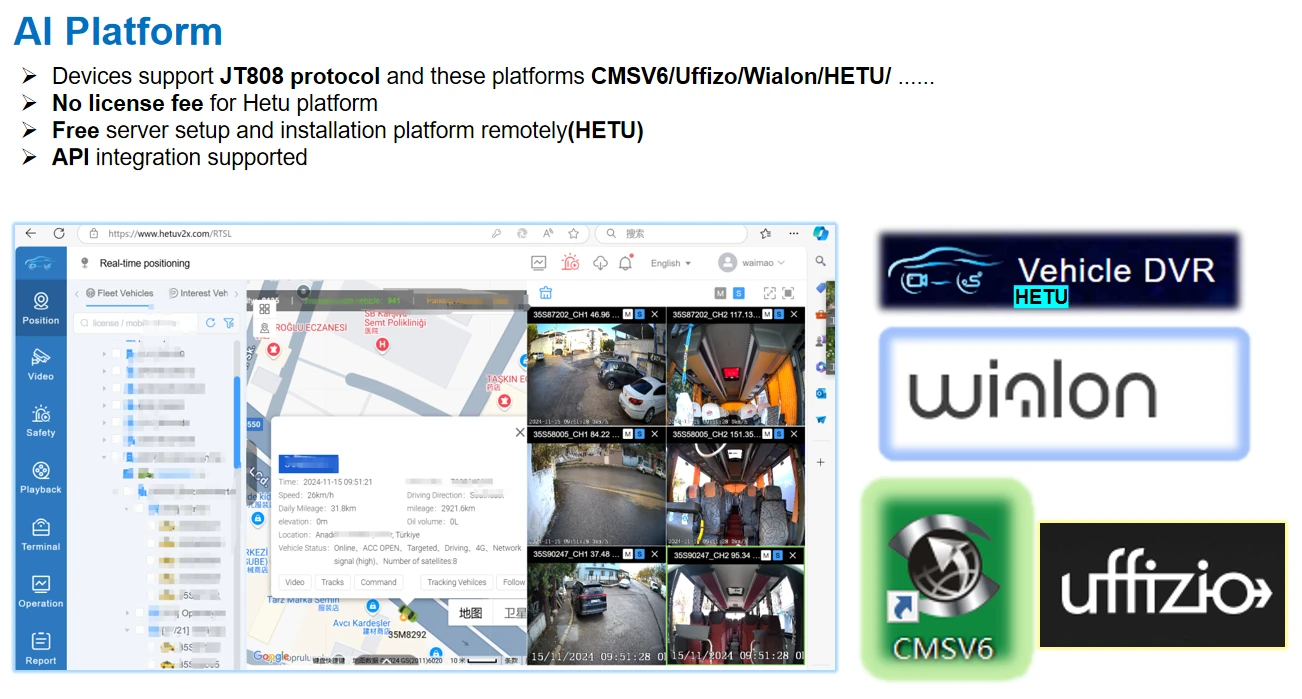

• 28.With the HETU vehicle network platform, remote parameter setting and AI calibration can be achieved through mobile phones and computers; it provides a wealth of convenient management tools for project installation and operation, significantly enhancing the experience and efficiency of use and maintenance.
