Easy installation 4CH AI ADAS Dashcam for Lane Departure Warning Forward Collision Warning 4G mobile mdvr recorder support wifi gps g-sensor fuel sensor optional
- Built-in GPS/BD modules to achieve speed, position, time and route management
- Support line departure and area entry and exit alarm, device max can save 16 lines and areas
- Support driving line departure and area in and out alarms, the device can save up to 16 lines and areas
- Integrated 3 / 4G communication module for remote monitoring and management
- Built-in G-SENSOR module can realize automatic alarm upload of abnormal vibration, rollover, impact, and sudden brake
- 1CH AV Output
- Support dual TF cards (max 256G each)
- 5CH alarm input, 1CH of alarm output, support photo capturing manually
- 1CH USB , 2CH RS232 and 1CH RS485
- Support PTZ control, fuel sensor, LED advertising screen, etc . Support TTS alert function, English
- Delay shutdown function, delay time can be set; can achieve ultra-low power sleep, GPS position can
- continue to report in sleep state; keep location updated
- Richmor vehicle professional RMVS software can realize remote monitoring and management functions of
- computers and mobile phones
- Supports low temperature startup and work. The machine has a highly reliable heat dissipation design, and the working temperature can reach: -40℃ to 70℃

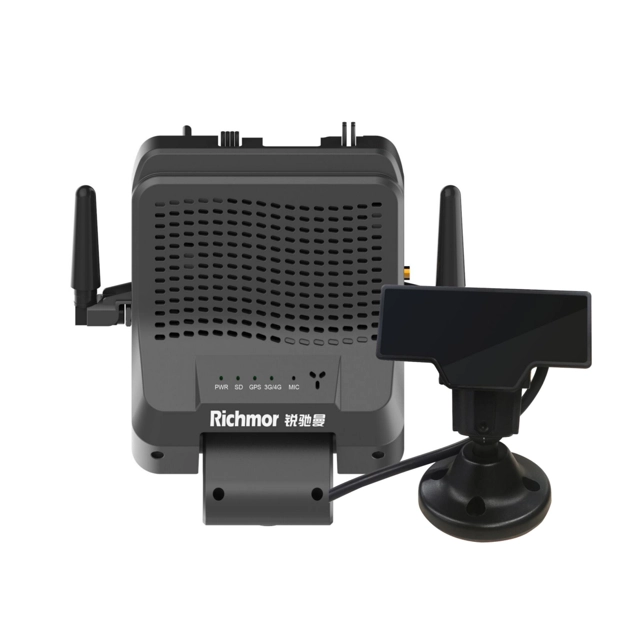

Richmor All-In-One DSM ADAS AI Vehicle DVR
Product Description
Main Features
1) DSM+ADAS AI function.
2) H.265 compression, save storage and 3G/4G data traffic cost.
3) Easy installation, 1/5 of normal time.
4) Integrated speaker, sound pick up, faced forward camera.
5) Support Portuguese, Spanish and English. Other language customization.

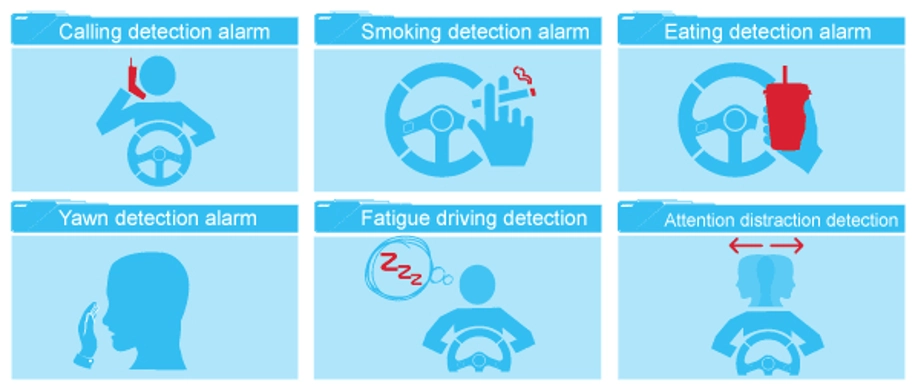

DSM function
DSM stands for driver status monitoring. Detection including smoking, calling, distraction, fatigue, leaving seat, etc.

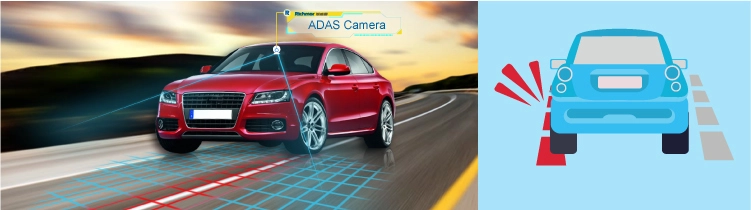

ADAS function
ADAS stands for advanced driving assistance system. It detects potential collision or danger through front view and gives pre-warning to driver. Detection includes forward collision warning(FCW), lane departure warning(LDW), headway monitoring warning(HMW).
Management Platform
Using CMSV6 and Richmor platform for fleet management.
Support Android app, PC client, IOS client to remotely view.
Support API/SDK integration.

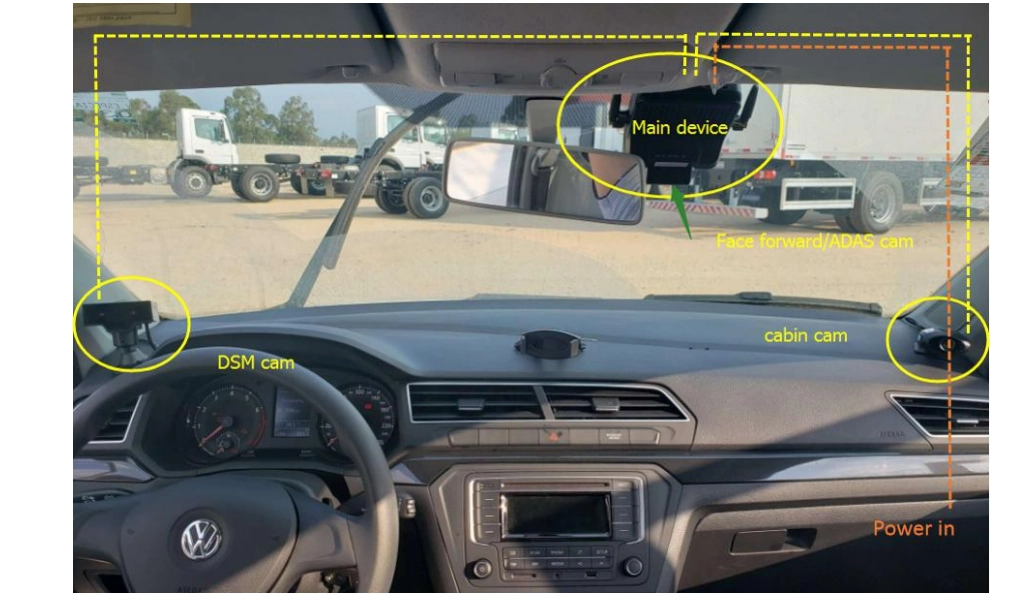

Easy Installation
Simple wire bunch, use 3M glue to be pasted to windshield.
Easy installation only take 1/5 of normal time. Save time and labor cost.
Specification
|
item
|
value
|
|
Model Number
|
RCM-BK6I-001
|
|
Product name
|
Mini AI MDVR
|
|
Video compression
|
H,265 and H.264
|
|
Video input
|
4 Channels
|
|
Resolution
|
4*1080p/720p
|
|
Video Output
|
1*BNC
|
|
Audio input
|
2 channels
|
|
Audio output
|
1 channel
|
|
Alarm input
|
5 channels
|
|
Alarm output
|
1 channel
|
|
Storage
|
2 TF card (128GB each card)
|
|
Conmmunication way
|
GPS/3G/4G/WIFI (optional)
|
|
AI function
|
DSM; face recognition
|
|
Language
|
Chinese/English/Customization
|
|
Warrenty
|
12 month
|

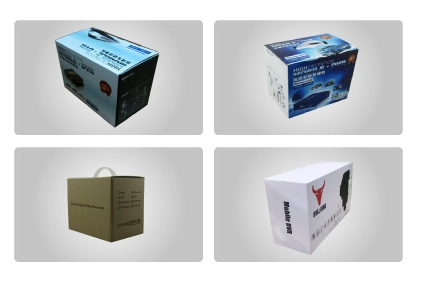

Packing & Delivery
The packing can be the normal industry Packing or customized service.
Company Profile
Shenzhen Richmor Technology Development Co., Ltd. is a TOP high-tech enterprise/ manufacturer specialized in digital and intelligent mobile video surveillance products, with rich experiences of developing, producing and selling for 14 years. Products cover 3G 4G SD card/HDD mobile DVRs, ADAS DSM BSD AI mobile DVRs/Dashcams, MINI DVRs, HD vehicle cameras etc. As a professional manufacturer, we devote ourselves to providing customers most advanced technologies and products with highest quality.
FAQ
1. What is the cost for software?
Richmor provides free platform and free software for you to build your own server. If you don't want to build your server, we can provide server service for you.
2. Should I set up server at my country or using your server?
Both, but we suggest set up server at your side which will be with perfect effective, Our well trained sales & engineers will reply you in time to work together with you.
3. OEM/ODM Service?
Yes, we can. Tell your idea to us, will work with our developers to design for you. There are already successful software and software customization cased in USA, Russia, Brasil, UK, etc.
4. Does your Platform and Device support API/SDK integration?
Yes, and we welcome!
5. What comes along with the package?
In addition to the the host device, power cable & key & remote control & necessary accesories are included for a complete solution, no need extra cost.
