4CH real-time 720P Mega Pixel AHD Vehicle Mobile DVR Recorder4CH real-time 720P Mega Pixel AHD Vehicle Mobile DVR Recorder

4CH real-time 720P Mega Pixel AHD Vehicle Mobile DVR Recorder

  • 1.3G GPS WIFI SD Vehicle mobile DVR;
  • 2.IOS/Andorid Phone Remote Monitor DVR (see google map,video,listening,speaking;
  • 3.10-36V Wide Voltage;
  • 4.Dual card, Each SD CARD Max 128GB Loop Recording MDVR;
  • 5.IO Configuration,muilt alarm function optional,such as door open,brake,SOS button ,Overspeed,fatigue driving etc;
  • 6.Muilt Working mode optional for easily fleet management;
  • 7.Motion Detection,Intercom,LED Panel Control etc

4CH real-time 720P Mega Pixel AHD Vehicle Mobile DVR Recorder




RCM-MDR210 Series



Advantage

  1. 6-48V Wide Voltage;
  2. Mobile Phone Remote monitor ( See Google Map/Video/Listening/Speaking);
  3. Motion Detection;Intercom;LED Panel Control etc;
  4. Muilt Alarm function optional,SOS button,Door Open alarm;Overspeed Alarm etc;
  5. Window pop up when alarm,start recording and sound reminding at center office;
  6. 10s pre-recording when alarm happens, delay time can be set;
  7. Remote device configuration

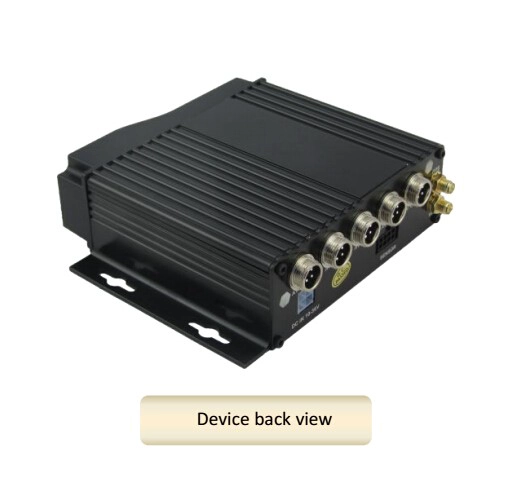

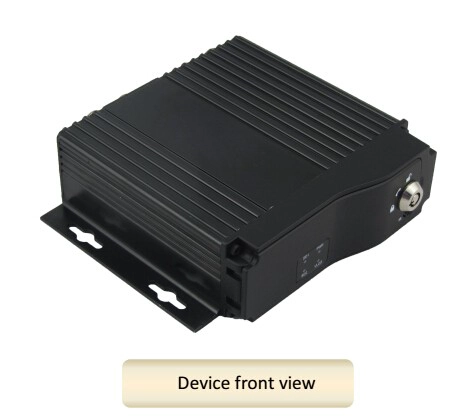

Picture Shoot

3G mini 4ch sd card car Mobile DVR


3G mini 4ch sd card car Mobile DVR






Product Description
3G mini 4ch sd card car Mobile DVR

Features:

1. H.264 Compression Mode, support 4CH real-time 720P Mega Pixel AHD input and Analog Standard Definition camera input;

2. Exclusive pre-allocate DVR Special File Systerm Technology, solving repeatedly wipe cause file fragmentation, solving SD Card file system collapse, data loss and cannot find SD CARD and file garbled, ensure the integrity of the data.

3. 10-36V Adaptive Wide Voltage input, Super low Power Consumption Design;

4. SD card storage ( 2SD cards, Each maximum support 128GB) It can be completely resist car Vibration. Dust and others cause data corruption;

5. Support GPS/BD/G-Sensor;  High Reliability Aviation Connectors.

6. High Cost Performance with reliable stability, simple and clear operation menu.



Data Sheet

3G mini 4ch sd card car Mobile DVR


Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/mixed video input,

aviation connector, 1.0Vp-p, 75Ω

Video Output

1CH CVBS+1CH VGA output, 1.0Vp-p,

75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P

Video Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH ,Aviation Plug

Audio Output

1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

4Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Communication interface

1CH RS232 or 1CH RS485 for optional

Position

Support Built GPS/BD Module, built in G-sensor,

can replay and analyse vehicle driven route.

wireless transmission

Support Built-in 3G/4G wireless transmission function,

WCDMA, CDMA2000, TDD-LTE, FDD-LTE....



Motion Detection

Support motion detection alarm.

(Can set the video recording duration time after alarm on platform.)

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card remote updating

File Format

H.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+8V ~ +36V

Power Consumption

Normal Working <14W , Stand-by status < 0.5W

Temperature

-20℃ to +70℃

Working Environment

Humidity

20% to 80%

Password

User/Admin 2 Level Different Password

Security

Size

112(W) x36(H) x138(D)  mm

others

Net Weight

360g





GSM GPS Vehicle Mobile DVR Recorder Powerful Software (PC & Mobile Phone )

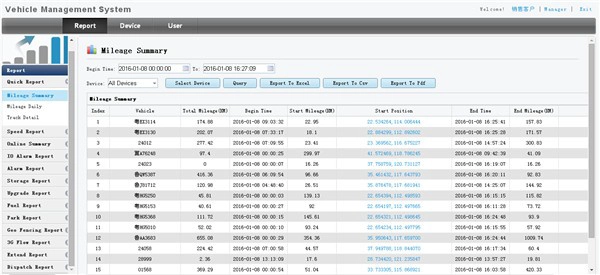

Mileage Summary

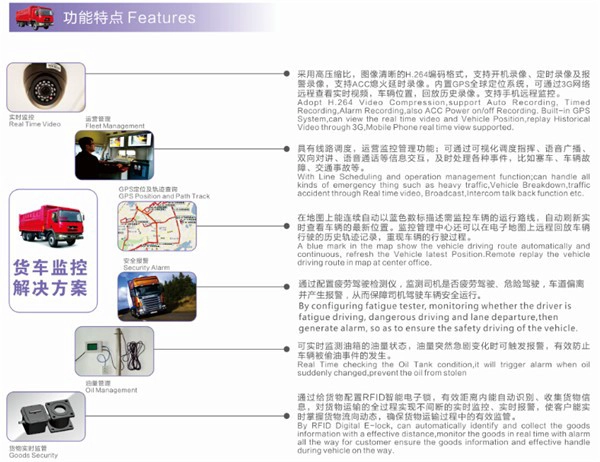

Richmor Truck Solution

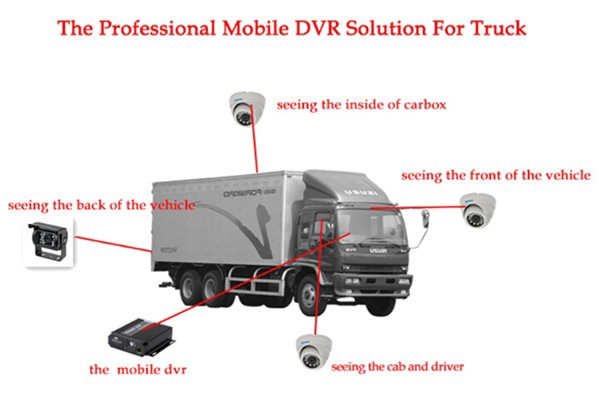

Vehicle Mobile DVR Recorder Project




Certification





Related Products For Vehicle Mobile DVR



Cooperation Terms

Shipping Info

Estimated Shipping Time
1.Sample order will be delivery in 3-5 working days
2.Quantity order can be discussed;

Remarks:
1.Order will be dispatched before next 2 working day after full payment is done,48 hours aging time;
2.Related documents will be sent after order is dispatched,please check mail;
3.All parcels will be shipped by DHL/TNT/UPS/EMS/FedEx/Air etc according your option;

Payment Info

1.T/T;Western Union;Paypal optional;
2.30% deposit,balance be paid before delivery

Remarks:
Please sent bank slip when payment done,according this we will arrange the production

Warranty Info

Free Replacement:
Mobile DVR Recorder can replace free under conditions within 15 days after sale,in the precondition of our quality problem,non-artificial damage

Supplier Warranty:
We offer ONE YEAR warranty on Vehicle Mobile DVR Recorder,if your item has any warranty issue please contact us for a satisfying solution

Remark:
All qualified ruturns/replacement must be guided by us,we may not accept your return without informing us in advance
