4CH HDD/ SD card AHD MDVR4CH HDD/ SD card AHD MDVR4CH HDD/ SD card AHD MDVR4CH HDD/ SD card AHD MDVR

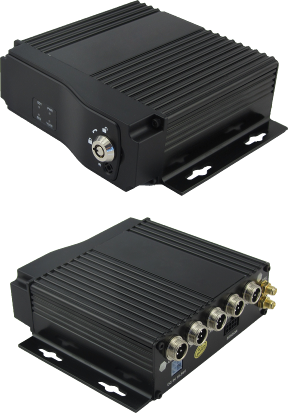

4CH HDD/ SD card AHD MDVR

  • ◆H.264 compession ,support 4 CH Video & 4CH Audio input and Playback;
  • ◆Support 4CH 960H & AHD 720P,CIF and HD1 about 25fps, 4CH D1-25fps; real time recording :100fp;
  • ◆Support APP (IOS/Android) remote monitoring
  • ◆Support 4CH 960H and AHD720P Cameras
  • ◆Support Two High Speed USB 2.0 Port; Front One For exporting the Data; Back One For recording the accident events through Image Mirror Recording
  • ◆6CH Digital Alarm Input; 2CH Digital Alarm Output
  • ◆Support 4G, 3G,WIFI, GPS, G-Sensor, Gyro-Sensor module expansion;
  • ◆Support 3G remote fule cut-off and power-off; support local and remote PTZ control;
  • ◆Support 1CH RS485 Port; 1CH RS232 Port.
  • ◆Aluminium materials,heat-proof ,ESD protection, damp-proof & dustproof
  • ◆Support 2T HDD and 128GB SD card can set to mirror record or error record
  • ◆Super wide voltage: DC:+6V ~ 36V; Output voltage:+12V@2A;+5V@0.5A
  • ◆Low Power consumption: normal working stage<10W, standby mode<0.5W
  • ◆ Built-in HDD Heating Technology; Work Temperature:-30℃ ~ +75℃
  • ◆ 187(W)x62(H)x200(D) mm Net Weight:1.9 KG



720P AHD SD Card Mobile DVR-MDR210 Series































Easily Smart GUI Interface, saving time in device setting.



Main Features



H.264 Video Compression,Support 4CH 720P AHD Camera input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input ;

VGA output for optional;

Exclusive pre-allocated file system, solve the file fragmentation / SD lost / file garbled etc issue,protect data file;

8-36V Wide Voltage, Lower power consumption;

SD Card Storage ( Dual SD Card, each max 128GB ),

Support 4CH alarm input, 1CH independent alarm output;

Optional single RS232 serial port or single RS485 extension

Support GPS/BD/G-sensor module extension

Realize realtime monitor through 3G/4G;

Support WIFI module, can download data automatically

Support SMS romote configure/ control device;

Support Broadcast/Intercom/Text sent etc;can add oil sensor/temperature sensor/POS/LED Advertisement Panel;

High vibration Aviation plug




Product Features

◆ H.264 Video Compression,multiple steam recording, Support 4CH 720P million pixels HD video recording.support 4CH 720P million pixels AHD input/ 4CH analog SD camera input/ 2CH HD + 2CH SD mixed input ;

◆ VGA output for optiona ;

◆ High quality real time recording, 720P/CIF/HD1/D1 Optional, quality adjustable;

◆ Professional Car Power Design,8-36V wide voltage,Provide reverse voltage/overload/short circuit protection, to meet kinds of car application;

◆ Support 12VDC/2.5Amp output voltage,power supply for Camera/Screen etc;
◆ Dual SD Card Support, each max 128GB,,protect DVR from shock & Dust damage;
◆ Watchdog abnormal restart function,protect SD Card and Record;

◆ Exclusive File System protect data completeness,prevent SD Card fragment;

◆ ACC Delay off,can set 24 hours;

◆ Auto Record/Manual Record/Alarm Record etc working mode to meet different requirements;
◆ Show  Car status/Plate/Driving Route/Low Speed/Over Speed information for convenient management;
◆ Support GPS/BD G-sensor Optional;

◆ Optional single RS232 serial port or single RS485 extension

◆ 4CH Alarm input(Door Open,Light,Turn direction,brake,reverse etc),can linkage kinds of alarm;

◆ 1CH Alarm Output;

◆ Support picture snap when alarm;
◆ Easily Smart GUI Interface, saving time in device setting;

◆ Can upgrade the software via SD card.
◆ Stability Aviation plug, easily connecting and high shock proof;

◆ Be Customized according your request;








Parameter Sheet

Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/mixed video input,aviation connector, 1.0Vp-p, 75Ω

Video Output

1CH CVBS+1CH VGA output, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P

Video Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4CH ,Aviation Plug

Audio Output

1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

4Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Communication interface

1CH RS232 or 1CH RS485 for optional

Position

Support Built GPS/BD Module, built in G-sensor, can repaly and analyse vehicle driven route.

wireless transmission

Suppport Built-in 3G/4G wireless transmission function, WCDMA, CDMA2000, TDD-LTE, FDD-LTE....



Motion Detection

Support motion detection alarm. (Can set the video recording duration time after alarm on platform.)

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card remote updating

File Format

.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+8V ~ +36V

Voltage Output

+12V@2.5A,+5V@2.5A

Power Consumption

Normal Working <14W , Stand-by status < 0.5W

Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

Security

Password

User/Admin 2 Level Different Password

others

Size

112(W) x36(H) x138(D)  mm

Net Weight

360g
