4CH 3G GPS wireless Economical SD Card Mobile DVR

4CH 3G GPS wireless Economical SD Card Mobile DVR

  • SD card h264 CCTV Mobile DVR for vehicle car bus fleet etc with 3g 4g GPS,WIFI G-sensor
  • Quick Details
  • Place of Origin: ShenZhen, China (Mainland)
  • Brand Name: Richmor/OEM
  • Product Name: Richmor-mdvr 210 series
  • Professional Power Design for Vehicle: 10~36V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
  • Function: Support 3G,4G, GPS,wifi,alarm etc.
  • Special Delay Power off circuit: support systerm continus running after vehicle power off.
  • Resolution: 720p/D1/HD1/CIF selectable.
  • System Protection: Saving the recording data when the power off, support HDD upgrading PTZ control: RS232 can turn to PTZ interface monitoring device: PC/Mobile phone
  • signal format: PAL/NTSC
  • record storage: Duall 128GB SD card


4ch SD card h264 CCTV Mobile DVR for all kinds of vehicles



(RCM-MDR210 Series)



Product features

4ch 720P 3G 4G Mobile DVR

1. H.264 Compression Mode, support 4CH real-time 720P Mega Pixel AHD input and Analog Standard Definition camera input;

2. Exclusive pre-allocate DVR Special File Systerm Technology, solving repeatedly wipe cause file fragmentation, solving SD Card file system collapse, data loss and cannot find SD CARD and file garbled, ensure the integrity of the data.

3. 10-36V Adaptive Wide Voltage input, Super low Power Consumption Design;

4. SD card storage ( 2SD cards, Each maximum support 128GB) It can be completely resist car Vibration. Dust and others cause data corruption;

5. Support GPS/BD/G-Sensor;  High Reliability Aviation Connectors.

6. High Cost Performance with reliable stability, simple and clear operation menu.




RCM-MDR 210 Series

Model NO.

Function

RCM-MDR210XXXI

Basic Recording,G-Sensor, Single SD card slot

RCM-MDR210XGXX

GPS, G-Sensor, Single SD card slot

RCM-MDR210WGSX

3G, GPS, G-Sensor, Dual SD card slot

RCM-MDR210FGSX

3G, 4G, GPS, G-Sensor, Dual SD card slot

RCM-MDR210WGDX

3G, WIFI, GPS, G-Sensor, Dual SD card slot

RCM-MDR210FGDX

3G, 4G, WIFI, GPS, G-Sensor,Dual SD card slot




Detail pictures

4ch 720P 3G 4G Mobile DVR



4ch 720P 3G 4G Mobile DVR




4ch 720P 3G 4G Mobile DVR



4ch 720P 3G 4G Mobile DVR






RCM-MDR210 Parameter Sheet


Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input/SD input/mixed video input,

aviation connector, 1.0Vp-p, 75Ω

Video Output

1CH CVBS+1CH VGA output, 1.0Vp-p,

75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.

Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels 720P

Video Quality

0-7 levels, 0 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and

manual recording are supported.

Audio

Audio Input

4CH ,Aviation Plug

Audio Output

1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

4Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Communication interface

1CH RS232 or 1CH RS485 for optional

Position

Support Built GPS/BD Module, built in G-sensor,

can replay and analyse vehicle driven route.

wireless transmission

Support Built-in 3G/4G wireless transmission function,

WCDMA, CDMA2000, TDD-LTE, FDD-LTE....



Motion Detection

Support motion detection alarm.

(Can set the video recording duration time after alarm on platform.)

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card remote updating

File Format

H.264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+8V ~ +36V

Power Consumption

Normal Working <14W , Stand-by status < 0.5W

Temperature

-20℃ to +70℃

Working Environment

Humidity

20% to 80%

Password

User/Admin 2 Level Different Password

Security

Size

112(W) x36(H) x138(D)  mm

others

Net Weight

360g

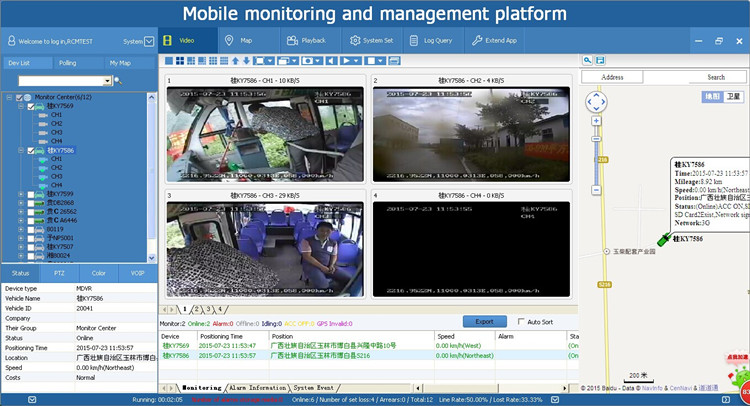

Richmor surveillance GUI






Online software interface

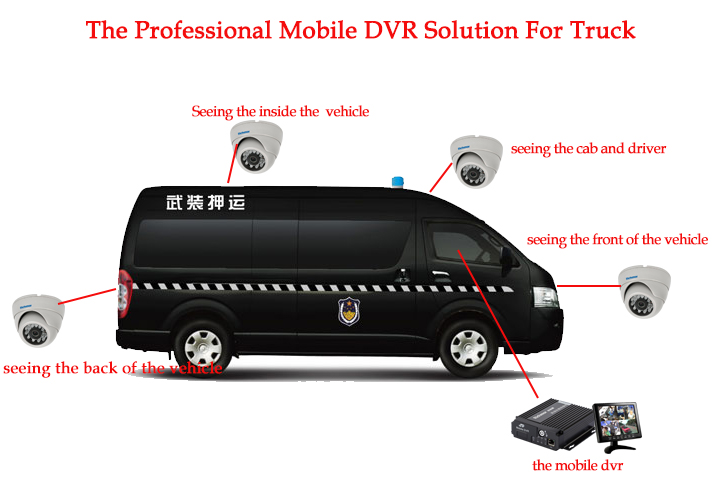

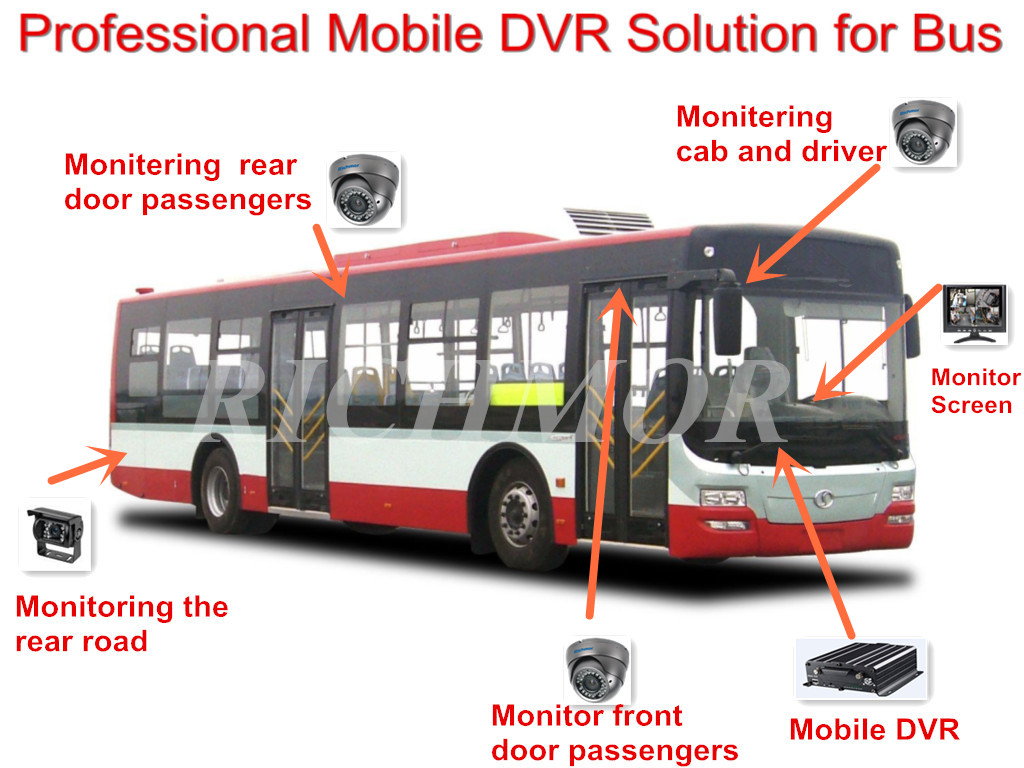

 Romote Viewing Surveillance 3G 4G Mobile DVR School bus solution

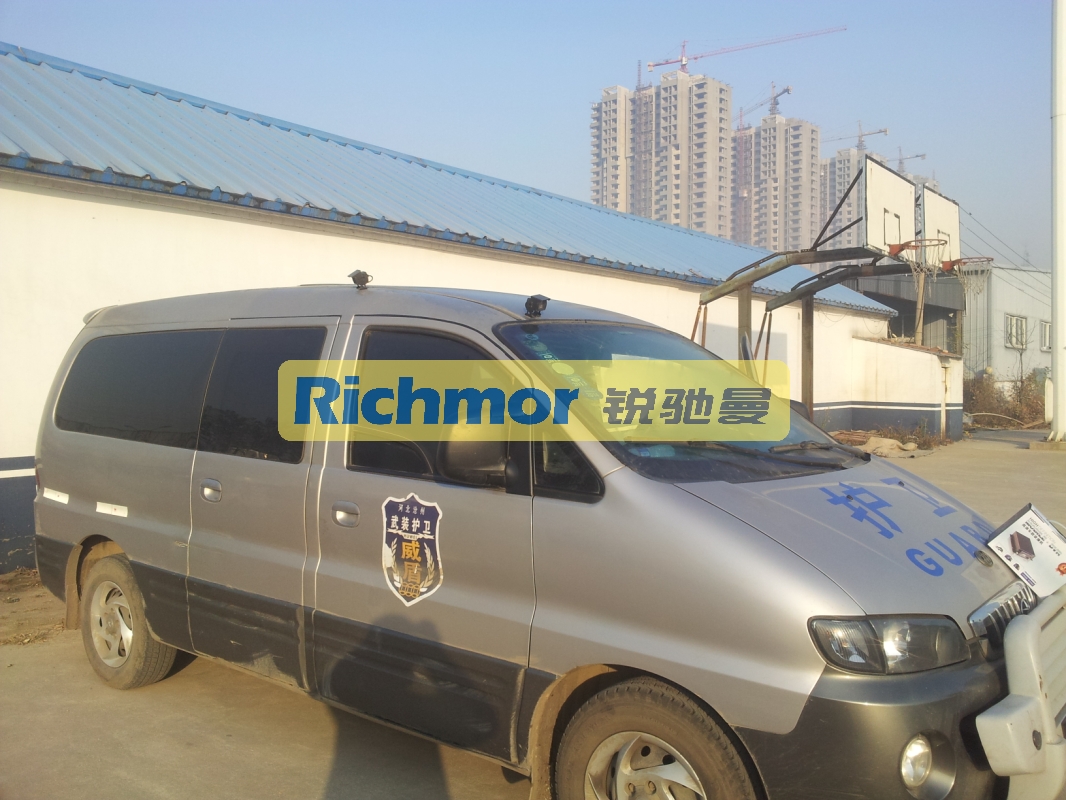

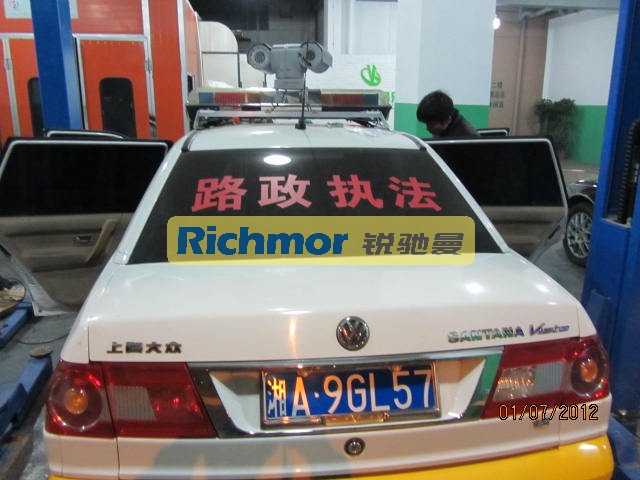

Application

 Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
