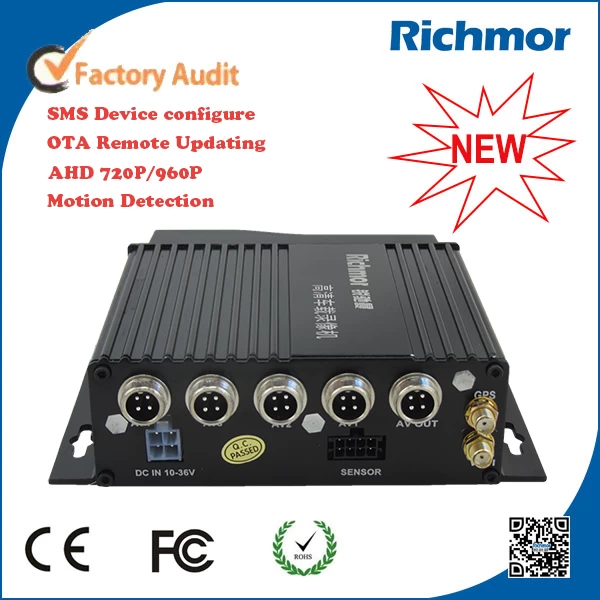

4 AHD Channels MDVR With GPS WIFI 3g/4g 720P/960P dual 128GB 256GB SD card mobile DVR
- Factory Directly Sale,Competitive Price
- 3G GPS For optional
- 1-4 Channel,can connect 1-4 cameras
- High Definition D1, H.264
- CE FCC RoHS Approval
- RICHMOR PRODUCTS' Advantages :
- 1. Power failure protection.
- 2. Wide voltage (10-36V).
- 3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you, ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
- 4. A SMS can get DVR situation feedback from DVR.(ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
- 5. Industrial level design. (More professional and better quality.)
- 6. Modular design. (To prevent a module error while affecting the entire product.)
- 7. Encrypt video format. (To prevent data loss)
- 8. Current and voltage over protection.
- 9. Wide working temperature. (-25℃- +75℃).
- 10. Data redundancy technology. (To prevent data loss)
- 11. Excellent vibration protection.
RICHMOR 128GB+128GB SD CARD MOBILE DVR WITH 3G/4G/WIFI GPS G-SENSOR
| Model No. | FUNCTION |
| RCM-MDR210XXXI |
Basic Recording G-Sensor Single SD card slot |
| RCM-MDR210WGXX | 3G GPS G-SENSOR Single SD card slot |
| RCM-MDR210FGXX | 4G GPS G-SENSOR Single SD card slot |
| RCM-MDR210WGWX | 3G GPS G-SENSOR WIFI Single SD card slot |
| RCM-MDR210WGDX | 3G GPS G-SENSOR WIFI Double SD card slots |
| RCM-MDR210FGWX | 4G GPS G-SENSOR WIFI Single SD card slot |
| RCM-MDR210FGDX | 4G GPS G-SENSOR WIFI Double SD card slots |
RCM-MDR210 Parameter Sheet
|
Item |
Parameter |
|
|
OS |
Linux |
|
|
Language |
Chinese/English/Customized |
|
|
Video Compression |
H.264 |
|
|
OSD |
Overlays information such as date time and vehicle ID |
|
|
GUI |
Graphical User Interface |
Setup system parameters with the remote control. |
|
Video Record System |
Video Input |
4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω |
|
Video Output |
1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen |
|
|
Preview |
Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview |
|
|
Resolution |
720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1 |
|
|
Video Quality |
1-4 levels, 1 is the highest level. |
|
|
Video Standard |
PAL: 100f/s , CCIR625 line,50field; NTSC: 120f/s, CCIR525 line,60field; CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional; HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional; D1: 800Kbps ~ 3Mbps, 8 level video quality optional; 720P: 4Mbps-6Mbps, multi level video quality optional |
|
|
Record Mode |
The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported. |
|
|
Audio |
Audio Input |
4CH ,Aviation Plug |
|
Audio Output |
1CH,Aviation Plug |
|
|
Compression |
G.726 compression, 8KB/s speed |
|
|
Alarm Input |
3Ch Alarm Input, kinds of alarm linkage support |
|
|
Alarm Output |
1CH Alarm Output |
|
|
Position |
Support Built GPS/BD Module |
|
|
G-Sensor |
Support G-sensor |
|
|
Storage |
SD |
Dual SD Card,each max 128GB SD Card loop recording |
|
Upgrade |
Support SD Card updating |
|
|
File Format |
.H264 |
|
|
File System |
Special FAT32 File System |
|
|
Video Playback |
Video Search |
Search By Record Time/Record Type etc |
|
Playback |
Max support 4CH Replay /Stop/Fast/Slow at same time |
|
|
Support forward and backward play at the speed of: x 2,x4,x8,x16. |
||
|
Voltage & Power |
Power Management |
Wide Voltage.Support Timed/Delay off |
|
Voltage Input |
DC:+10V ~ +36V |
|
|
Voltage Output |
+12V~2.5A,+5V~2.5A |
|
|
Power Consumption |
Normal Working <5W |
|
|
Working Environment |
Temperature |
-20℃ to +70℃ |
|
Humidity |
20% to 80% |
|
|
Security |
Password |
User/Admin 2 Level Different Password |
|
others |
Size |
112(W) x36(H) x138(D) mm |
|
Net Weight |
360g |
|
Player software interface
Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.
Packaging
1 unit with all standard accessories such as AV Cables/IO Cable/Power Cable/Key etc
Neutral paper box or Color paper box with Logo Richmor printed,also welcome customized package.
Shipping
Strong cooperated with DHL/UPS Etc for fast and safety delivery.
a. 2-5 days after payment cleared for sample order.
b. 5-10 days after payment cleared depends on order quantity for bulk order.
