3g mdvr with sim card WCDMA 4ch mobile dvr with free cms server3g mdvr with sim card WCDMA 4ch mobile dvr with free cms server3g mdvr with sim card WCDMA 4ch mobile dvr with free cms server

3g mdvr with sim card WCDMA 4ch mobile dvr with free cms server

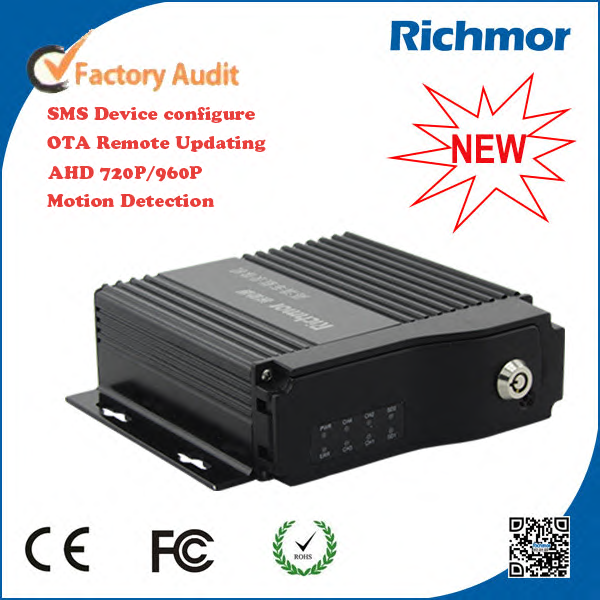

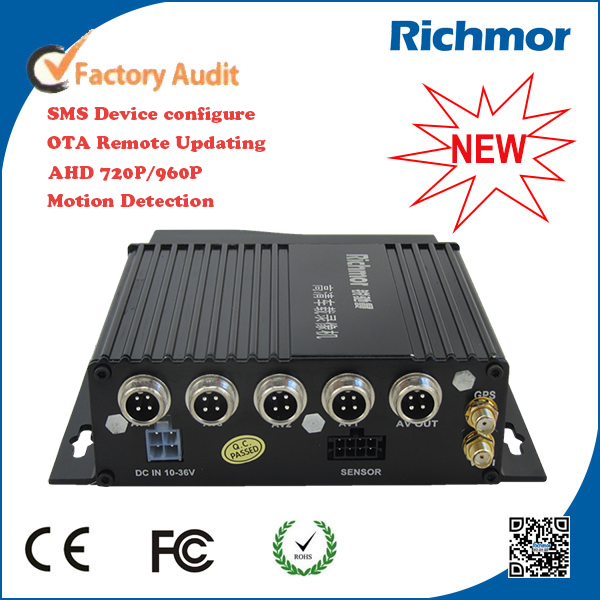

  • RICHMOR 4CH AHD Mobile DVR with 3G wifi GPS support 2*SD card storage
  • Quick Details
  •     Place of Origin: Guangdong, China (Mainland)
  •     Brand Name: Richmor
  •     Model Number: RCM-MDR210
  •     Product Name: RCM-MDR210
  •     Certification: CE, FCC, RoHS
  •     Compression: H.264 4channel
  •     Weight: 1KG
  •     Dimension: L233*W300*H45 mm
  •     TV system: PAL or NTSC
  •     Range of use: car, bus, truck, ship
  •     Display Quality: TV: D1 VGA: High definition
  •     Voltage: 8~36V
  •     Warranty: 12 months
  • Packaging & Delivery
  • Packaging Details: Neutral paper box or Color paper box with Logo printed. Mini DVR 4CH SD Card CCTV DVR With Basic Recording for School Bus
  • Delivery Detail: 2-5 days after payment for sample, 5-10 days for big order
RICHMOR PRODUCTS FEATURES
3g mdvr with sim card WCDMA 4ch mobile dvr with free cms server

1. Power failure protection.

2. Wide voltage.
3. OTA function support. (Upgrating DVR software automatically, better after-sales service for you, ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
4. A SMS can get DVR situation feedback from DVR.(ONLY WE CAN ACHIEVE IT IN CHINA FOR NOW.)
5. Industrial level design. (More professional and better quality.)
6. Modular design. (To prevent a module error while affecting the entire product.)
7. Encrypt video format. (To prevent data loss)
8. Current and voltage over protection.
9. Wide working temperature. (-25℃- +75℃).
10. Data redundancy technology. (To prevent data loss)
11. Excellent vibration protection.





RCM-MDR210 Parameter Sheet

Item

Parameter

OS

Linux

Language

Chinese/English/Customized

Video Compression

H.264

OSD

Overlays information such as date time and vehicle ID

GUI

Graphical User Interface

Setup system parameters with the remote control.

Video Record System

Video Input

4CH 720P AHD input,aviation connector, 1.0Vp-p, 75Ω

Video Output

1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen

Preview

Support 1 channel and 4 channels preview.,Support Manual/Alarm Trigger full screen preview

Resolution

720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1

Video Quality

1-4 levels, 1 is the highest level.

Video Standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1:  800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

Record Mode

The default setting is auto recording after power on. Timed recording, alarm trigger recording and manual recording are supported.

Audio

Audio Input

4CH ,Aviation Plug

Audio Output

1CH,Aviation Plug

Compression

G.726 compression, 8KB/s speed

Alarm Input

3Ch Alarm Input, kinds of alarm linkage support

Alarm Output

1CH Alarm Output

Position

Support Built GPS/BD Module

G-Sensor

Support G-sensor

Storage

SD

Dual SD Card,each max 128GB SD Card loop recording

Upgrade

Support SD Card updating

File Format

.H264

File System

Special FAT32 File System

Video Playback

Video Search

Search By Record Time/Record Type etc

Playback

Max support 4CH Replay /Stop/Fast/Slow at same time

Support forward and backward play at the speed of: x 2,x4,x8,x16.

Voltage & Power

Power Management

Wide Voltage.Support Timed/Delay off

Voltage Input

DC:+10V ~ +36V

Voltage Output

+12V~2.5A,+5V~2.5A

Power Consumption

Normal Working <5W

Working Environment

Temperature

-20℃ to +70℃

Humidity

20% to 80%

Security

Password

User/Admin 2 Level Different Password

others

Size

112(W) x36(H) x138(D)  mm

Net Weight

360g

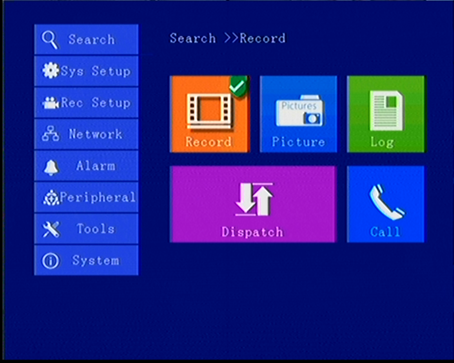

Player software interface







Application

Widely used in passenger car,bus,taxi,school bus,lorry,dangerous vehicle, personal car and ship etc.







Buying Guides



Packaging



1 unit with all standard accessories such as AV Cables/IO Cable/Power Cable/Key etc



  Neutral paper box or Color paper box with Logo Richmor printed,also welcome customized package.









Shipping





Strong cooperated with DHL/UPS Etc for fast and safety delivery.



a. 2-5 days after payment cleared for sample order.

b. 5-10 days after payment cleared depends on order quantity for bulk order.
