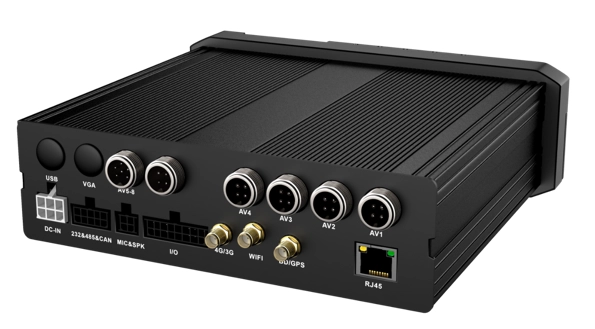

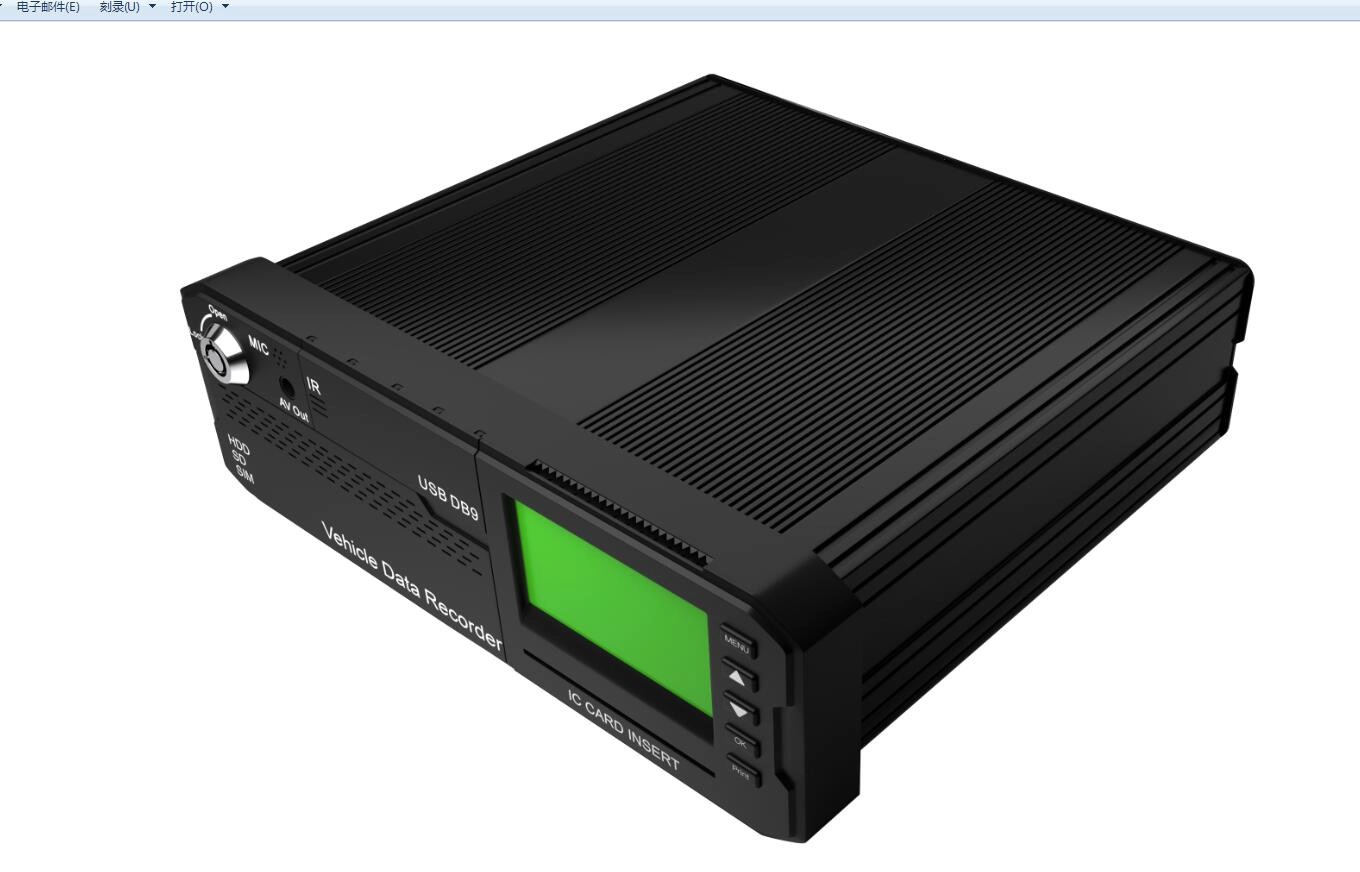

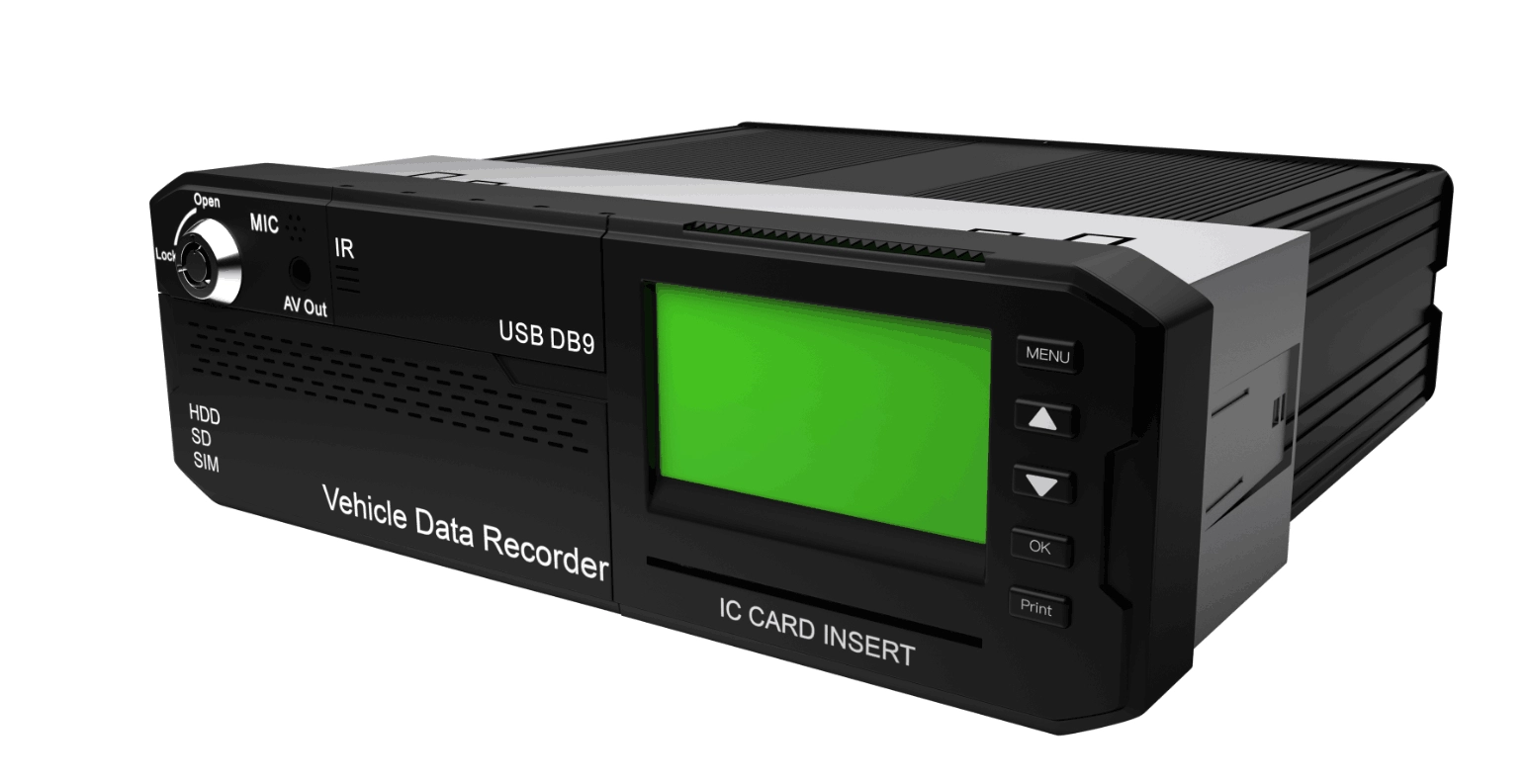

Richmor 4-IN-1 ADAS DSM BSD 8CH FULL HD MDVR for truck taxi bus van logistics

  • OS: Embedded Linux
  • CPU Speed: 1.2GHZ
  • NOR FLASH CAPACITY: 32MB NOR+128M NAND
  • RAM CAPACITY: 1G
  • Video Input: 8 channel AHD HD analog input, aviation connection, 1.0Vp-p, 75Ω
  • Video Output: 2channel composite video output,1.0Vp-p,5 Ω, VGA input (optional), 1 channel / 2 channel / 5/4 picture segmentation / 9/6 picture segmentation
  • Preview: Support single CH /2 CH /4 CH /5 CH /6 CH /8 CH /9 CH splicing preview, support manual/event trigger full-screen display function
  • Resolution: 1080P/720P/D1/HD1/CIF,can be optional, max support 8channel 1080P
  • Image Quality: 0-7 levels, 0 is the highest level, 7 is the lowest level.
  • Recording Mode: Default automatic recording, support ACC Power on、Manual recording、 alarm recording and etc
  • Analog output: 1ch preposition analog output; 1ch postposition analog output(aviation)
  • Input channel: 8CH
  • AGC Control: Automatic
  • Sampling frequency: 8/16K
  • Sampling accuracy: 16
  • Audio output:
  • Interface Type: 4-core 12M-4B aviation connection/4-core 3.5mm headphone connection
  • Output channel: 3channel
  • Mute: support
  • Position :
  • GPS/BD: Supports dual mode positioning
  • Precision: ≤10m(95%)
  • starting time: warm reboot≤5s, cold reboot≤45s
  • repeat positioning : 1s
  • 3G/4G wireless:
  • Module type: TDD-LTE, FDD-LTESupport build-in 4G wireless transmission,TDD-LTE, FDD-LTE
  • protocol: UDP,TCP/IP
  • voice service: HR/FR/EFR和AMR
  • message service: SMS
  • Alarm input: 6CH IO alarm input, 2CH AD input, 2CH pulse speed input; with alarm linkage function
  • Alarm output: 2CH switch output, linkage sound and light alarm, oil cut-off, etc.
  • Communication Interface:
  • 2CH RS232, can be external station announcement, oil sensor, LED advertising screen, etc.
  • 1CH 485 interface, can support PTZ
  • 1CH CAN interface

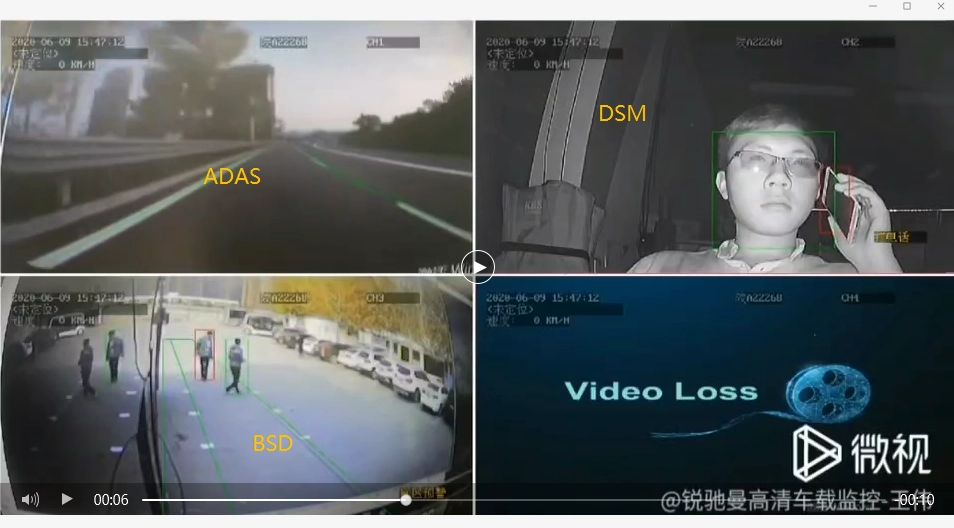

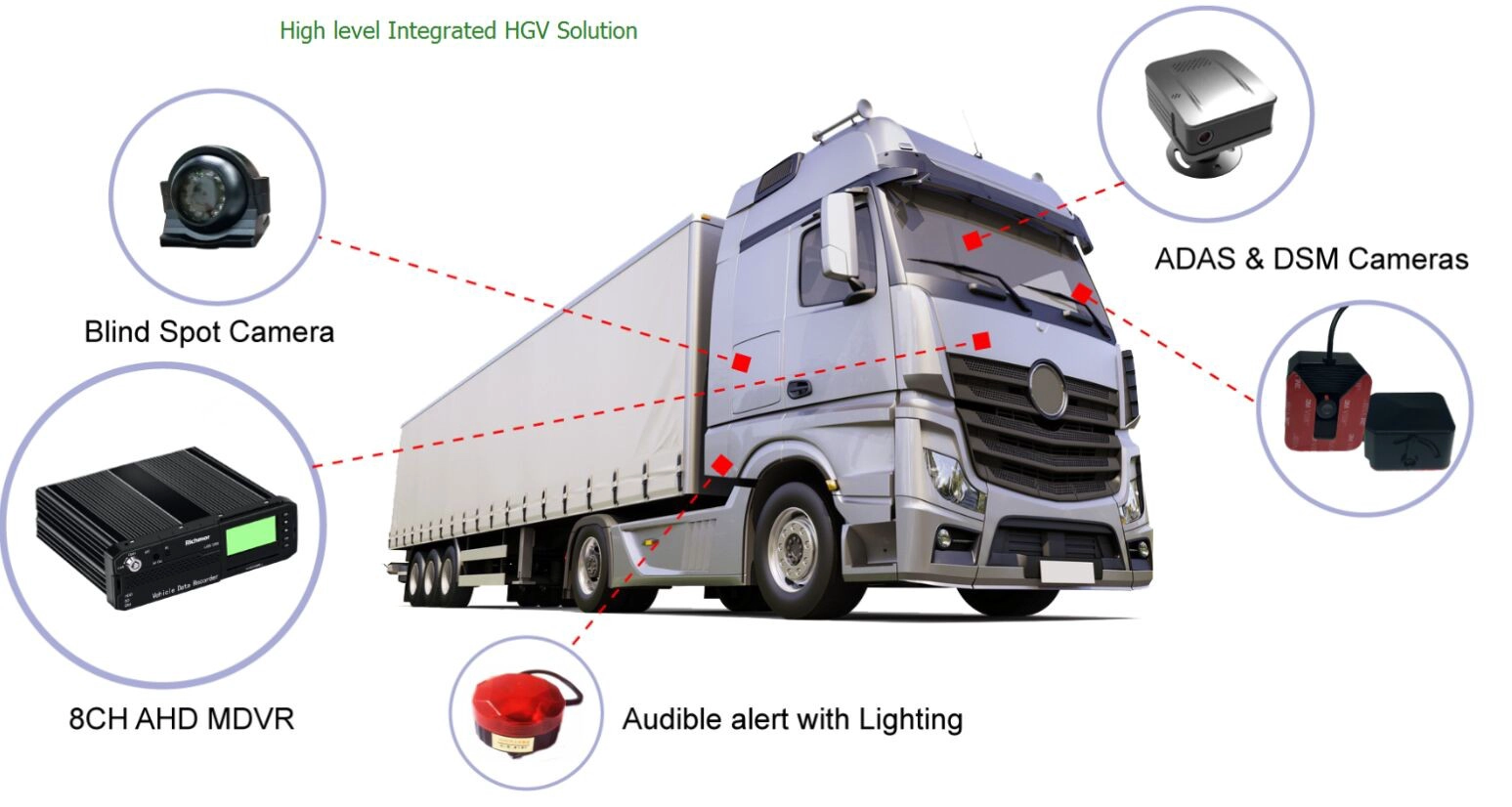

MDVR integrated with *ADAS, *DSM, *BSD function.

The most important is that it integrates AI algorithm into MDVR chipset instead Andoid chipset, which is a leading technology in this field.

With it, this MDVR can adjust to different complicated sitation, have self-learning abtlity and optimize automatically, improve alert accuracy by 60%. Realizes real AI.

*ADAS: advanced driver assistant system (99% efficiency alert of lane departure detection, front vehicle collision detection.... )

*DSM: driver fatigue (99% efficiency driver’s behavior alerts: calling, distraction, smoking, safe belt etc.)

*BSD: blind spot detection algorithm (99% efficiency side view alerts for lateral people, vehicles, bicycles etc.)
