Mobile Video Human Body Temperature Emergency ControlboxMobile Video Human Body Temperature Emergency ControlboxMobile Video Human Body Temperature Emergency Controlbox

Mobile Video Human Body Temperature Emergency Controlbox

  • OS:   Linux
  • Language:   Chinese/English/Others (can be customized)
  • Video Compression:   H.265 Compression Mode
  • OSD:    Overlays information such as date time and vehicle ID
  • Graphical User Interface: Connect to external LED screen. Setup system parameters with the remote control. Setup via Computer directly with WIFI Hotspot.
  • Video Input: 4channels 1080P AHD HD / SD / Mixed Video Input
  • Video Output: 1CH AV output
  • Preview Support: 1/2 channels full screen preview
  • Resolution: Support 1080P/720P/D1/CIF, MAX:2CH 1080P
  • Video Quality: 0-7 levels, 0 is the highest level, 7 is the lowest level.
  • Video Standard:
  • PAL: 100f/s , CCIR625 line,50field;
  • NTSC: 120f/s, CCIR525 line,60field;
  • CIF: 256Kbps ~ 1.5Mbps, multi image quality optional;
  • HD1: 600Kbps ~ 2.5Mbps, multi image quality optional;
  • D1: 800Kbps ~ 3Mbps, multi image quality optional;
  • 720P : 1Mbps~4Mbps, multi image quality optional;
  • 1080P: 800Kbps-6Mbps, multi image quality optional;
  • Record Mode: Auto recording with ACC Power on. Timed recording, alarm recording and manual recording .
  • Audio Input: 2CH ,(1CH built-in , 1CH External)
  • Audio Output: 1 channel
  • Compression: G.726 compression
  • Alarm Input: 4CH level Alarm Input,1CH Alarm output
  • Communication Interface: 1CH RS232 &1 channel RS485
  • Wireless transfer: Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE
  • Position: Support Built GPS/BD Module,can make playback analysis of vehicle routing

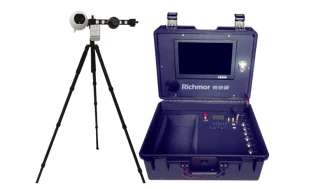

Portable Infrared Temperature Measurement Suitcase
(RCM-EMBI06 Series)


Brief Introduction

The Series supports wide voltage input, support HDD and SD card simultaneously recorded data, with aviation connector, stable and reliable, unique UPS technology, combining advance software & hardware, and take the specification into account. Support 3G /4G WIFI, GPS and mobile phone remotely, various functions. The system integrated infrared temperature measurement Camera for quick, effective fever troubleshoot.

Product Show






Specification

1. Infrared temperature measurement System:
  • Detection object: 10-15targets
  • Audio alarm if any temperature is higher the standard as system setting
  • Response time ≤30MS.
  • Uncooled detector, vanadium oxide uncooled detector,
  • Resolution 160×120。Focal length 6mm,Camera detection distance within 2-6m;
  • Image field Angle:25°×18.7°, Pixel Size:17μm;Band:8~14μm;NETD:≤40mk(@25°C,F#=1.0)
  • Temperature Alarm Distance:mini object(0.1m×0.1m)
  • temperature measurement accuracy: ±0.5℃ without black body;±0.3℃ with black body
  • Support AGC4.0、DDE、3DNR
  • Support White, black heat...over15 mode
  • Starvis 1/2.7 inch CMOS;support 1080P,25fps。
  • IR/Infrared max 15M
  • Support Smart IR, on/off at anti-light overexposure, control fill light according to distance level by Automatic and manual.
  • Thermal Camera Working Temperature: 5℃~40℃,<95% RH
  • Tripod: 28mm full-diameter metal construction, lifting height: 0.62-1.74M. 360 ° panoramic professional damping head, bearing 15KG. With a 0.48M quick release plate, a single tripod can support multiple cameras.
2. Video Recording System:
  • Real-time HD Video Recording, 1080P/720P/D1/HD1/CIF for Optional,Adjustable Frame Rate Quality. Support 8CH/4CH Infrared Temperature measurement cameras, support PTZ.
  • Optional for Mask recognition alert function, or company/group/activities attendance records function
  • Support max 4CH Smart infrared Temperature measurement Cameras, Build in TTS, TTS Alert funtion Public Bus-stop system (Extensible)
  • Support RFID, support Face recognition camera(optional)
  • Basic recording, and live video with temperature reports on monitor screen, TTS alert with any fever case.
  • Local Auto-photo when alarm input,device pictures preview function
  • Support SOS alert.
  • Support 4G/3G, WIFI, GPS Modular (optional), for remote control, live demo, alert reports, data record.
  • Support two-way talk with 4G/3G
  • Support Mobile APP remote control for alarms, live demo
  • Build in 10inch Monitor screen.
  • Build in High capacity Battery, Power working time 10hours, support charging and working
  • Support Hard Disk + SD card Data record storage (maximum support 2TB 2.5’ hard disk and 128GB SD card )
  • Support 2 USB Ports
  • Suitcase Work Temperature:-40℃~80℃,<95% RH
