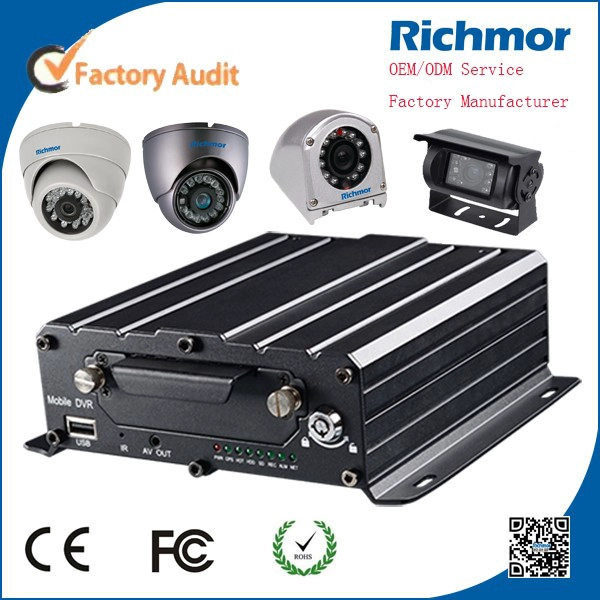

2016 top quality factory price mdvr 3G GPS WIFI and G-sensor full functions Mobile phone view HDD Mobile DVR

2016 top quality factory price mdvr 3G GPS WIFI and G-sensor full functions Mobile phone view HDD Mobile DVR

  • Quick Details
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Richmor/OEM
  • Model Number: Mdvr7008
  • Product Name: Richmor-mdvr7008
  • Professional Power Design for Vehicle: 6~48V Wide Voltage;Over-load/voltage,Short Ciruit,Reverse Protection.
  • Function: Support 3G,GPS,wifi,alarm etc.
  • Special Delay Power off circuit: support systerm continus running after vehicle power off.
  • Resolution: D1/HD1/CIF selectable.
  • System Protection: Saving the recording data when the power off, support hdd upgrading PTZ control: RS232 can turn to PTZ interface
  • monitoring device: PC/Mobile phone
  • signal format: PAL/NTSC
  • record storage: max 2TB HDD& 128GB SD card
 product specifications
Item parameter
Operating System Linux
Language English/chinese/customized
Video Compression H.264 Compression
OSD overlays information such as date time and vehicle ID
GUI Graphical user interface setup system parameters with the remote  control
Video Record System  video input     4CH 960P/720P AHD input,aviation connector, 1.0Vp-p, 75Ω
 video output 1 CVBS, 1.0Vp-p, 75Ω,Aviation,Support 1CH Full Screen,4CH Screen view
preview

Support 1 channel and 4 channels preview.,

Support Manual/Alarm Trigger full screen preview

resolution 720P/D1/HD1/CIF, MAX:4 channels of 720P and 4 channels of D1
image quality 1-4 levels, 1 is the highest level.
video standard

PAL: 100f/s , CCIR625 line,50field;

NTSC: 120f/s, CCIR525 line,60field;

CIF: 256Kbps ~ 1.5Mbps, 8 level video quality optional;

HD1: 600Kbps ~ 2.5Mbps, 8 level video quality optional;

D1: 800Kbps ~ 3Mbps, 8 level video quality optional;

720P: 4Mbps-6Mbps, multi level video quality optional

record mode

The default setting is auto recording after power on.

Timed recording, alarm trigger recording and manual recording are supported.

Audio audio input 4CH Aviation Plug Input
audio output 2CH,headphone connect at front panel, BNC Connect on Back panel
compression G.726 compression, 8KB/s speed
Alarm Input 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
1CH 485 Interface,Connect PTZ Camera

product show
