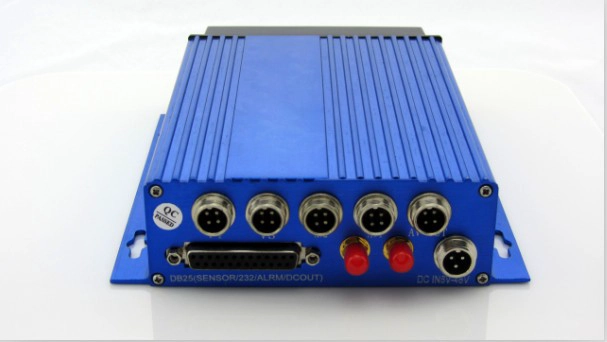

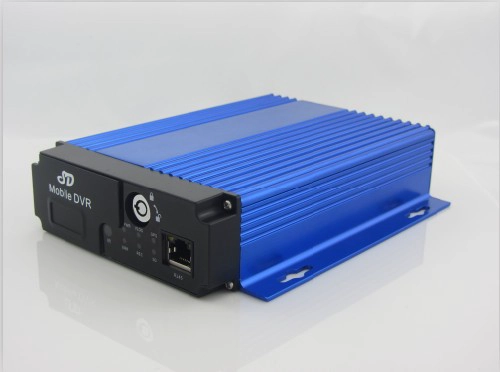

Mobile DVR 4CH 3G GPS Tracking Car Surveillance Solutions DVR

Mobile DVR 4CH 3G GPS Tracking Car Surveillance Solutions DVR

  • 1,Latest New H.264 Video Compression,G.726 Audio Code,4CH Video&2CH Audio.
  • 2,Recording Mode Can be Option CIF/HD1/D1,Frame Quality Can be Adjusted.
  • 3,Professional  Power Design for Vehicle,6~48V Wide Voltage;Over-load,Over-voltage,Short Ciruit,Reverse Protection.
  • 4,All Aviation Connectors,Super Stable,High Anti-shock,Easy installation plug in and out.
  • 5,Support DC12V,DC5V Output,Can offer Power for Cameras  and some Accessories.
  • 6,64GB SD Card Max with Data Redundary Tech,Ensuring Data Stable.
  • 7,Auto Recording,Timing Recording,Alarm(Open/Close door) Recording Mode for Different Request.
  • 8,Powerful file fragmentation removal technology and data protection features,support for  abnormal restart protection function.
  • 9,Special Delay Power off circuit,Which can support the systerm continus running after vehicle power off.
  • 10,4CH Alarm Imput,Local and Remote PTZ Control.
  • 11,Support 3G,GPS,3G Module:WCDMA/CDMA2000/TD-SCDMA...,Compatible with GPRS/EDGE;
  • 12,Free software offered,Support Real-time Live videl,GPS  Location,Sceenshot,Playback,Analysis,Alarm,Log Management.
  • 13,Support Upgrating through SD Card;support phone monitoring Android/IOS.

Overview

Super Wide Voltage,Special UPS Tech,High Capacity SD Card,Many Recording Mode for Option,Support 3G GPS,All Aviation Connectors,4CH  Video+2CH Audio,CIF and D1  Switched Freely,Security Key for SD Card and SIM Card,Support PTZ Controland Mobile  Phone Remote Monitoring.





Item

Parameter
A&V Input

4 channel, aviation   connector
A&V Output

1 channel, aviation   connector
Video compression format

H.264
Resolution

D1/HD1/CIF selectable.

D1-the highest, CIF-the lowest
Video Frame rate

100 fps (PAL),120fps(NTSC),50fps(4*D1)
Recording

Fire recording, time recording, alarm recording
Storage

SD card
Alarm


1CH alarm; alarm and recording at the same time
Vehicle recording

Recording Vehicle operation (turn left/right, stop lamp), license NO. ,route, driver
System Protection

Saving   the recording data  when  the  power  off, support hard disk upgrading
Network

RJ45  Ethernet  interface  and can  copy  the  data through Wired/Wireless networks, controlling  and  managing  the  main machine.
PTZ control

RS232 can turn to PTZ interface
GPS

Support GPS module expansion, recoding and playback the vehicle route
G-SENSOR   module

Support G-Sensor module expansion, recording vehicle direction state and alarm
Battery

Wide Voltage Range. Operation voltage: 6V~48V; Recommend range: 8V-40V; instantaneous range: 6-70V. Support overvoltage protection, under-voltage  protection, short-circuit protection, transposition  protection, fire on/off timing,delay power-off. Output voltage is 12v .
Powder

2.4W
System

Embedded full-time multitask control system, support   Chinese simplified & English
Working environment

Working temperature: -20C°to 50C°,Working humidity: <90%; storage  temperature: -30C to 70C,Storage humidity<90%
Dimensions

180mm*145mm*45mm

Package

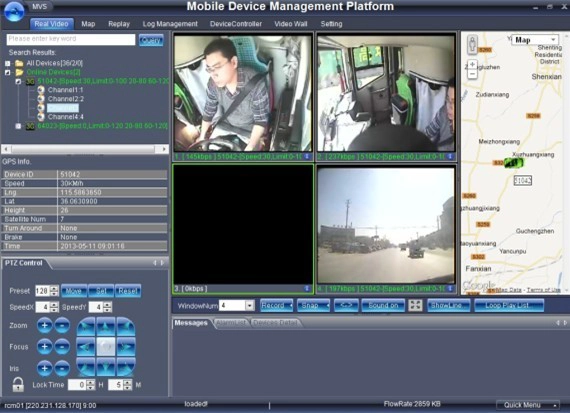

Own Designed Software Screenshot
