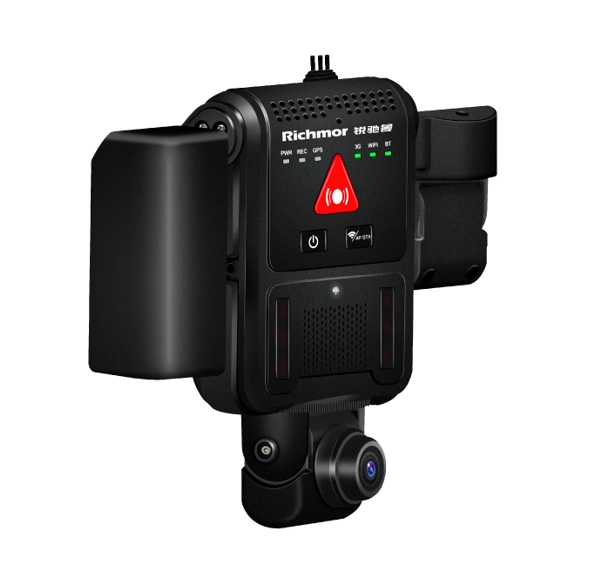

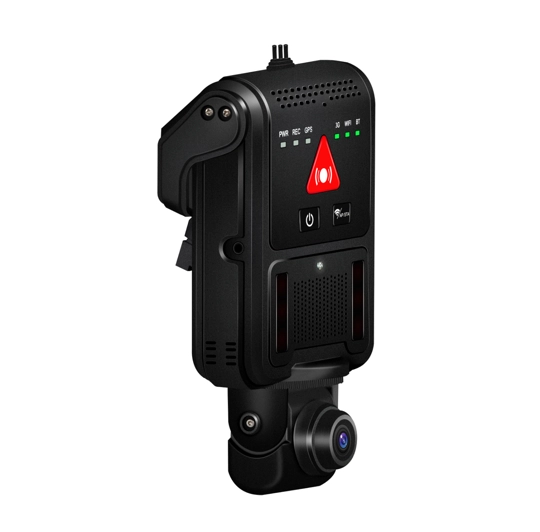

Richmor Mini All-In-One Mobile DVR
- OS: Linux
- Language: Chinese/English/Others (can be customized)
- Video Compression: H.264 Compression Mode
- OSD: Overlays information such as date time and vehicle ID
- Graphical User Interface: Connect to external LED screen. Setup system parameters with the remote control.Setup via Computer directly with WIFI Hotspot.
- Video Input: 2 channels(1 channels built-in ,1Ch External) 1080P AHD HD / SD / Mixed Video Input
- Video Output: 1CH AV output
- Preview: Support 1/2 channels full screen preview
- Resolution: Support 1080P/720P/D1/CIF, MAX:2CH 1080P
- Video Quality: 0-7 levels, 0 is the highest level, 7 is the lowest level.
- Video Standard:
- PAL: 100f/s , CCIR625 line,50field;
- NTSC: 120f/s, CCIR525 line,60field;
- CIF: 256Kbps ~ 1.5Mbps, multi image quality optional;
- HD1: 600Kbps ~ 2.5Mbps, multi image quality optional;
- D1: 800Kbps ~ 3Mbps, multi image quality optional;
- 720P : 1Mbps~4Mbps, multi image quality optional;
- 1080P: 800Kbps-6Mbps, multi image quality optional;
- Record Mode:Auto recording with ACC Power on. Timed recording, alarm recording and manual recording .
- Audio Input: 2CH ,(1CH built-in , 1CH External)
- Audio Output: 1 channel
- Compression: G.726 compression
- Alarm Input: 1CH level Alarm Input
- Communication Interface: 1CH RS232 &1 channel RS485
- Wireless transfer: Support Built-in 3G network, WCDMA,CDMA2000,TD-SCDMA compatible with GPRS,EDGE; Support Built-in 4G network, TTD-LTE, FDD-LTE
- Position: Support Built GPS/BD Module,can make playback analysis of vehicle routing
- Storage: Max support 1X256GB SD Card
- Upgrade: Support USB flash disk updating,SD card upgrade , OTA remote upgrade automatically
- File Format: H.264
- File System: Special Car system File System
- Video Search: Search video by Record Time/Record Type etc
- Playback:
- Max support 2CH Replay /Stop/ Forward/Reverse
- Support x 2,x4,x8,x16. forward or backward play
Main Features:
- The Equipment attached directly to the Front of the Windshield through the 3M Glue. Easy to install and simple operated. The installation time only need one-tenth of the traditional Mobile DVR to complete the installation.
- The Equipment is provided with the high reliability of the thermal design, which can monitor continually during the high degree environment about 70°.
- The whole industrial level program, system design and reliable electromagnetic compatibility design, to ensure stable work itself and the stability of the peripheral electronic equipment.
- The whole structure is designed for anti- tamper and dust-proof, to ensures preventing the SD, SIM card and antenna connectors from destroying.
- The whole module adopts the embedded plug structure. Not only meet the requirements of convenient dis-assembly , but also the conditions of vehicle vibration.
- Support IE browser preview and PAD or phone APP real-time preview function(Extensible)

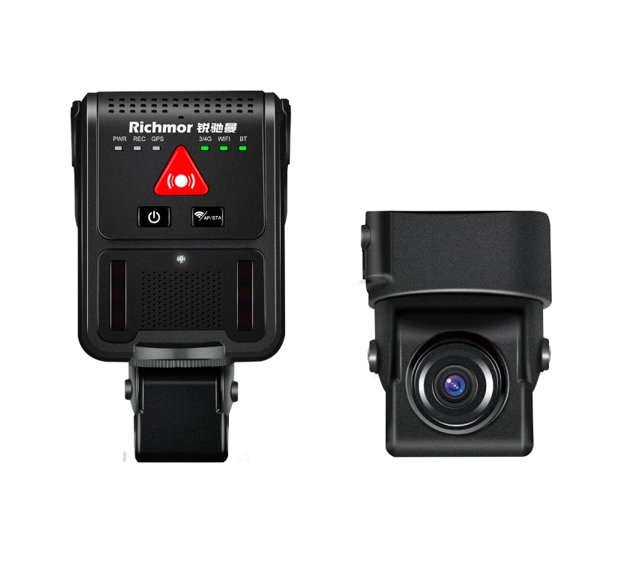

- The Equipment integrated one 1080/720p Camera. Meanwhile, it can be expanded to other 3 three 1080P AHD Cameras(2.3 and 4 Channels).
- Integrated infrared light for internal can achieve High definition surveillance under the condition without light.
- The viewing angle of 1CH camera built in can be adjusted flexibly. the camera can achieve a vertical horizontal direction of all-round monitoring angle adjustment according to the monitoring angle requirements of different types of vehicle(can be locked completely through its structure after adjustment finished, the monitoring angle of view can’t be changed.
- Integrated Microphone (Inside Car Audio Record)
- Integrated Speaker (Audio Broadcast and Early Warning)
- Carry 6 Status Indication Light (Survey Equipment Work status)
- Integrated One Alarm Button, One On-off Button and One WIFI Toggle Button(AP and Station mode by hand)
- Build-in Bluetooth module for optional (support wireless alarming and capture by wireless Bluetooth button, headset Intercom and telephone function)
- Build-in WIFI for optional(Achieved automatic uploading and smart phone connection function. The AP function achieve 5 external devices shared internet
- Build-in GPS module and antenna (Achieved Management of Car Speed and route)
- Support Alarming Functions for the deviation of the routes and the entrance and the exit of an area. Support 16 routes and areas
- Integrated 3G/4G Module (Achieved Remote Audio and Video Transmission and Management
- Build-in G-sensor Module (Achieved automatic alarming upload about Abnormal Vibration, Overturning, Impact and Emergency Brake)
