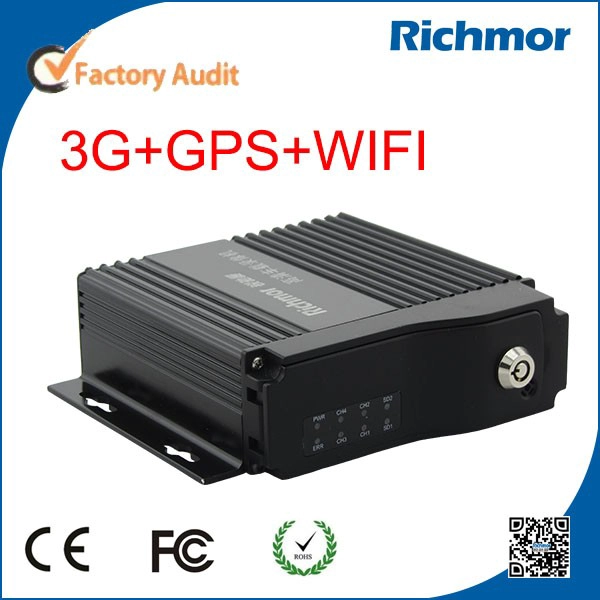

H.264 4CH WIFI G-Sensor GPS 3G/4G mobile DVR for vehicle

•
• Timed recording, alarm trigger recording and manual recording are supported.
• Audio audio input 4CH Aviation Plug Input
• audio output 2CH,headphone connect at front panel, BNC Connect on Back panel
• compression G.726 compression, 8KB/s speed
• Alarm Input 7CH Alarm Input,1CH AD Input,impulse speed input,Alarm Linkage
• Alarm Output 2CH Alarm Output,Support Light/Sound alarm sensor,Oil/Power cut off
• Interface 3CH RS232, POS/Fuel Sensor/LED Advertisement Connection
• 1CH 485 Interface,Connect PTZ Camera
• Wireless Transmission
• Support Built in 3G transmission,, WCDMA, CDMA2000,GPRS, EDGE;
• Built in 4G module optional, TDD-LTE, FDD-LTE
• GPS Position Support Built GPS/BD Module
• Storage HDD Max 2.5” 1TB HDD
• SD Card Max 128GB SD Card Mirror Recording Keep Data Safety
• update Support USB Updating, SD Card Updating,OTA Remote Updating
• file format H.264
• file system Special FAT32 File System
• USB USB Interface on Front Panel for data back up by U Disk,Hard Disk
• Record Replay video search Search By Record Time/Record Type etc
• playback Max support 4CH Replay /Stop/Fast/Slow at same time
• Support forward and backward play at the speed of: x 2,x4,x8,x16.
•                  Security User/Admin 2 Level Different Password
• Optional Functions voice call Support voice call each other
• TTS Voice broadcast Support TTS voice broadcast function.
• serial expand
• Support LED Advertisement Panel,Oil Sensor,
• POS,Bus Station Broadcaster,Car OBD,ect.external device
• Voltage & Power Power Management Wide Voltage.Support Timed/Delay off
• Input Voltage DC:+6V - +36V
• Output Voltage +12V~1.5A,+5V~1.5A
• Power Working<5W
• Working Environment Temperature -20℃ - +70℃
• Humidity 20% - 80%
• Others Size 200 (D)* 187(W)* 62(H) mm
• Weight 1.90Kg
